Description
此多功能代表單元可滿足即使是最大型會議的需求。它提供發言、登記發言請求、聆聽、投票、選擇語言頻道及 IC 卡簽到等功能。優異的抵抗手機射頻干擾能力。4.3 吋觸控螢幕可顯示發言列表、簽到與投票資訊、頻道編號與語言名稱、操作選單等。頻道選擇會自動限制於可用的語言頻道數量範圍內。揚聲器提供卓越的音響效果，並將回授降至最低，從而提升語音清晰度。
功能特點
- 優雅且符合人體工學的設計
- 精巧細緻的桌面設計，便於使用與攜帶
- 線材由底座引出，使佈線更加整潔
- Hi-Fi 高傳真揚聲器
- 5 鍵投票按鍵
- 精緻流暢的 4.3 吋觸控螢幕，用於顯示會議進程資訊
- 支援自訂開機畫面與背景圖片
- 「閉環菊花鏈」連接拓撲
- 直觀的語言列表與音量控制，可在螢幕上快速切換頻道與調整音量
- 透過專用 8 芯纜線傳輸多達 64 通道高品質數位音訊訊號
- 支援 48 kHz 音訊取樣率，全部 64 通道完美重現 20 Hz 至 20 kHz 音頻
- 優異的抵抗手機射頻干擾能力
- 每個麥克風的增益與等化器（5 段）可單獨調整，達到完美音質
- 支援「PnP」隨插即用
- 內建非接觸式 IC 卡讀卡器
- 所有實體按鍵均設有點字
功能
符合 ISO 22259 標準
「閉環菊花鏈」連接拓撲，實現高系統運作可靠性：單一會議單元故障或更換、纜線連接中斷，均不影響其他會議單元
基於 TAIDEN MCA-STREAM 2.0 數位音頻處理與傳輸技術
採用專屬 MCA-STREAM 2.0 技術，在會議單元之間以及會議單元與主機之間傳輸全數位音頻
音頻訊號由高效能 DSP 處理：音質接近 CD 品質
每個麥克風的增益與等化器（5 段）可單獨調整，適應不同發言者的聲音特性，隨時實現完美拾音
透過專用 8 芯纜線（可使用帶接地線的通用 cat5e 纜線替代）傳輸多達 64 通道高品質數位音頻訊號
支援多達 64（1+63）通道的同聲傳譯
支援 48 kHz 音頻取樣，全部 64 通道完美重現 20 Hz 至 20 kHz 音頻
直觀的語言列表與音量控制，可在螢幕上快速切換頻道與調整音量
整合式高通濾波器（低切開關），可於需要時切除音頻中的低頻成分
自動系統恢復與「PnP」隨插即用功能
配備 5PIN 麥克風插座，鵝頸麥克風需另購，適用於 MS5* 及 MS**E 型鵝頸麥克風
休會期間可拔除鵝頸麥克風，便於維護
Hi-Fi 高傳真揚聲器，回授極低，麥克風啟動時自動靜音
優異的抵抗手機及類似設備射頻干擾能力
麥克風開/關按鍵，5 鍵投票按鍵
每個會議單元擁有唯一序號，可預設或手動指派 ID，便於維護管理
無需電腦即可獨立運作的功能：
設定允許同時發言的代表人數
發言模式：開放/覆蓋/語音/申請/按鍵發話
「開放」模式：麥克風開/關按鍵搭配發言申請登記（自動）
「覆蓋」模式：麥克風開/關按鍵控制，可覆蓋已啟動的麥克風（先進先出）
「語音」模式：聲控靈敏度與自動關閉時間可連續調整，內建「瞬間啟動」技術，發言時立即啟動麥克風
「申請」模式：代表按壓麥克風開/關按鍵申請發言，需經操作員或主席批准後方可發言
「按鍵發話」模式：按住麥克風開/關按鍵即可發言
同聲傳譯
搭配相應軟體可實現多種投票功能
按鍵簽到、非接觸式 IC 卡簽到
內建非接觸式 IC 卡插槽，可放置 IC 卡，卡片取出時自動登出
所有實體按鍵均設有點字
搭配攝影機及視訊切換器時可實現自動視訊追蹤；可於電腦上預設拍攝位置
可將任一代表單元設為 VIP 單元
只要已啟動的麥克風總數不超過 8 支（含主席/代表/VIP 單元），VIP 單元即可啟動發言

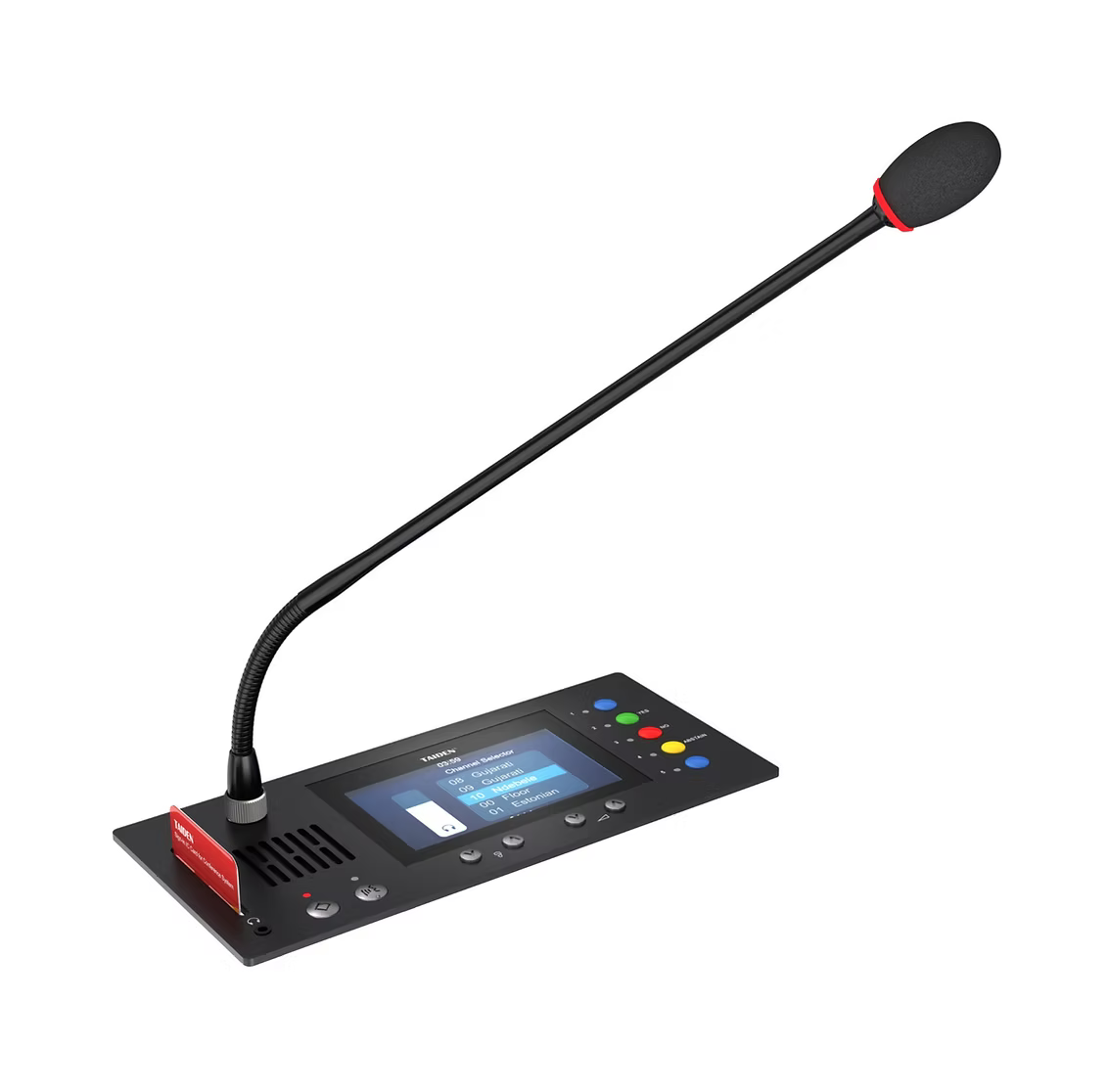

The multi-functional delegate unit meets the demands of even the largest conferences. It provides facilities for speaking, registering a request-to-speak, listening, voting, selecting language channels and IC-Card sign-in. Excellent immunity to RF interference from mobile phones. A 4.3″ touch screen can display speaking list, sign-in and voting information, channel number and language name, operation menu, etc. Channel selection is automatically limited to the number of language channels available. The loudspeaker offers superior acoustics with minimal feedback for enhanced intelligibility.
Features
- Elegant and ergonomic design
- Exquisite and delicate tabletop design for ease of use and transport
- Cable coming out of the base for a tidier wiring
- Hi-Fi loudspeaker
- 5 voting keys
- Exquisite and sleek 4.3″ touch screen for information display of meeting proceedings
- Supports custom boot screen and background picture
- “Closed Loop – Daisy Chain” connection topology
- Intuitive language list and volume control for quick channel switch and volume adjustment on the screen
- Transmitting up to 64 CHs high quality digital audio signals on a dedicated 8-pin cable
- Supporting 48 kHz audio sampling rate, all 64 channels perfectly reproducing audio frequencies between 20 Hz and 20 kHz
- Excellent immunity to RF interference from mobile phones
- Separate adjustment of gain and EQ (5 band) of each microphone for the perfect sound
- Supporting “PnP” (plug and play)
- Built-in contactless IC-Card reader
- Braille is present for all physical buttons
Functions
Compliant to ISO 22259
“Closed Loop – Daisy Chain” connection topology for a high operational system reliability: breakdown or replacement of a congress unit and connection failure of a cable will not influence other congress units
Based on TAIDEN MCA-STREAM 2.0 digital audio processing and transmitting technologies
Proprietary MCA-STREAM 2.0 technology used to transmit fully digital audio between the congress units as well as between congress units and main unit(s)
Audio signals processed by high performance DSP: sound quality approaching CD quality
Gain and EQ (5 band) of each microphone adjustable separately, fitting the individual orator’s voice to achieve perfect speech pickup any time
Transmitting up to 64 CHs high quality digital audio signals on a dedicated 8-pin cable (general cat5e cable with a drain wire substitutable)
Supports up to 64 (1+63) CHs simultaneous interpretation
Supports 48 kHz audio sampling, and all 64 channels perfectly reproducing audio frequencies between 20 Hz and 20 kHz
Intuitive language list and volume control for quick channel switch and volume adjustment on the screen
Integrated high-pass filter (low-cut switch) to cut low frequency elements from the audio when needed
Automatic system recovery and “PnP” (plug and play)
Equipped with 5PIN microphone socket, stem microphone ordered separately, suitable for MS5* and MS**E type stem microphone
Stem microphone can be unplugged during adjournment, easy to maintain
Hi-Fi loudspeaker, minimal feedback, mutes automatically when microphone is active
Excellent immunity to RF interference from mobile phones and comparable devices
Microphone On/Off button, 5 voting keys
An ID can be assigned by default or manually to each conference unit bearing a unique serial number for convenient maintenance
Facilities in independent operation from computer:
Set the number of delegates permitted to speak at the same time
Speak mode: Open/Override/Voice/Request/PTT
“Open” mode, microphone On/Off button with request-to-speak registration (AUTO)
“Override” mode, microphone On/Off button control with override of the active microphones (FIFO)
“Voice” mode, acoustic active sensitivity and automatic switch-off time adjustable continuously, built-in “flash-on” technology, immediate microphone activation on speaking
“Request” mode, delegate requests to speak by pressing microphone On/Off button, delegate only speaks when operator or chairman approved his application
“PTT” mode, press microphone On/Off button to talk
Simultaneous interpretation
Multiform voting function can be implemented in combination with the corresponding software
Key-press sign-in, contactless IC-Card sign-in
Built-in contactless IC-Card slot to place the IC card, while automatically logout once the card is taken out from the slot
Braille is present for all physical buttons
Automatic video tracking implementation when cooperating with cameras & video switcher unit; preset positions on PC
Set any delegate unit to be VIP unit
VIP unit can be activated as long as the total of active microphones is not beyond 8 (incl. chairman/delegate/VIP unit)
