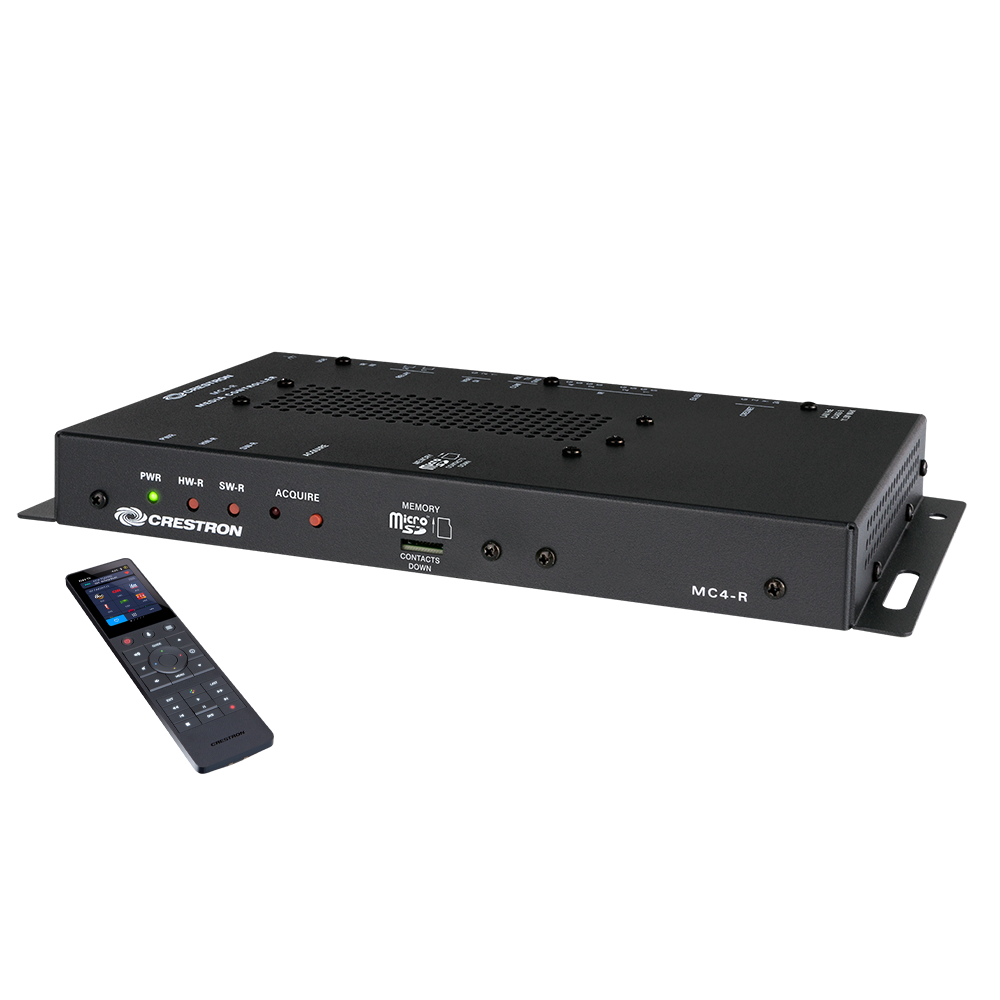

Crestron MC4-R-TSR

4-Series Control System for Crestron Home™ OS with TSR-310

Provides a MC4‑R control processor and interface for use with Crestron Home™ OS. A small form factor and low profile installation make it perfect for use in single‑room systems, small to medium‑sized homes, and MDUs (multidwelling units). A TSR‑310 handheld touch screen remote is also provided for system control.

Handheld Touch Screen Remote

An elegant, ergonomic, and rugged handheld remote with 3 in. color touch screen, backlit buttons, voice control capability, and enhanced Wi-Fi® wireless communications. Movement sensing wakes the remote the instant it’s picked up so it’s always ready to use.

Description

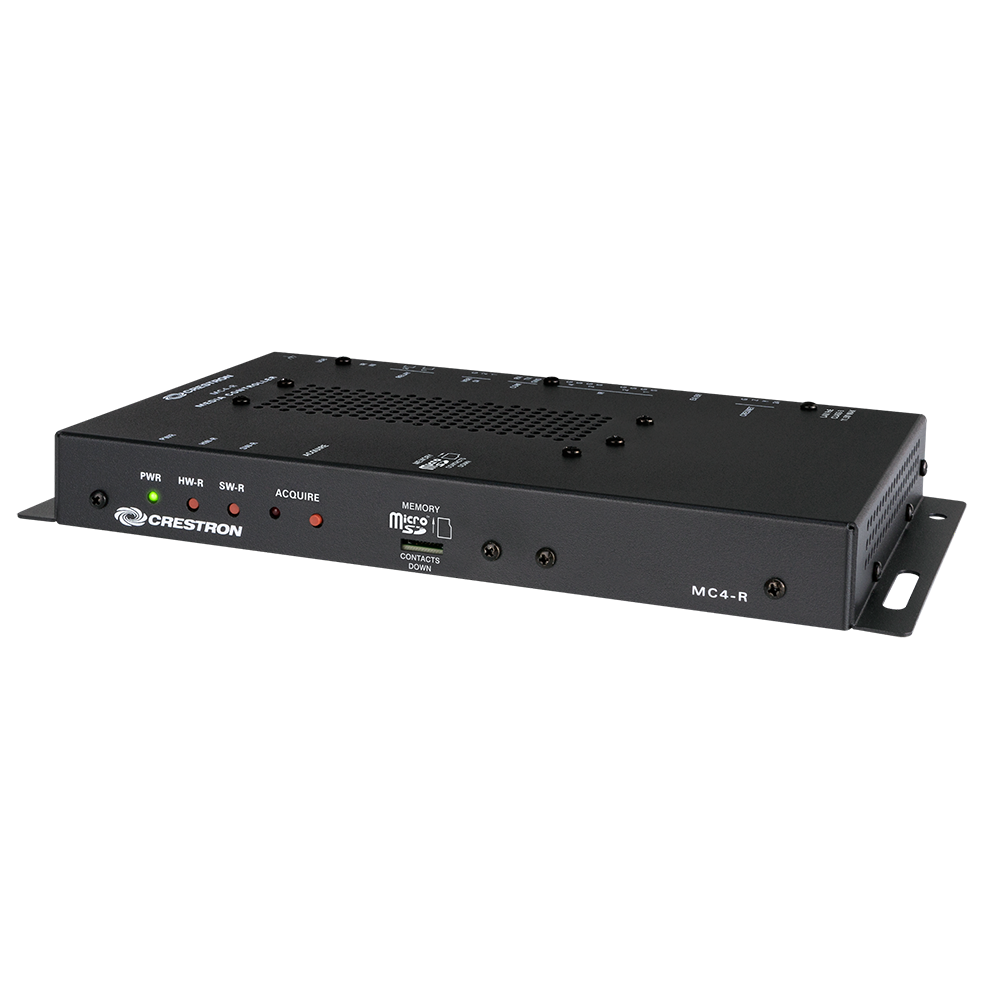

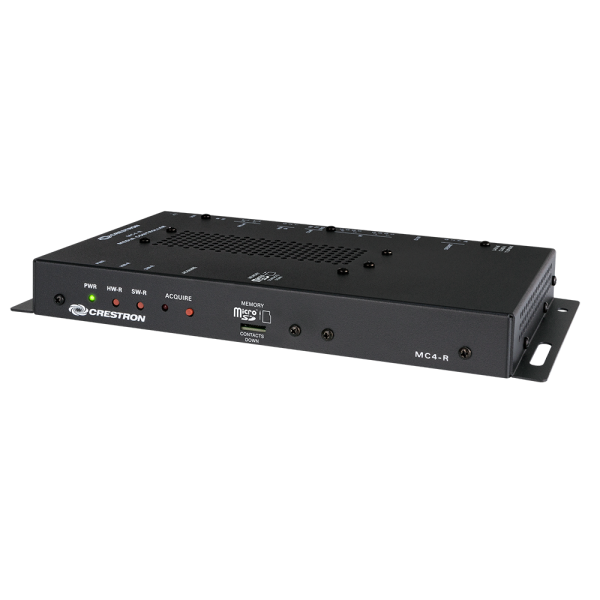

The 4-Series Control System for Crestron Home™ OS (MC4‑R) provides a secure, high‑performance, cost-effective control system with the embedded Crestron Home operating system. Its small form factor and versatile mounting options makes it ideal for smaller Crestron Home systems such as single-room systems, small to medium-sized homes, and MDUs (multidwelling units). The MC4‑R comes equipped with a 4‑Series multicore CPU processor that delivers remarkable speed and performance while handling the demands of an advanced automated system.

The MC4‑R is a perfect replacement for a PYNG-HUB processor when upgrading a smaller system from Crestron Pyng® OS to Crestron Home.

Key Features
  • Compact 4‑Series control system designed exclusively for Crestron Home™ OS
  • 1 GB SDRAM and 8 GB Flash Memory
  • 4‑Series multicore CPU processor delivers remarkable speed and performance
  • Communicates with the Crestron Home Setup App for system configuration and the Crestron Home App for system control
  • Ideal for single-room solutions, small to medium-sized homes, and MDUs (multidwelling units)
  • Capable of handling systems with hundreds of devices
  • Integrates control and monitoring of audio, video, lighting, shades, thermostats, door locks, sensors, and other devices
  • Includes built‑in IR, COM, I/O, relay, Cresnet® network, and high‑speed gigabit Ethernet control ports
  • Built-in infiNET EX® wireless network gateway
  • Native BACnet™ network/IP support
  • Enterprise‑class network security
  • PoE (Power over Ethernet) powered
  • Rack or surface mountable

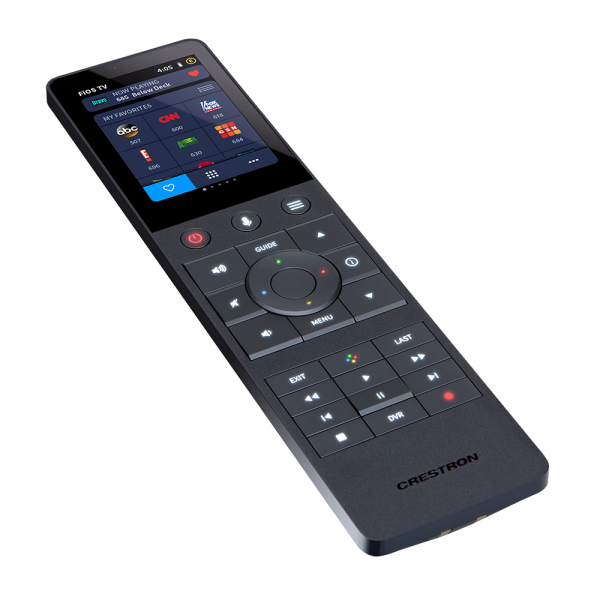

The Crestron® TSR-310 Handheld Touch Screen Remote is an elegant, customizable wireless controller designed for use in home theaters, bedrooms, hotel rooms, boardrooms, and many other applications. Ruggedized for durability, the TSR-310 offers exceptional comfort and ergonomics for hours of one-handed use. Its backlit buttons provide positive tactile response and clear visibility under all lighting conditions. Its high-resolution 3 in. (76 mm) capacitive touch screen affords completely customizable control over audio, video, lighting, shades, climate, security, and other amenities. Built-in Voice Recognition allows many functions to be executed using spoken commands. Dependable wireless performance is ensured using enhanced Wi-Fi® technology. A space-saving tabletop dock is included for charging the remote.

Key Features
  • Customizable handheld wireless remote
  • Elegant, ergonomic, and rugged design
  • 3 in. (76 mm) HVGA capacitive color touch screen with Smart Graphics® technology
  • Backlit buttons for AV/DVR control and OSM navigation
  • 5-way navigation pad changes colors when accessing the four-color buttons mode
  • Preprogrammed graphical interface for controlling a Crestron Pyng® OS 2 system
  • Voice recognition executes functions using spoken commands [2]
  • Fully programmable functionality via a Crestron® control system [1]
  • Advanced, high-performance Wi-Fi® wireless communications [3]
  • Movement sensor wakes the remote when picked up
  • Instant-Waking® technology executes button presses without picking up the remote
  • Auto-brightness control maintains optimal visibility
  • Setup and diagnostics via touch screen or web browser
  • Li-Polymer rechargeable battery
  • Space-saving table dock charger
