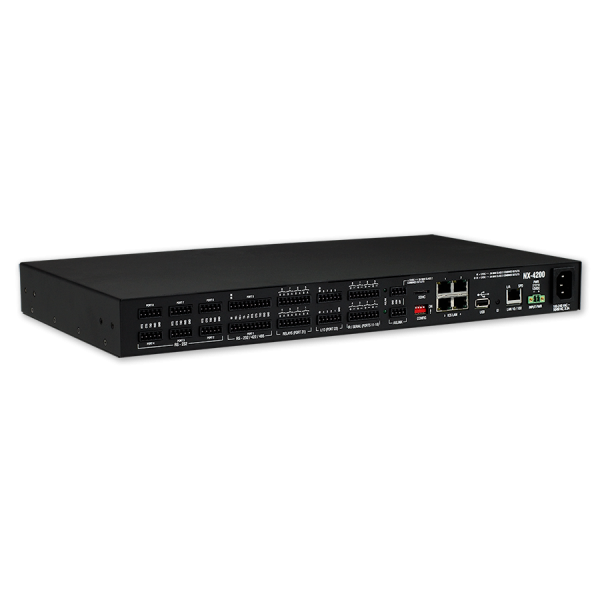

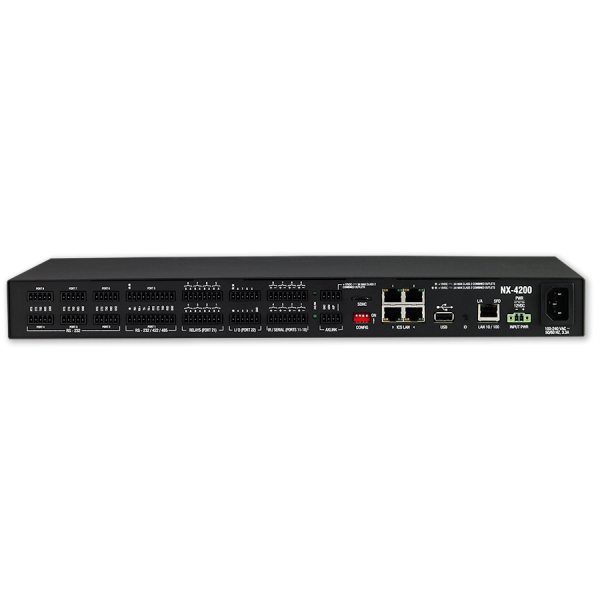

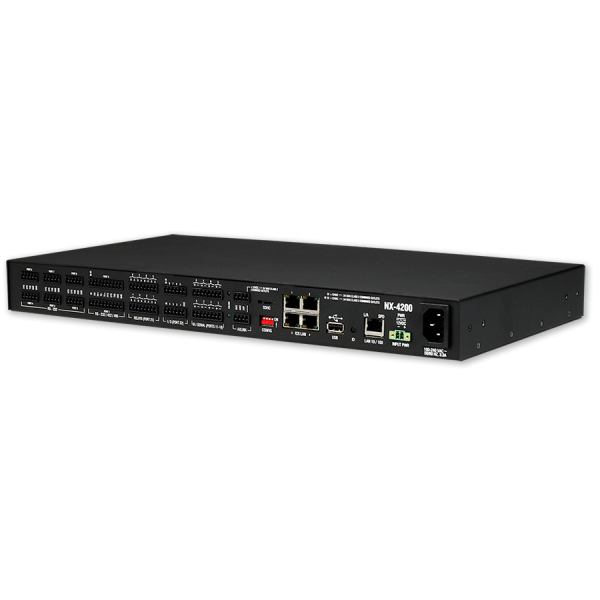

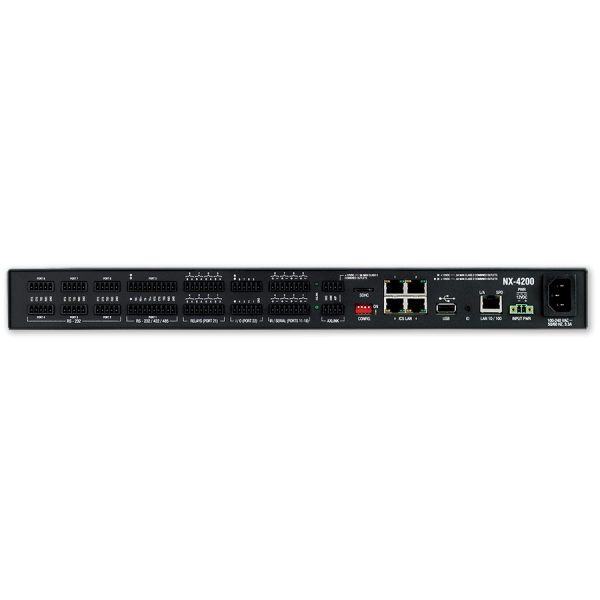

AMX NX-4200 NetLinx NX Integrated Controller

The NX-4200 / NetLinx® NX Integrated Controller is a programmable network appliance specifically designed to control AV and building technology using multiple analog and digital formats. The NX-4200 provides a scalable platform for the future by combining high performance, backward compatibility and extensive network security features. With its front panel display, built-in Ethernet switch and PoE capability, the NX-4200 is the ideal solution for demanding, technology-rich environments. The NX-4200’s all-in-one architecture also delivers the lowest Total Cost of Ownership in the industry, thanks to ease of support, maintenance and configuration, as well as reduced hardware and cabling costs.

Categories: , Tag:

Description

Common Applications

  • NX Master Security firmware is ideal for enterprise, education, and government policies requiring secure communication over a computer network in line with security standards expected by the IT industry of any equipment running on an enterprise
  • The NX-4200 is geared to meet the high-end control and automation requirements of the most sophisticated and complex business, educational and residential installations. With its generous number of ports, security features and Ethernet switching options, the NX-4200 is ideal for any large installation requiring stringent security measures.
  • With redundant power, built in Ethernet switch and enhanced security features like Dual NIC with POE, the NX-4200 provides versatility with the ability to integrate the largest number of devices in the NX Series of Integrated Controllers, including projectors, lighting, DVD and Blu-ray players, thermostats and other electronic equipment.

Features

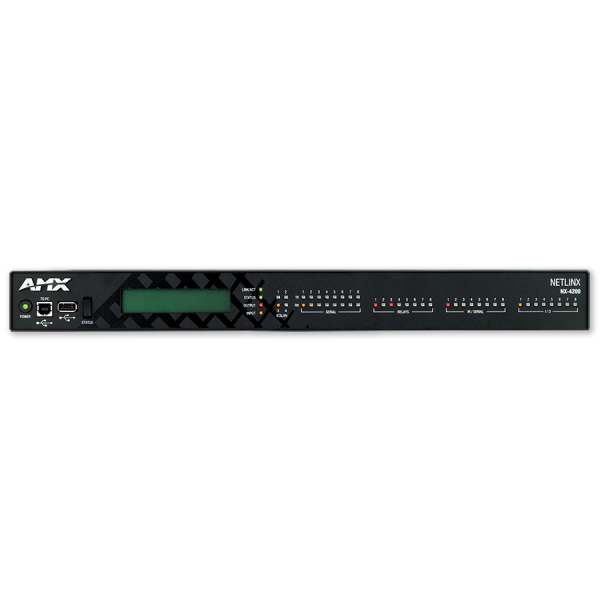

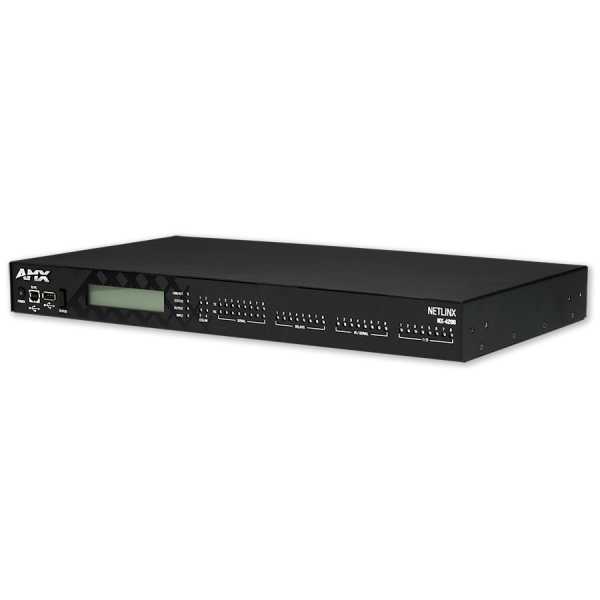

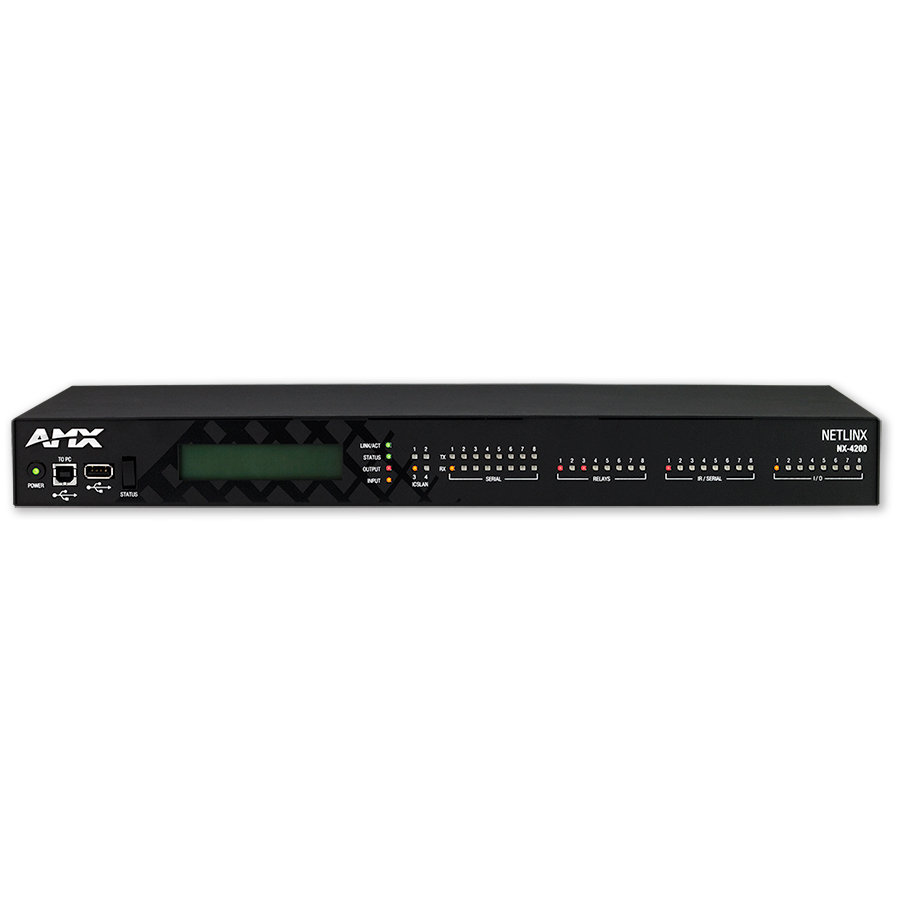

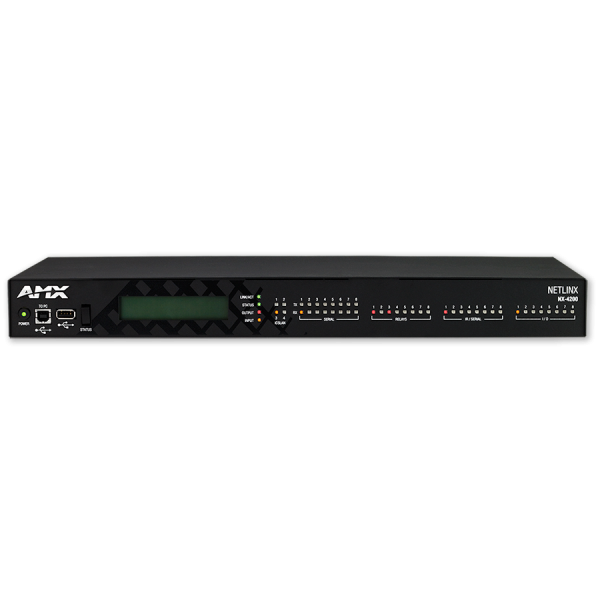

  • Front Panel Display – Features an LCD display on the front panel, making it easy to view status information, network settings, IP addresses & ICSLan Port status, among others
  • Redundant Power Source – The NX-4200 can be powered either with a connection to mains AC power (110/220VAC) or from an external 12V DC power supply. If the AC input power is lost or if the internal power supply fails, the NX-4200 will immediately switch to the 12V DC power input without interruption except to PoE devices on the ICSLan
  • Dual NIC with Power – Enables two discrete network interfaces for unrivaled security and includes a 4 Port switch with PoE allowing you to power PoE devices over a secure, isolated network. The LAN port is used to connect the master to an external network, and the ICSLAN ports connect to AMX or third-party A/V equipment isolated from the primary network
  • IPv6 – Supports Internet Protocol version 6 (IPv6), the communications protocol that provides an identification and location system for computers on networks and routes traffic across the Internet
  • IEEE 802.1X – Supports IEEE Standard for Port-based Network Access Control with the ability to grant or deny network access to devices wishing to attach to a LAN based on credentials tied to the device rather than to a user
  • X.509 Certificate Services – NX supports customer-provided certificates for access to protected networks
  • Full LDAP Integration – Supports multiple user-defined login groups for accessing the master, as well as provides an AMX programmer the capability to require network login to access certain areas of the touch panel
  • High Performance Architecture, Flexible Programming Platform (RPM, NetLinx and Java) – Easily scalable to support a wide range of applications for today and tomorrow
  • Full Line Compatible (Backwards and Cross-Compatibility) – Standardized port numbers and new configuration import/export tools mean fewer coding changes
  • TLS / SSH Client – Provides NetLinx programmers the ability to manage secure port TLS and SSH communications with a remote device or server
  • Cryptographic Support – In accordance with FIPS 140-2, a U.S. government computer security standard used to accredit cryptographic modules for the protection of sensitive or valuable data
  • Network Syslog – Supports standard device logging to a syslog server
  • Enhanced Diagnostics On Serial and IR Ports – Provides real time error feedback when Serial and IR ports are disconnected or improperly wired
  • File Import / Export From USB Drive – Backup and restore configuration data, program files, and update firmware from a standard USB flash drive
  • Ultra-Fast 1600 MIPS processor
  • 1 GB Onboard RAM
  • 1 M Non-Volatile Memory
  • 8 GB SDHC FLASH Memory
  • 1 RU
  • 2 AXLink Interface
  • 1 10/100 LAN Interface
  • 4 10/100 ICSLan Interfaces with PoE
  • 4 PoE Interfaces
  • 8 Digital I/O Ports
  • 2 RS232/422/485 Ports
  • 6 RS232-Only Ports
  • 8 IR/Serial Output Ports
  • 8 Relay Ports
