Description

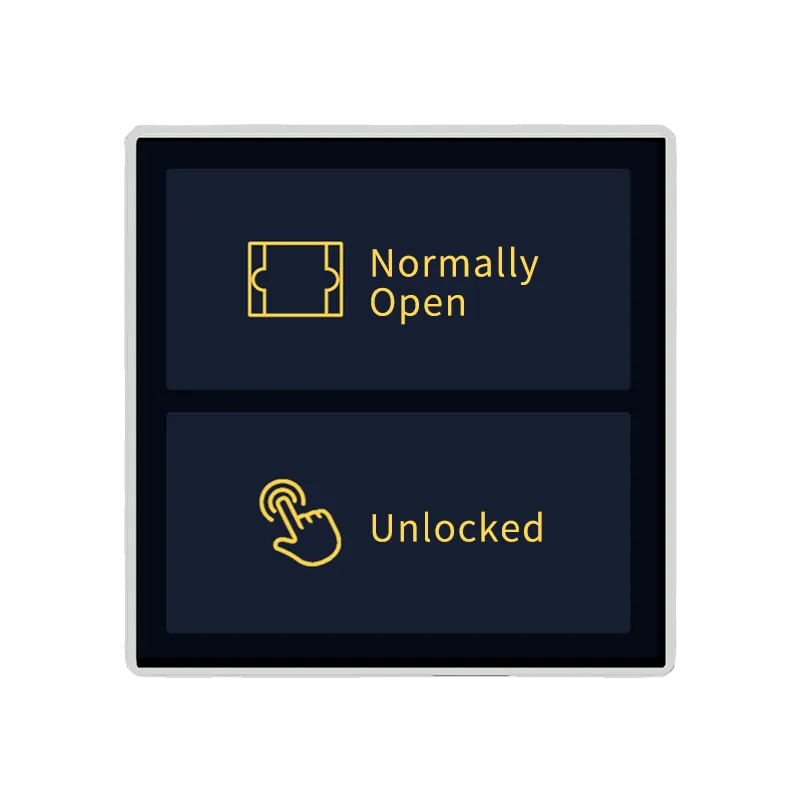

- Standard 86-type panel mounting, equipped with a 4-inch capacitive touch screen, screen resolution 480×480; external power supply through DC12V; with 1-way 12V power control interface, 1-way OPENGND interface, 1 mircoSD card interface, 1-way 3.3V level GPIO interface; built-in 2.4G wireless communication module.
- Equipped with 2.4G wireless communication protocol, support status return, can access the same brand IOT off. Support normally open/normally closed control of the door lock, remote control of the door lock system through the platform and small program.

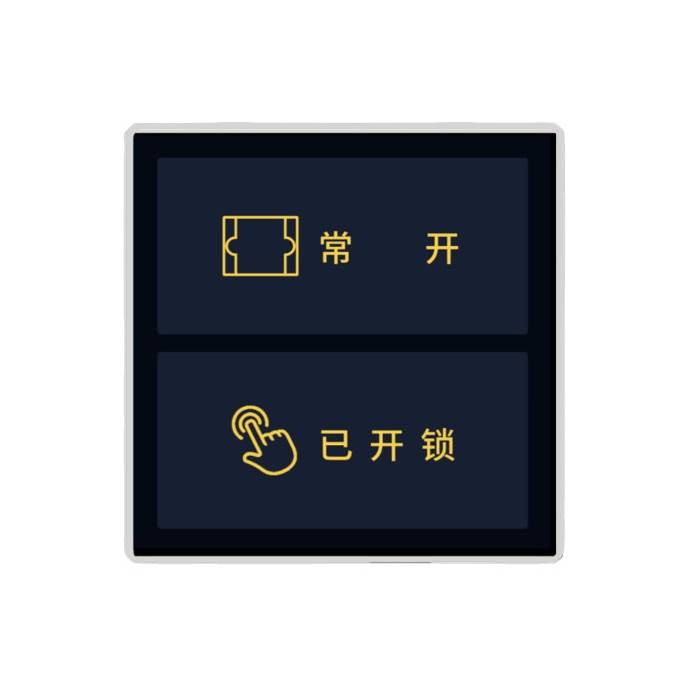

- 標準86型面板安裝，配備4英寸電容式觸摸屏，屏幕分辨率480×480；通過DC12V外接電源供電；具備1路12V電源控制接口、1路OPENGND接口、1個microSD卡接口、1路3.3V電平GPIO接口；內置2.4G無線通信模組。
- 搭載2.4G無線通信協議，支援狀態回傳，可接入同品牌物聯網網關。支援門鎖的常開/常閉控制，可通過平台及小程序遠程控制門鎖系統。
| Parameter | Specification |
|---|---|
| Installation | Standard 86 type panel |
| Screen type | Capacitive |
| Screen size | 4 inches |
| Screen resolution | 480×480 |
| 12V power control interface | 1 way |
| OPENGND interface | 1 way |
| MircoSD card interface | 1 way |
| 3.3V level GPIO interface | 2 way |
| 2.4G wireless communication module | Yes |
| Door lock opening and closing control | Supported |
| Remote control mode | Platform, small program |
