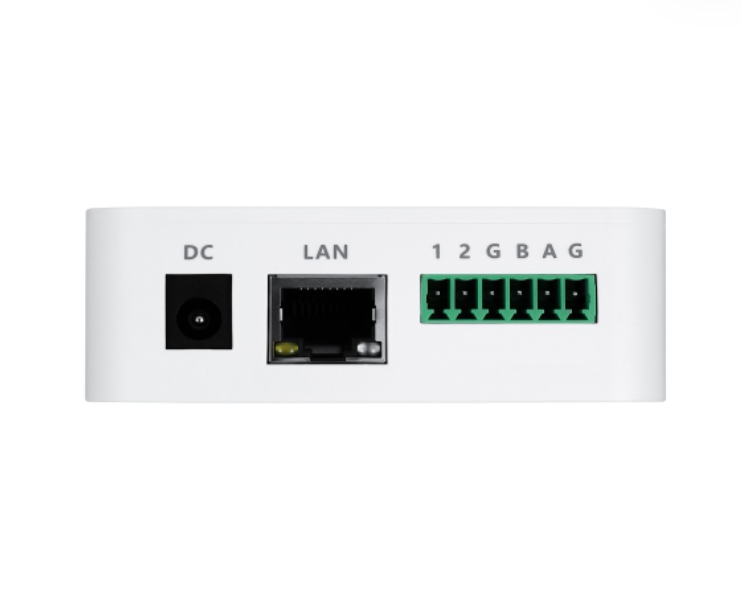

iDste KC-100

2.4G IoT Gateway

Key Features:

  • Lighting, air conditioning for IOT management
  • Support RS485 sensor device access
  • Support IO signal detection
  • Control of electricity equipment in classrooms, offices, lecture halls, dormitories, hallways, outdoor areas, etc.

主要功能:

  • 具備物聯網管理功能,可控制照明、空調等設備。

  • 支援 RS485 感測器設備接入。

  • 支援 IO 信號偵測。

  • 可應用於教室、辦公室、講堂、宿舍、走廊、戶外區域等場所的電器設備控制。

Description

  • With IOT access function, support access to the maximum 30-way 2.4G wireless IOT module, support with RS485 communication module access.
  • Support system platform and applet remote control, IOT module can be manually, timed centralised control management (such as lighting power on and off, curtain on and off, air conditioning switch mode switching, etc.).
  • Support to call the classroom monitoring screen through the system platform, to achieve monitoring screen view, classroom patrol function.
  1. 具備物聯網接入功能,支援接入最多 30 路 2.4G 無線物聯網模組,並可透過 RS485 通訊模組進行接入。

  2. 支援透過系統平台及應用程式進行遠端控制。物聯網模組可進行手動、定時的集中控制管理(例如:燈光開關、窗簾開合、空調模式切換等)。

  3. 支援透過系統平台呼叫教室監控畫面,實現監控畫面查看、教室巡堂功能。

ParameterSpecification
With hundred megabit Ethernet port1 channel
RS485 communication interface1 channel
IO interface2 channels
POE/DC poweredSupport
2.4G wireless IOT modeMaximum 30 ways
Remote controlsystem platform, applet

Diagram

iDste KC-100_diagram
