Description

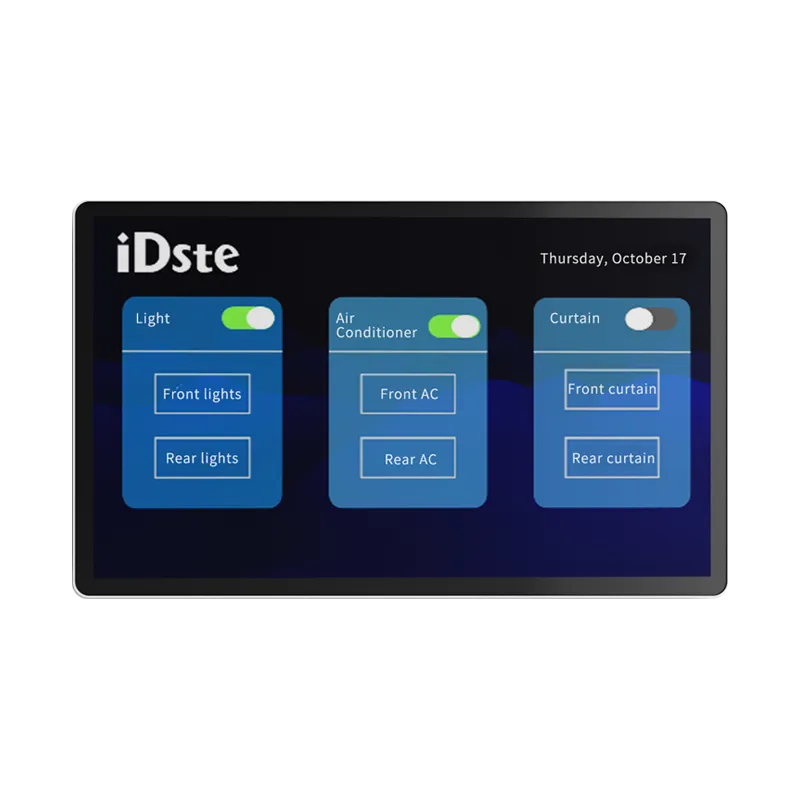

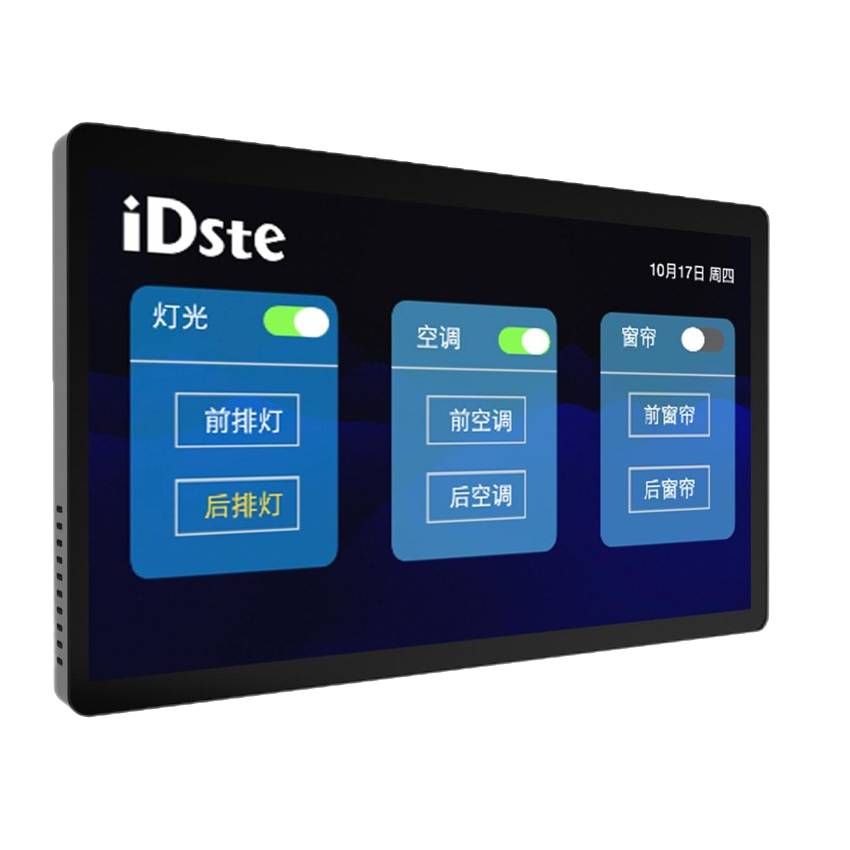

- Network touch panel, support POE powered, 86 type panel mounting method, embedded operating system, 800MHz 32-bit dual-core processor. Bezel size: 184mmx118mm. display size: 153.7mmx86.2mm.
- Equipped with a 7-inch capacitive touch screen, screen resolution of 1024×600. with a RJ45 Ethernet port, 1 mircoSD card interface. Support customized logo and background image, provide device control and scene customization function.
- 網絡觸控面板，支持 POE 供電，86型面板安裝方式，嵌入式操作系統，800MHz 32位雙核處理器。外框尺寸：184mm x 118mm。顯示尺寸：153.7mm x 86.2mm。
- 配備一塊7英寸電容式觸摸屏，屏幕分辨率為1024×600。擁有1個 RJ45 乙太網口，1個 microSD 卡接口。支持自定義標誌和背景圖片，提供設備控制與場景定制功能。
| Parameter | Specification |
|---|---|
| POE Powered | Support |
| Installation | 86 type panel |
| Operating System | Embedded |
| 8 Dual-Core Processor | 800MHz 32-bit |
| Frame Size | 184mmx118mm |
| Display size | 153.7mmx86.2mm |
| Screen Size | 7 inches |
| Screen Type | Capacitive |
| Screen Resolution | 1024×600 |
| RJ45 Ethernet port | 1pc |
| MircoSD card port | 1 |
| Whether to support customization | Yes |
diagram
