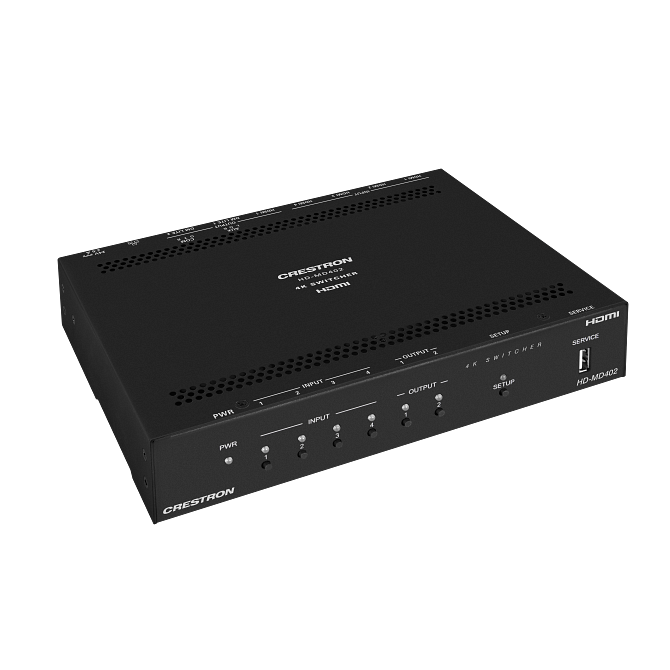

Crestron Electronic 4×2 4K60 4:2:0 AV Switcher

Key Features
  • 4K60 4:2:0 digital AV switcher
  • Four HDMI® inputs

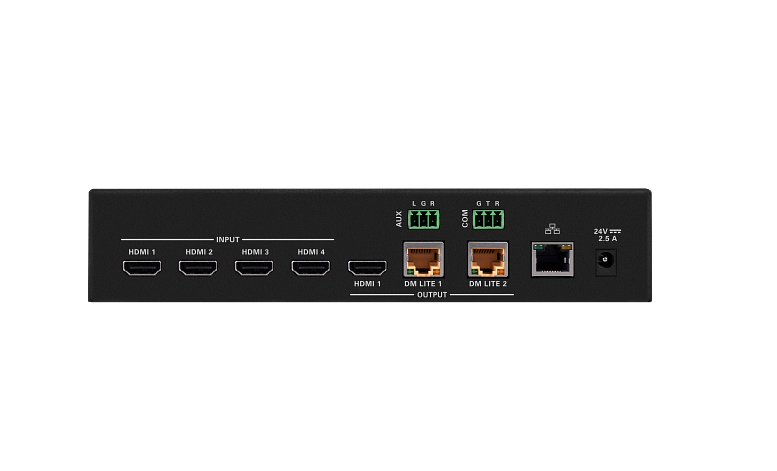

  • One mirrored HDMI and DM Lite® output and one independent DM Lite output
  • 4K to 1080p downscaling
  • EDID management
  • HDCP 2.2 compliance
  • HDMI audio de-embedding
  • 100BASE-TX Ethernet connectivity
  • USB power port
  • Device control
  • Built-in web interface for easy configuration and monitoring
  • Compatibility with Crestron® 3-Series® or later control systems
  • .AV Framework™ technology support (coming soon)
  • Surface-mountable design
  • Universal 100-240VAC power pack included


4K to 1080p Downscaling
The mirrored HDMI and DM Lite output and the independent DM Lite output each have a built-in scaler for downscaling 4K to 1080p signals. Input resolutions are automatically downscaled to 1080p regardless of the resolution capabilities of the display device. If desired, downscaling can be disabled. Input resolutions up to 4K60 4:2:0 are supported.

HDMI Audio De-embedding
Embedded HDMI 2-channel LPCM audio can be extracted from the selected HDMI input and transmitted to the AUX stereo audio output. Mute control is configurable for the mirrored HDMI and DM Lite output, the independent DM Lite output, and the AUX audio output independently. Volume control is only configurable for the AUX audio output.

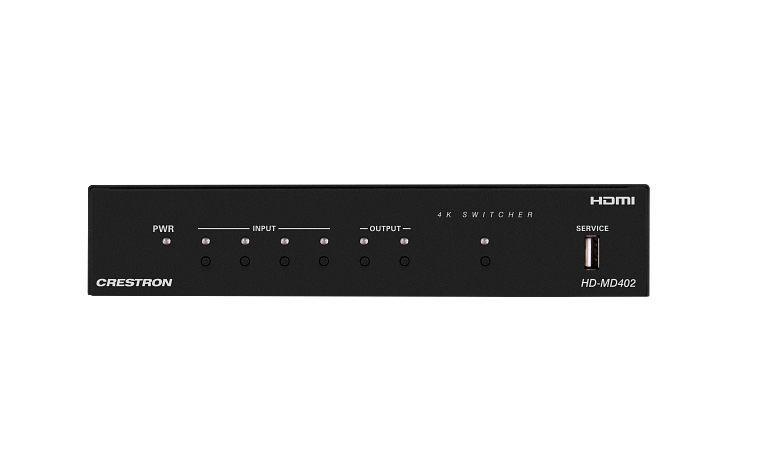

USB Power Port
A USB power port is included on the HD-MD402 to power USB-powered devices (500mA maximum).

Automatic Display Power
The COM (RS-232) port can enable the display device to be turned on or off automatically without the use of a control system. The port also enables full programmable control of any device with the use of a control system. An Ethernet port connection to a LAN also provides control by enabling the use of the built-in web interface as well as connection to a control system.

Built-In Web Interface
Configuration of the HD-MD402 can be accomplished by using the built-in web interface. The configuration of a single unit can be downloaded to a computer or mobile device and then uploaded to multiple HD-MD402 units to simplify system installation.

.AV Framework™ Technology Support (Coming Soon)
In addition to a built-in web interface and control system programming, built-in. AV Framework technology of a Crestron control system can be used to configure and control the HD‑MD402.

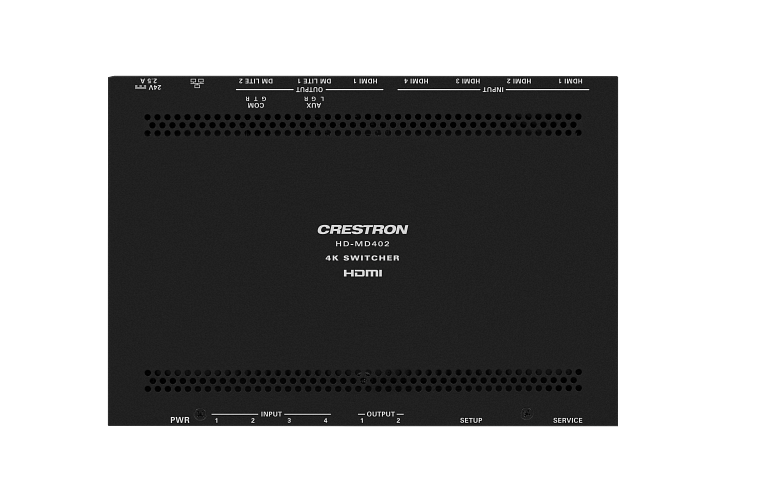

Surface-Mountable Design
The HD-MD402 can be installed using the included mounting hardware. The device can be mounted onto a wall or other flat surface.
