QSC AD-P6T 6.5-inch, 2-way, 135° conical DMT

QSC AD-P6T 6.5-inch, 2-way, 135° conical DMT

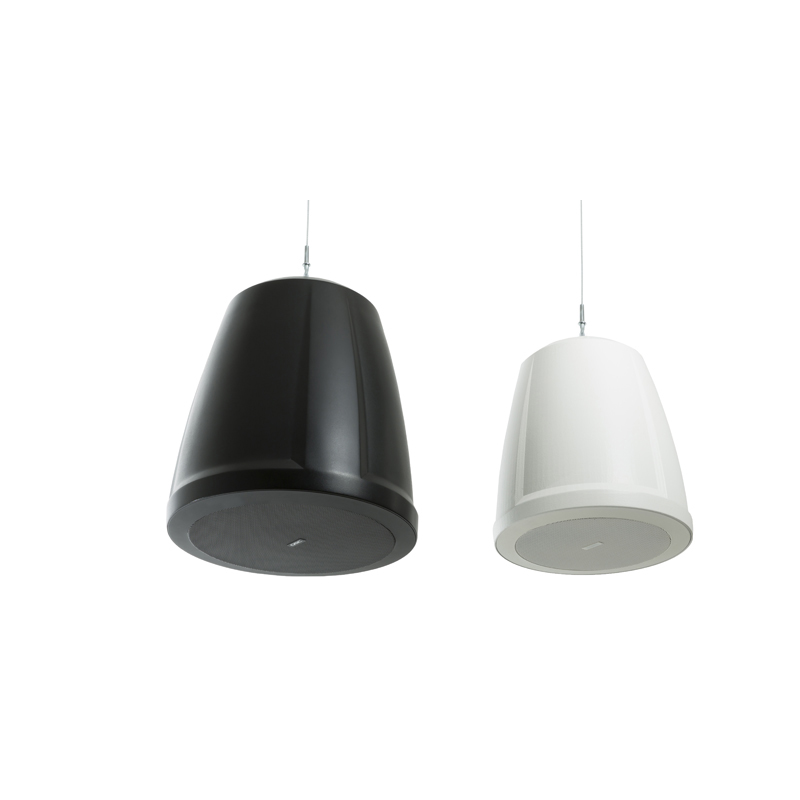

The QSC AcousticDesign™ AD-P6T is a 6.5-inch two-way pendant-mount loudspeaker ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70/100V or 16Ω bypass configurations.

Features

  • Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications
  • DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
  • Snap-fit magnetic grille
  • 2x quick-link suspension cables and slip-lock fasteners provided
  • Intrinsic Correction™ voicings available via Q-SYS Ecosystem and CXD amplifiers
  • Low-saturation and low-loss 70/100V transformers with 16Ω bypass
  • Blemish-free removable logo
  • Sealable input cover to prevent moisture from entering the input terminal block
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, & BIM information available online
Categories: ,

Description

System Details AD-P6T
Effective frequency range 2 55 Hz – 20 kHz
Rated noise power / voltage 1 60 watts / 31 volts (rms)
Sensitivity [dB] 3
Sensitivity at 4m, 100V maximum tap		 88
TBD
Rated coverage (-6 dB) 4 135° conical DMT™
Directivity factor 4 6.5
Directivity index [dB] 4 8
Maximum continuous SPL [dB] 5 106
Maximum peak SPL [dB] 5 112
Nominal impedance [ohms] 16
Recommended amplifier 120 watts
Transformer taps / impedance 16Ω (in bypass setting)
7.5W (70V); 15W (100V) Tap: 667Ω
15W (70V); 30W (100V) Tap: 333Ω
30W (70V); 60W (100V) Tap: 167Ω
60W (70V); N/A (100V) Tap: 83Ω
LF transducer 165 mm [6.5-inch] weather treated paper cone woofer
HF transducer 19 mm [0.75-inch] aluminum dome tweeter
Input connector type Euroblock connector with parallel output
Enclosure material Impact Resistant ABS
Grille material Powder coated steel
Ingress protection IP-34
Operating environment Designed for indoor use
Operating temperature range -20 to 50° C [-4 to 122° F]
Net weight 4.1 kg [9 lb]
Product dimensions (Diameter x Height) Ø 287 x 323 mm [Ø 11.3 x 12.7-inch]
Shipping weight 5.4 kg [11.8 lb]
Shipping dimensions (H x W x D) 343 x 406 x 356 mm [13.5 x 16 x 14-inch]
Included mounting hardware Two quick-link cable assemblies (length 3.25m / 128-inch 2mm thickness), two slip-lock fasteners, locking euro-block connector, sealable input cover and screws, snap-fit magnetic grille.
Safety Agency UL1480, Transformer UL registered per UL1876, ROHS, CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / EN60849 systems

1 IEC Noise, 2 Hrs
2  -10dB from rated sensitivity
3  Transformer bypassed, 1W, 1m, IEC Baffle, 200-10kHz average, on-axis
4 500Hz-5kHz average
5 Calculated from rated noise voltage and sensitivity

All specifications are subject to change without notice.
