Description

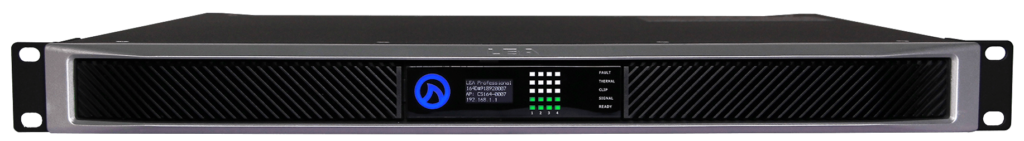

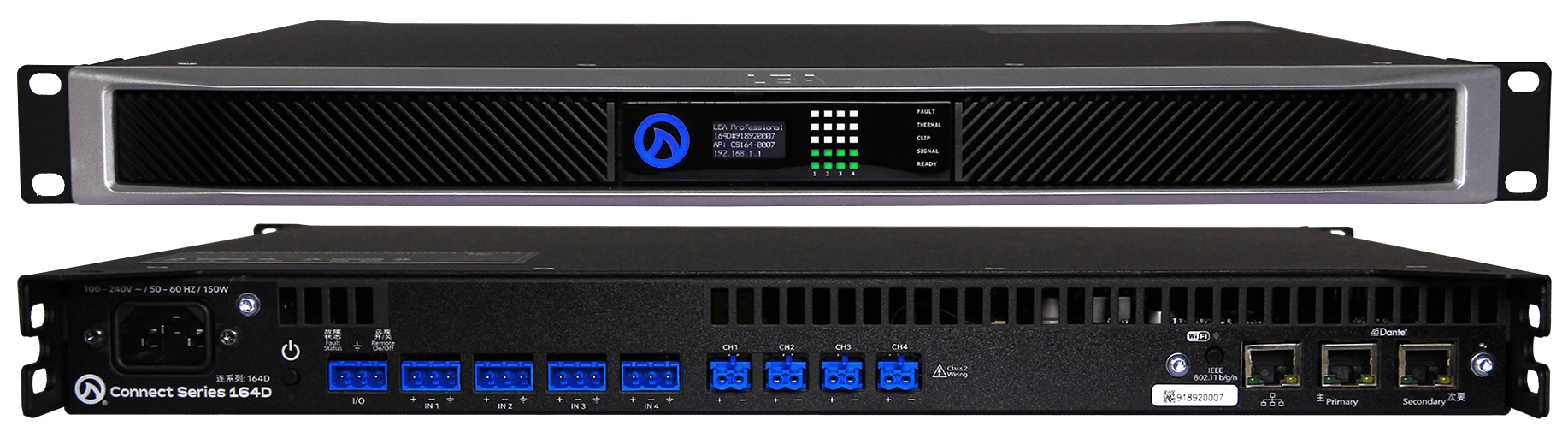

Connect Series 164D 是一款每通道 160 瓦的 4 通道擴大機。作為 Dante CONNECT SERIES 的一員，該系列是全球首款支援物聯網 (IoT) 的專業級擴大機，非常適合中小型安裝應用。CS164D 具備每通道可直接選擇 HiZ（70V 或 100V）或 LoZ 的功能。提供三種連接方式：可啟用內建 Wi-Fi 存取點、連接場地的 Wi-Fi，或使用高速乙太網路透過 Cat5 或 Cat6 網路線連接到任何區域網路。
此外還有雲端… DANTE CONNECT SERIES 是首個具備雲端連接功能的專業擴大機系列。您可以利用雲端的力量，透過任何個人設備進行遠端控制、監控、接收通知等操作。只需將擴大機連接到網路，即可開始指揮您的系統。

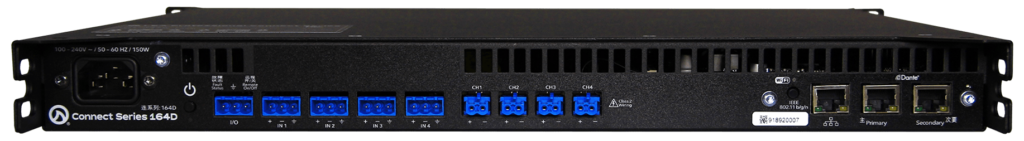

DANTE CONNECT SERIES 還具備類比輸入、Dante 輸入以及用於遠端開／關機與故障監控的外部 I/O 控制。
主要特點
- 基於網頁瀏覽器的使用者介面，可在任何裝置上運作，無需下載任何軟體
- 96kHz Analog Devices DSP，具備輸入路由、多個 48dB/Oct 分頻濾波器、8 段參數等化器、用戶可配置的喇叭限制器，以及即時負載監控
- 每通道可直接選擇 LoZ 或 HiZ（70V 或 100V）
- 專利 Smart Power Bridge 技術，允許用戶橋接通道，在不犧牲其他擴大機通道的情況下，使該通道功率倍增
- 三種連接方式：1) 內建 Wi-Fi 存取點；2) 連接現有 Wi-Fi 網路；3) 區域網路乙太網路連接
- 具備 PFC 的主動式萬用電源供應器，工作電壓範圍 100VAC – 240VAC +/-15%
- 完全可路由的類比輸入
- 用於遠端開／關機與故障監控的外部 I/O 埠
- 高效能 D 類輸出級，交流電流消耗低
The Connect Series 164D is a 4-channel amplifier with 160 watts per channel. As part of the Dante CONNECT SERIES, the world’s first Internet of Things- (IoT) enabled professional-grade amplifiers, it is perfectly suited for small to medium-scale installations. The CS164D features direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built-in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.
Then there’s the Cloud… DANTE CONNECT SERIES is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications, and more from any of your personal devices. Just connect your amp to a network and start commanding your systems.
The DANTE CONNECT SERIES also features analog inputs and Dante inputs and external I/O control for remote on/off and fault monitoring.
Key features
- Web Browser-based UI works on any device with no software to download
- 96kHz Analog Devices DSP with Input Routing, multiple 48dB/Oct crossover filters, 8 Parametric EQ filters, user configurable speaker limiters, and real time load monitoring
- Direct LoZ and HiZ (70V or 100V) selectable per channel
- Proprietary Smart Power Bridge allows user to bridge a channel to achieve double the power of that channel without sacrificing an amplifier channel
- 3 Ways to Connect: 1.) Built-in WiFi Access Point; 2.) Connects to existing WiFi network; 3.) Local Area Network Ethernet connection
- Universal Switch Mode Power Supply with PFC. Operation from 100VAC – 240VAC +/-15%
- Analog fully routable inputs
- External I/O Port for Remote On/Off and fault monitoring
- Highly Efficient Class D Output Stage for low AC Current draw

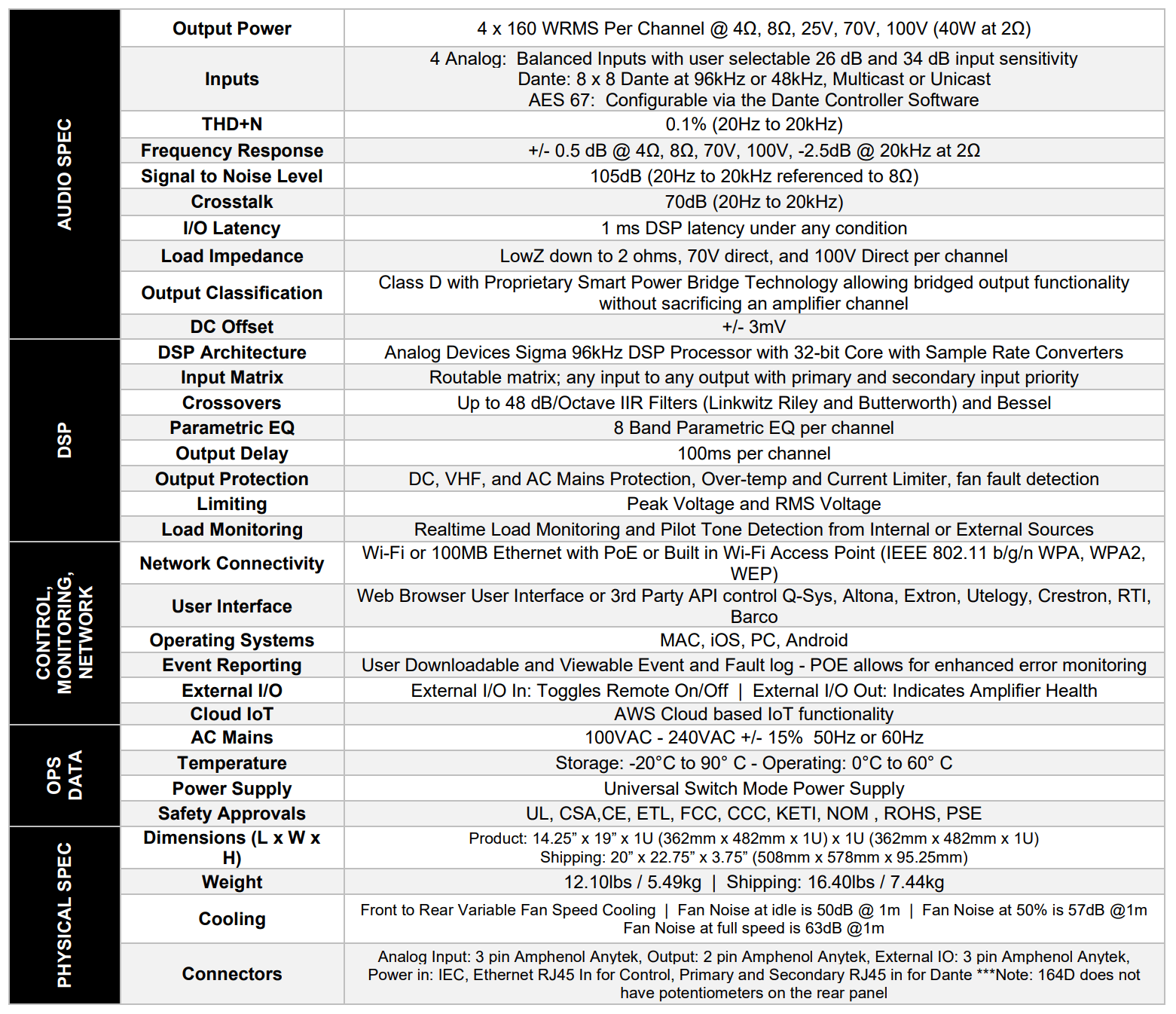

Specifications
