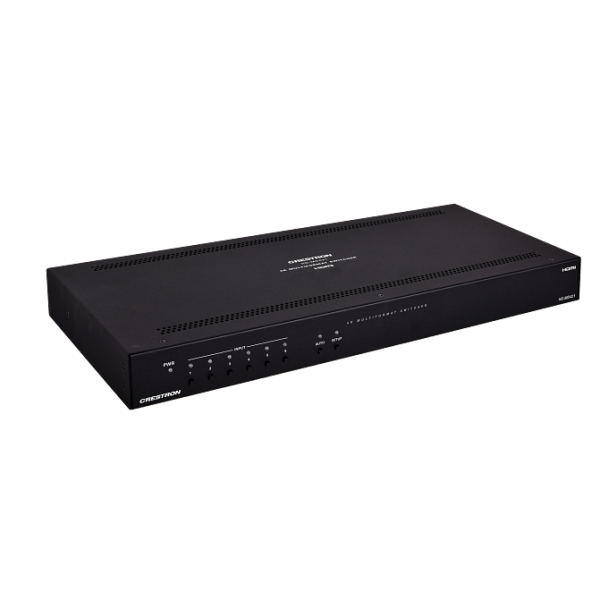

Crestron 6×1 4K60 4:2:0 Multiformat AV Switcher

Key Features
  • 4K60 4:2:0 multiformat AV switcher
  • Four HDMI® and two DM Lite® inputs with automatic switching
  • One mirrored HDMI and DM Lite output
  • 4K scaler
  • EDID management
  • HDCP 2.2 compliance
  • One mono microphone input and three stereo line level audio inputs
  • HDMI audio de-embedding
  • 100BASE-TX Ethernet connectivity
  • USB power port
  • Device control
  • Built-in web interface for easy configuration and monitoring
  • Compatibility with Crestron® 3-Series® or later control systems
  • 1 RU rack-mountable design
  • Universal 100-240VAC power pack included


A high-performance 4K60 4:2:0 multiformat AV switcher. Features four HDMI® inputs, two DM Lite® inputs, and one mirrored HDMI and DM Lite output with a 4K scaler. Also includes four analog audio inputs and one analog audio output. Supports automatic switching of HDMI and DM Lite inputs, advanced EDID management, and native Crestron® control via Ethernet.

Automatic Switching of Inputs
Automatic switching among the HDMI and DM Lite inputs occurs based on the last connected input or the routing priority assigned to each input. An input can be routed to the mirrored HDMI and DM Lite output, which displays the same image.

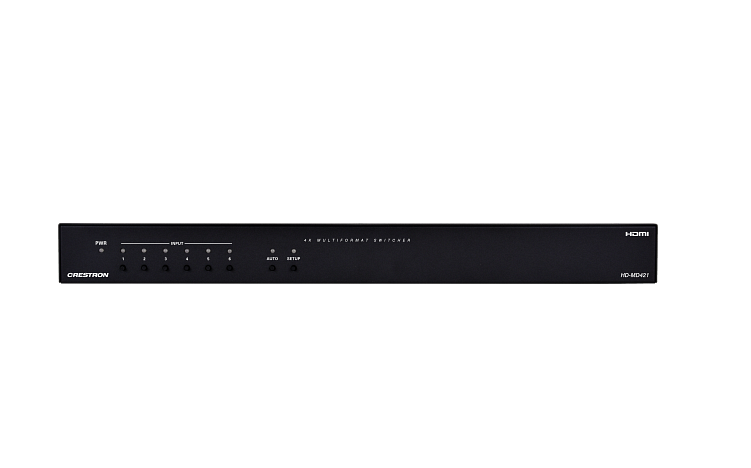

Switching behavior is configurable using the web interface and is programmable using a Crestron control system. In addition, input selection push buttons on the front panel of the HD‑MD421 enable the desired inputs to be selected manually.

4K Scaler
The mirrored HDMI and DM Lite output share a single 4K scaler. Input resolutions are automatically scaled to match the native resolution of the display device, resulting in optimal image quality. For applications requiring comprehensive EDID management, the web interface can be used to ensure that every input is displayed at its optimal resolution and format. Input resolutions up to 4K60 4:2:0 are supported.

HDMI Audio De-embedding
Embedded HDMI 2-channel LPCM audio can be extracted from the selected HDMI or DM Lite input and transmitted to the AUX stereo audio output. Volume and mute control are configurable for the mirrored HDMI and DM Lite output, and the AUX audio output independently.

USB Power Port
A USB power port is included on the HD-MD421 to power USB-powered devices (500mA maximum).

Automatic Display Power
The COM (RS-232) port can enable the display device to be turned on or off automatically without the use of a control system. The port also enables full programmable control of any device with the use of a control system. An Ethernet port connection to a LAN also provides control by enabling the use of the built-in web interface as well as connection to a control system.

Built-In Web Interface
Configuration of the HD-MD421 can be accomplished by using the built-in web interface. The configuration of a single unit can be downloaded to a computer or mobile device and then uploaded to multiple HD-MD421 units to simplify system installation.

.AV Framework™ Technology Support (Coming Soon)
In addition to a built-in web interface and control system programming, built-in.AV Framework technology of a Crestron control system can be used to configure and control the HD‑MD421.

1 RU Rack-Mountable Design
The HD-MD421 can be mounted into a 19-inch equipment rack using the included rack-mount brackets. The device occupies 1 RU of rack space.
