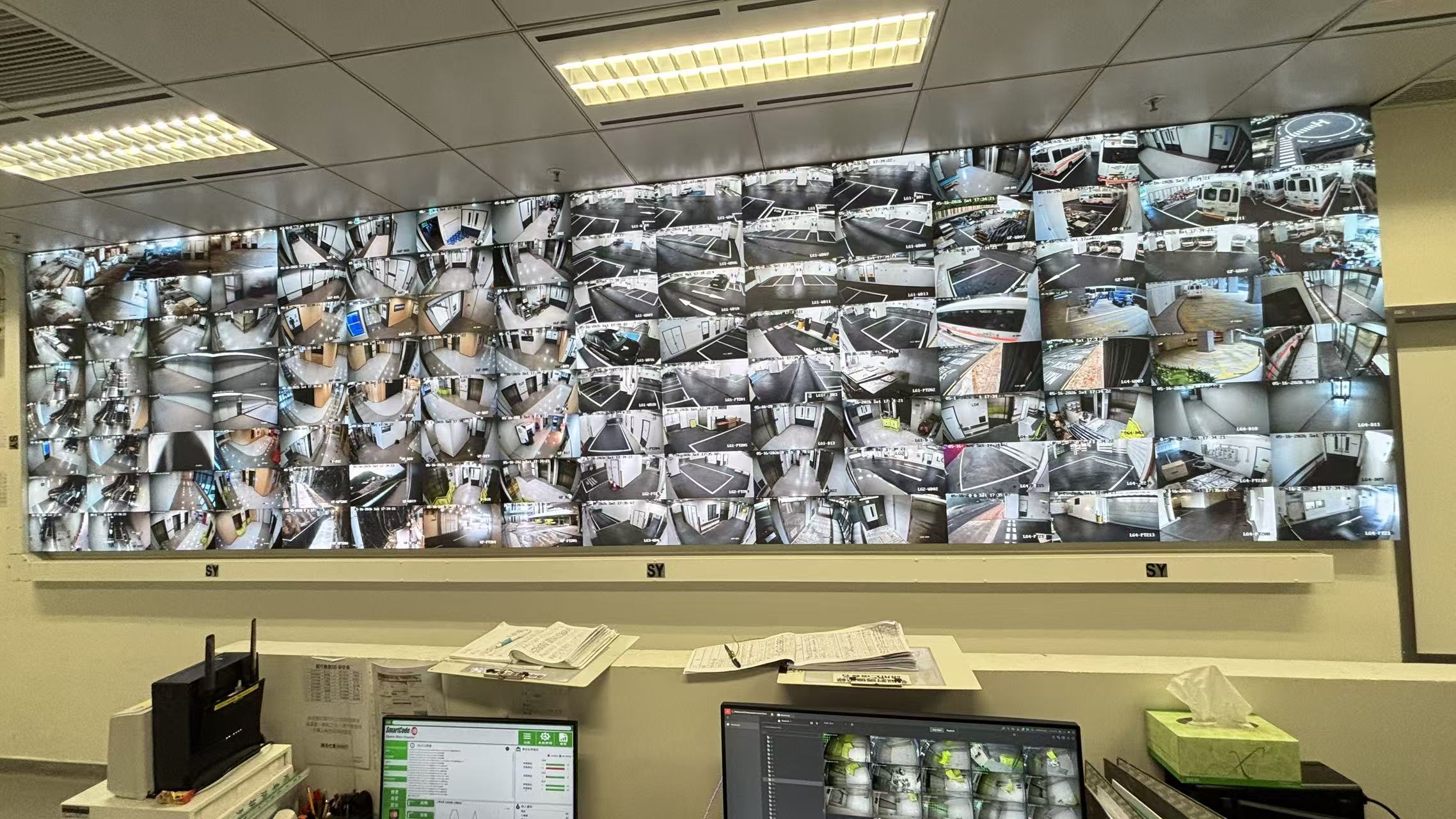

We recently installed a large LED display wall for a hospital command centre. The LED wall measures 6 meters wide by 1.6 meters high, with a thickness of only 10 cm. It can simultaneously display up to 128 channels (16×8 grid) and allows operators to select any camera feed from 500 CCTV cameras across the hospital for real‑time monitoring. The system supports H.264 and H.265 encoding. With seamless splicing, high brightness, and 7×24 non‑stop operation, this LED wall enhances situational awareness and emergency response efficiency, enabling dispatchers to see the big picture and make quick decisions.
Project Overview
The goal was to create a large‑screen, multi‑source monitoring platform for the hospital command centre. Our scope included overall design, LED wall structure installation, video processor configuration, and system commissioning. Key features of the solution include:
- Extra‑large Display Area – 6m x 1.6m, seamless splicing, wide viewing angle
- Multi‑channel Simultaneous Display – Up to 128 channels (16×8) with flexible arrangement
- Massive Camera Access – Supports all 500 CCTV cameras in the hospital, on‑demand selection
- 24/7 Reliable Operation – Designed for continuous use in mission‑critical environments
- Efficient Codec Support – H.264 / H.265
With centralised control software, operators can quickly drag any camera feed to the LED wall and save common layouts for one‑touch switching. The ultra‑thin design (10 cm) also saves valuable space in the command centre.
Core Equipment and Features
- Custom LED Display Wall (Size: 6000mm x 1600mm, Thickness: 100mm)
Features high‑brightness LED modules, delivering a seamless, clear large image. High refresh rate and wide viewing angle ensure clarity for all personnel in the command centre. The ultra‑thin cabinet simplifies installation and maintenance. - Multi‑Window Video Processor
Supports decoding of multiple network camera inputs, with flexible split, overlay, and scaling capabilities. Built‑in hardware decoding for H.264/H.265 ensures low latency. Preset multiple display layouts for one‑click recall. - Centralised Control Management System
Enables cataloguing, grouping, and permission management of all 500 cameras. Operators can quickly push any camera feed to any zone of the LED wall, with support for sequence patrol and alarm pop‑up.
Smart Design with ESG in Mind
This project reflects our commitment to ESG values. The LED wall supports 24/7 efficient operation, and its long lifespan helps reduce electronic waste. Real‑time monitoring allows the hospital to respond faster to emergencies, reducing resource waste caused by delayed reactions. Support for remote video viewing reduces unnecessary staff movement within the hospital, lowering carbon emissions. We are dedicated to creating sustainable, smart command centres for healthcare facilities.
Ready to upgrade your hospital command centre with an LED wall? Contact us to explore our integration solutions.
