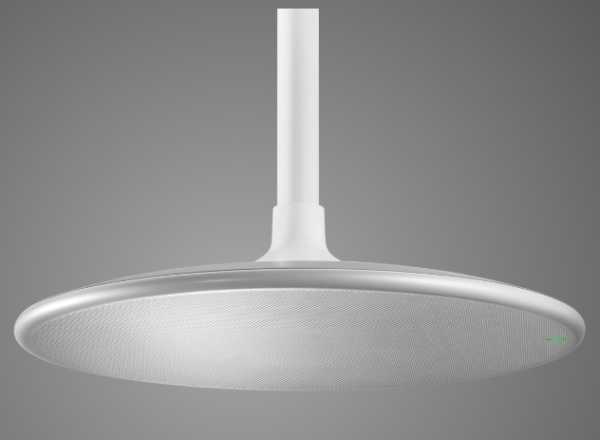

Shure MXA920 Ceiling Array Microphone

Automatic Coverage™ technology requires no setup yet gives you precise control of audio capture if desired. With next-generation array architecture for enhanced directional pickup and more natural speech, the MXA920 ceiling array microphone is easy to use and quick to deploy for AV conferencing, camera tracking, voice lift, or sound reinforcement.

Description

Shure MXA920 Ceiling Array Microphone

HOW IT WORKS

Automatic CoverageTM technology captures the talkers you want to hear while avoiding sounds in other areas, without aiming pickup lobes

Out of the box, MXA920 covers up to a 30 by 30 foot seating area with no setup at all

To capture talkers only in specific locations, drag and drop up to 8 adjustable coverage areas using the built-in web interface

Capture simultaneous talkers in different areas at the same time

You can also turn Automatic Coverage technology off and use Steerable CoverageTM technology to place 8 pickup lobes with 8 individual audio outputs, plus an automix – just like an MXA910

Onboard IntelliMix DSP applies automatic mixing, echo cancellation, noise reduction, and automatic gain control for a pristine audio mix



WHY IT’S BETTER

Next generation array architecture delivers enhanced low frequency directionality and the most natural speech quality

Advanced talker localization algorithm instantly reports the exact position of each talker for the most accurate camera tracking possible.

Precise coverage control provides exceptional isolation between microphone lobes and loudspeakers, guaranteeing the maximum sound level possible in voice lift and sound reinforcement applications

In larger spaces, Designer system configuration software helps you configure MXA920’s with other Microflex Ecosystem devices

Choose Teams-certified bundles with the ANIUSB-MATRIX, P300-IMX, or IntelliMix Room DSP and MXN5C networked loudspeaker
QUALITY THAT’S IN THE DETAILS

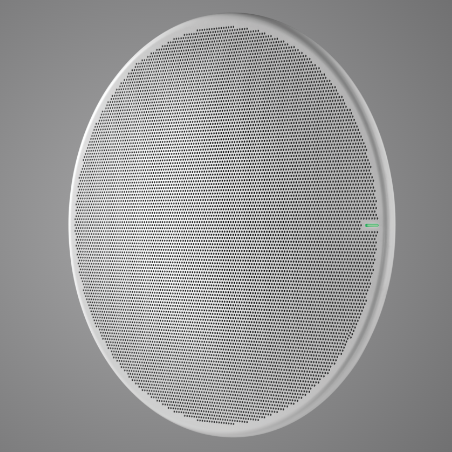

Square and round form factors meet the architectural needs of today’s meeting spaces

White, black, and aluminum finishes to complement your interior design; all paintable for custom needs

Certified for use with Microsoft Teams and compatible with popular collaboration tools

Audio, PoE power, and control signals connect via Dante/AES67 digital audio networking over a single cable

Shure Audio Encryption keeps meeting content secure between the MXA920 and other Microflex ecosystem devices in the room

LED status bar with configurable colors and brightness

Command strings enable seamless integration with third-party camera and room control systems
