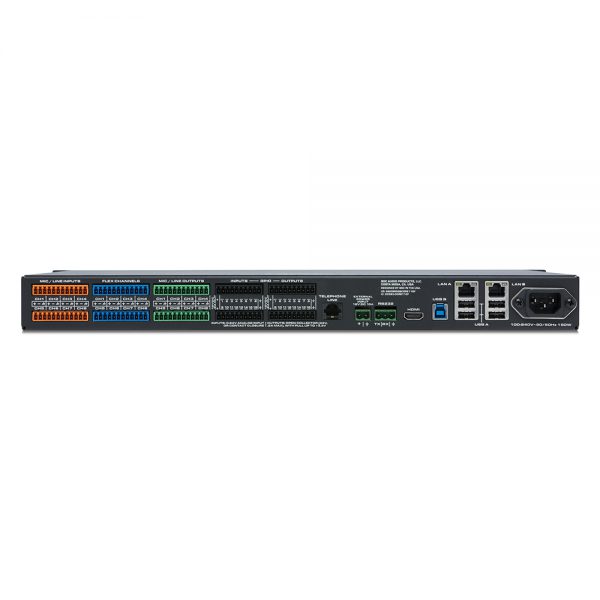

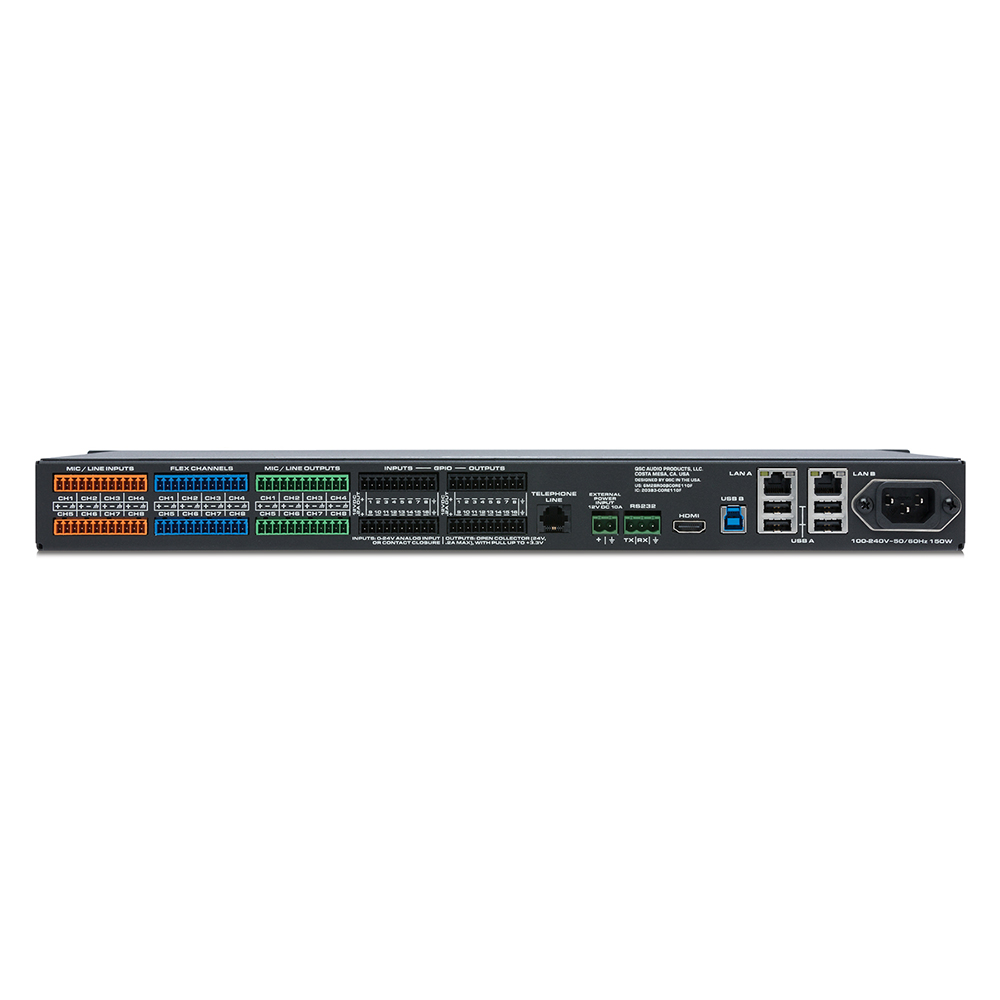

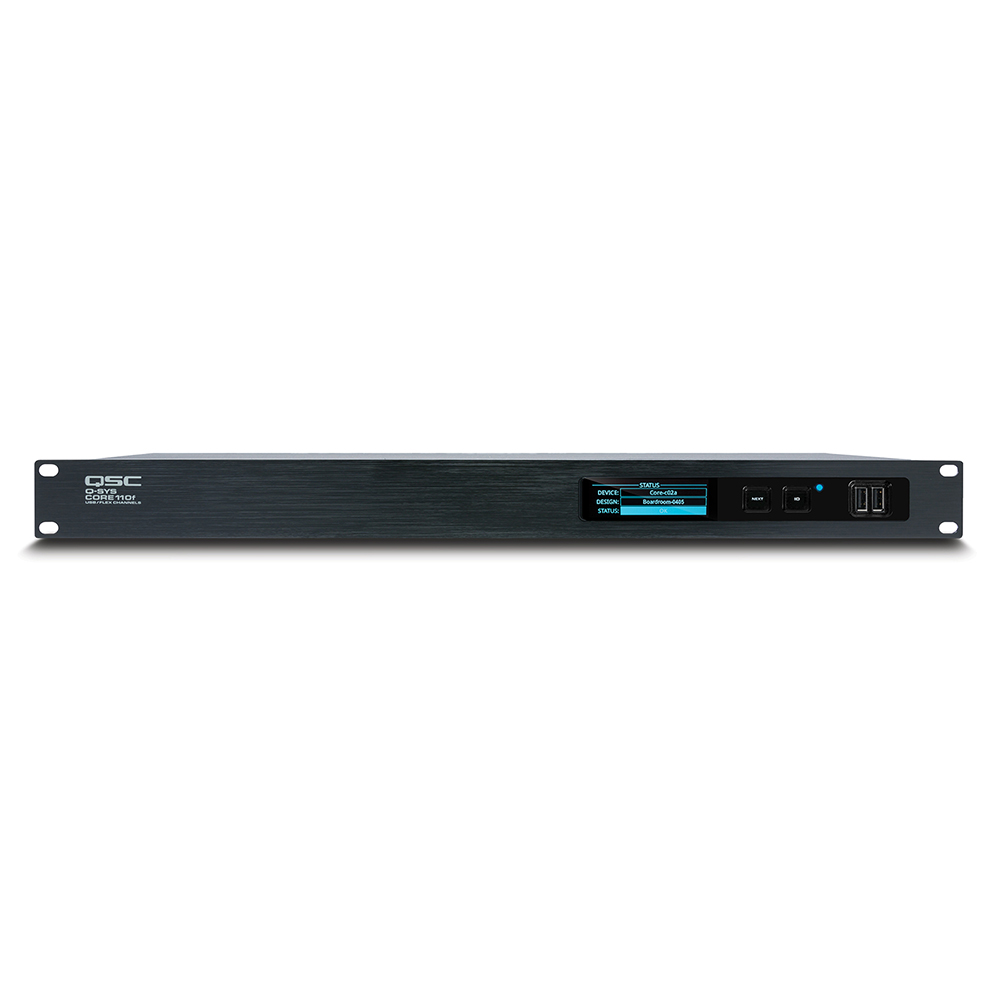

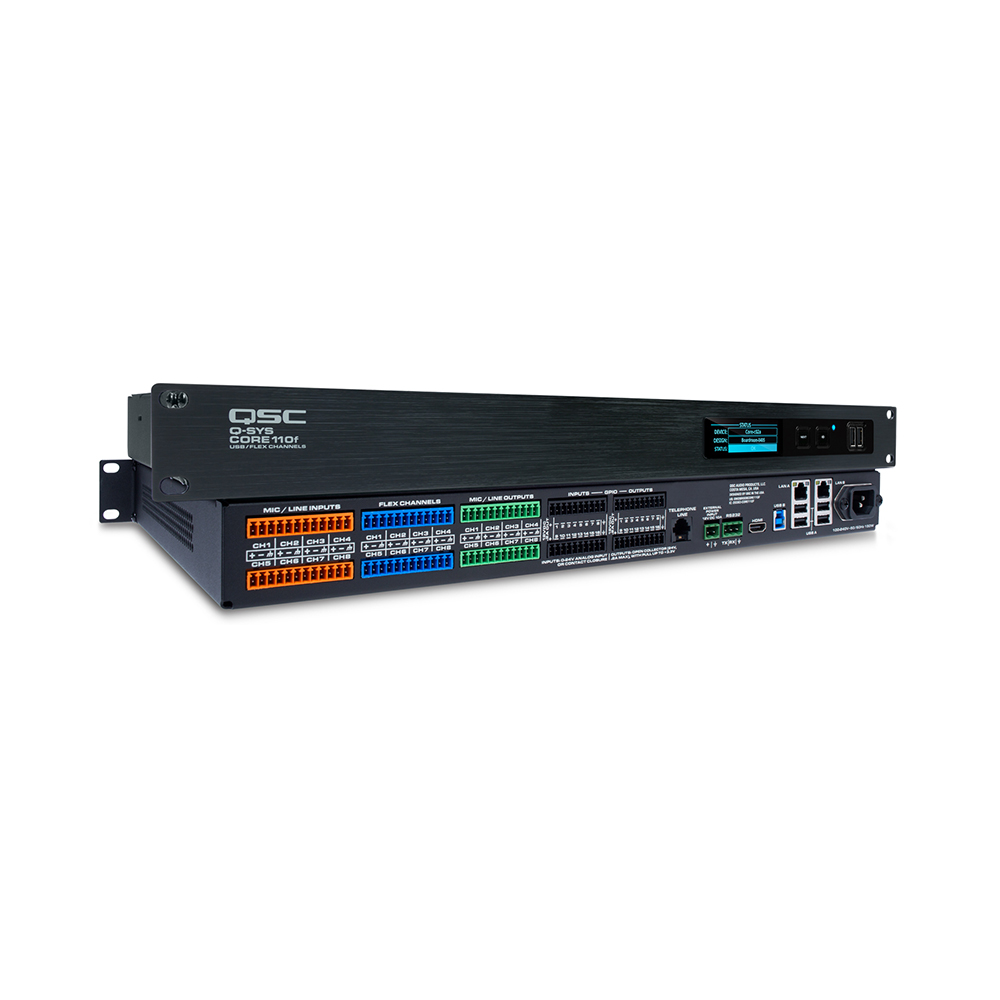

QSC Core 110f

The Q-SYS™ Core 110f processor is the latest addition to the Q-SYS™ Core family providing a fully integrated audio, video and control solution for small, single-room projects up to the largest Enterprise scale deployments.

Categories: ,

Description

Features

  • Class leading I/O: Core 110f has 24 I/O + USB, POTS and VoIP simultaneously offering the best cost to I/O ratio in a single SKU, single chassis product available on the market.
  • 8 Flex Channels: Nearly all the flexibility of a card-based DSP solution without the hassle of multiple SKU’s and custom ordering.
  • True IT Software Integration: The Q-SYS Software Ecosystem is a true IT integrative solution that is free of the fixed hardware limitations seen in competing products. It allows for greater functionality such as Layer 3 routing, LDAP contact server integration, SNMP monitoring, and more.
  • Suite of Software-Based Conferencing Technology applications: Built and owned by QSC from the ground up allowing for continued refinement, without any additional hardware. The suite includes next generation acoustic echo cancellation (AEC), multiple-instance SIP softphones, gain sharing and gating automixers.
  • Unified Software Platform: The integrator has a single training investment in one software design tool rather than needing to learn several platforms to scale from small to large systems.
Model                                                                  Core 110f
Input Frequency Response
20Hz to 20kHz @ +21dBu +0.05dB/-0.5dB
Input THD+N @ 1KHz
@ +21 dBu Sensistivity & +21 dBu input < 0.1%
@ +21 dBu Sensistivity & +10 dBu input < 0.0015%
@ +10 dBu Sensistivity & +8 dBu input < 0.0007%
@ -10 dBu Sensistivity & -10.5 dBu input < 0.0006%
@ -39 dBu Sensistivity & -39.5 dBu input < 0.007%
EIN (no weighting, 20Hz to 20kHz) < -121dB
Input to Input Crosstalk @1kHz >110dB Typical, 90dB Max
Input Dynamic Range
@ +21 dBu Sensitivity > 109.5dB
@ +10 dBu Sensitivity > 106.4dB
@ -10 dBu Sensitivity > 104.6dB
@ -39 dBu Sensitivity > 104.6dB
Input Common Mode Noise Rejection
@ +21 dBu Sensitivity
@ +10 dBu Sensitivity 56.5
@ -10 dBu Sensitivity 73.2
@ -39 dBu Sensitivity 63.2
Input Impedance (balanced) 5K Ohms Nominal
Input Sensitivity Range (1dB Steps) -39 dBu min to +21 dBu max
Phantom Power +48v DC, 10mA per input max
Sampling Rate 48kHz
A/D – D/A Converters 24-bit
Overall Dimensions/Weight Device Height: 44 mm (1.75 in) Device Width: 483 mm (19 in) Device Depth: 282.5 mm (11.12 in) Device Weight: 5 kg (11 lb) Shipping Height: 152 mm (6 in) Shipping Width: 584 mm (23 in) Shipping Depth: 356 mm (14 in) Shipping Weight: 5.6 kg (12.4 lb)
Output Frequency Response
20Hz to 20kHz @ all settings +0.2/-0.5 dB
Output THD 0.003%, +10 dBu Max output level
Output Crosstalk @1khZ >100dB Typical, 90dB max
Output Dynamic Range >108dB
USB B
Bit Depth Selectable 16-bit, 24-bit
Number of Channels up to 16 × 16
Sample Rate 48kHz
Output Impedance (balanced) 220 0hms
Output Level Range : (1dB Steps) -39 dBu min to +21 dBu max
Power Consumption 60 watts, typical. 120 watts max
BTU/Heat load: 205 BTU/Hour
Compliance FCC Part 15B (USA), FCC part 68 / TIA-968-B (USA), JATE (Japan), AS/ACIF S002 (Australia), PTC200 (New Zealand), ES203 021 (Europe), ANATEL Resolution 473 (Brazil), NOM-151-SCTI (Mexico), PSTN01 (Taiwan), Industry Canada CS-03 (Canada), CE marked (Europe), UL and C-UL listed (USA & Canada), RCM (Australia), EAC (Eurasian Customs Union) & RoHS Directive (Europe)

All specifications are subject to change without notice.
