|16,000 lm||13,000 lm||10,000 lm|
- 01 Key Feature
Clear, Long-Lasting Viewing for Efficiency and Comfort
Harnessing 16,000 lm*1 at WUXGA with new 15.4 mm (1-inch) LCD panels, Multi-Laser Drive Engine, and Pure White Generator technology, picture quality is consistently sharp and vibrant.
- 02 Key Feature
Reliable Operation Reduces Callouts in Real-World Conditions
First Panasonic LCD models with liquid-cooled lasers also gain dedicated, sealed phosphor-wheel cooling, laser failover circuitry, flexible backup input-switching*2, and Information Monitor for interruption-free long-life reliability.
- 03 Key Feature
Simplified Installation Streamlines Your Workflow
Compact LCD projector models are first to support Panasonic-original Smart Projector Control Ver. 2.0*3 app and Geo Pro*4 software. 4K/60p signal input*5 joins a wide range of new lenses that eliminate throw-ratio gaps and make integration seamless.
*1 Stated brightness is for PT-MZ16KL only. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.
*2 Combination of primary/secondary input terminals is limited. Please check operating instructions for more details on the supported combination of primary/secondary input terminals. Switching to secondary (or primary) input occurs automatically when the input signal for primary (or secondary) input is disrupted. The Backup Input Setting is enabled only when the input signal to primary and secondary terminals is the same.
*3 For more information on Smart Projector Control app for Android™ and iOS devices, please visit the Smart Projector Control website.
*4 For more information about activation of optional upgrade kits for Geometric Manager Pro software, please visit PASS.
*5 4K signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection. Supported terminals: DIGITAL LINK/HDMI®. YPBPR 4:2:0 format only for 4K/60p signals input via DIGITAL LINK.
Clear, Long-Lasting Viewing for Efficiency and Comfort
Pure White Generator Enriches Colors with 16,000 lm* Brightness
New 1-inch LCD panels, Multi-Laser Drive Engine, inorganic phosphor wheel, and Pure White Generator combine to achieve brighter and more natural color expression. Pure White Generator reduces energy wastage from the light source using a Panasonic-original multi-reflection engine that collects blue laser light with very high efficiency. Pure White Generator harnesses the extra light to improve color accuracy and create vibrant, natural, true-to-life colors that appear brighter and deeper on screen. Regardless of the installation site and ambient light levels, audiences can enjoy immersive high-quality images comfortably viewed for extended periods.
Note: Stated brightness is for PT-MZ16KL only. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.
Reliable Operation Reduces Callouts in Real-World Conditions
Our First LCD Projectors with Liquid Cooling for Multi-Laser Drive

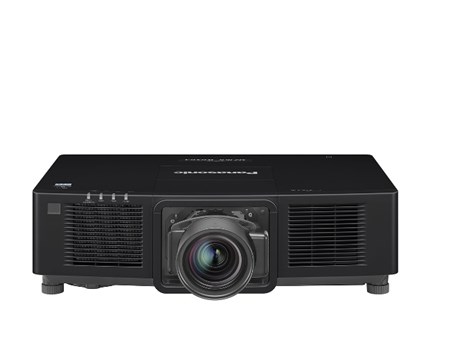

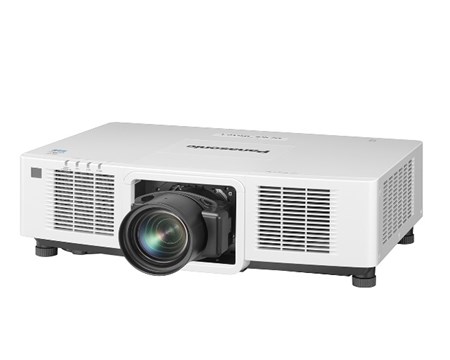

The PT-MZ16K Series is our first LCD projector lineup to feature a liquid-cooling system for multiple solid-state laser modules, securing reliable projection stability. As well as raising the ceiling for high-brightness projection in elevated locations and in environments subject to heat, the liquid-cooling system contributes to whisper-quiet 32–38 dB operation (depending on the projection mode)* to minimize distracting noise within the learning space.
* For the PT-MZ16KL.
Panasonic’s Original Phosphor-Wheel Cooling System
The PT-MZ16K Series features a dedicated and original sealed cooling system for the phosphor wheel, which is made of durable, heat-resistant inorganic material. Extensive shielding around the phosphor-wheel assembly protects against dust-particle intrusion for extended reliability and consistent brightness.
Multi-Laser Drive Engine with Failover Redundancy Circuits
Multi-Drive Laser Optical Engine groups laser diodes into multiple laser modules. If one diode in a module fails, only a limited number of diodes in the affected series are bypassed. The remaining diodes continue to operate, maintaining close to full brightness. If a laser diode fails in other projectors, the entire module shuts down, resulting in a dramatic loss of brightness. The PT-MZ16K Series adds an invaluable layer of insurance when image presentation must not be interrupted.
Backup Input Switching Maintains Picture Display
This LCD projector series boasts a flexible backup input-switching function configurable to receive the same input signal via a combination of assigned primary and secondary inputs. If signal transmission to the primary input fails, projection continues via the assigned backup input without screen blanking. When communication is restored, the projector switches back to primary input automatically. This feature is invaluable when projection must be maintained without interruption.
Note: Combination of primary/secondary input terminals is limited. Please check operating instructions for more details on the supported combination of primary/secondary input terminals. Switching to secondary (or primary) input occurs automatically when the input signal for primary (or secondary) input is disrupted. The Backup Input Setting is enabled only when the input signal to primary and secondary terminals is the same.
New Information Monitor
To further simplify setup and operation of the PT-MZ16K Series, an Information Monitor is located on the rear panel adjacent to terminals and physical controls. The monitor provides menu-based navigation for smooth setup of Projector ID and basic network configuration. It also shows projector status including temperature, runtime, and active signal data, as well as error codes should a problem be detected.
Simplified Installation Streamlines Your Workflow
Supports 4K Signal Input
The PT-MZ16K Series supports uncompressed 4K/60p video-signal input via HDMI® or DIGITAL LINK terminals. The ability to play Ultra HD video at the projector’s supported native resolution is useful in situations where the same premium video content is intended for playback on multiple 4K and non-4K projectors or displays. It saves operators the hassle of re-encoding source video and allows the PT-MZ16K Series to be added to a projector network that includes 4K units, streamlining simultaneous playback of a single 4K video source on all compatible display devices.
Note: 4K signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection. YPBPR 4:2:0 format only for 4K/60p signals input via DIGITAL LINK.
First LCD Projectors to Support Geometry Manager Pro Software
These are Panasonic’s first LCD projectors to support free Geometry Manager Pro software traditionally available with our large-venue DLP™ projectors. The software expands built-in geometric and multi-screen adjustment capabilities with a Free Grid function that governs 4-corner adjustment, keystone correction, curved-screen correction, and free-form image correction via PC interface. Two upgrade kits can be unlocked with paid license keys to further deepen functionality. ET-UK20 adds uniformity correction and an extensive creative masking package, while ET-CUK10 features Auto Screen Adjustment for simultaneous setup of multiple screens (including curved-screen correction) using a compatible camera. These kits expedite edge-blending and color-matching images over multiple screens with automatic calibration for black level, brightness uniformity, and stacking.
Note: Use of Geometry Manager Pro and optional upgrade kits requires the latest firmware and projector registration. Visit PASS to register your projector, download the latest firmware, download free Geometry Manager Pro software for Windows® (optional ET-UK20/ET-CUK10 upgrade kits included), and purchase license activation keys for ET-UK20/ET-CUK10. Compatible cameras for ET-CUK10 comprise Nikon D5200/D5300/D5500/D5600/D7500. Use of ET-CUK10 with these cameras requires installation of Auto Screen Adjustment Plug-in (a free camera driver available from PASS). Use of Auto Screen Adjustment function with D7500 requires Geometry Manager Pro Ver. 6.1.10 or later and Auto Screen Adjustment Plug-in Ver. 5.1.10 or later.
Geometric Adjustment with Free Grid Correction via Remote Control
Panasonic has added a new Free Grid function to existing Geometric Adjustment that enables convenient grid-based image adjustment using the projector’s remote controller. Grid resolutions of 2 x 2, 3 x 3, 5 x 5, 9 x 9, or 17 x 17 can be projected and areas of the image reshaped or geometrically altered to compensate for screen distortions. This correction is easily performed by adjusting control points located at grid-line intersections. Move freely between grid resolutions to achieve the desired level of granularity without losing work progress. This clever data-saving function allows technicians to smoothly create a distortion-free projection in a wide range of installation situations.
Remote App with NFC Function*1 and Projector Auto-Focus via Device’s Camera
Smart Projector Control app for Android™ and iOS now includes Near Field Communication (NFC) function to instantly pair smartphone to projector just by touching them together. Once linked, the app accesses an information settings menu that’s readable and writable*2 for easy adjustment without turning on the projector. As well as showing data and allowing certain settings to be changed, the app features an auto-focus function that uses the smartphone’s camera and app UI to achieve fast yet precise image focus.
Smart Projector Control (Web Manual)
*1 Availability may vary by country or region.
*2 The ability to write data is not possible with iOS devices. Use of functions described may require prior activation within the projector’s settings. Check the App Store or the Google Play store for minimum device and OS requirements, or click here for more information.
Note: In some countries, projector activation is required to use NFC function. Please click here for a list of countries where an optional ET-NUK10 Upgrade Kit can be obtained to enable NFC function. For more information, please visit PASS. If NFC function is disabled, the app’s NFC screen is displayed, but reading/writing data is not possible.
Dedicated Lenses with AFO*
A new lineup of seven optional lenses for PT-MZ16K Series projectors provides gap-free throw-ratio coverage from 0.480–0.550 to 4.14–7.40, seamlessly integrating projections into almost any installation site. The lenses are compatible with all models in the series regardless of brightness. Powered zoom and lens-shift are available via remote control and Smart Projector Control app. Also included is an AFO* sensor which optimizes focus as lens temperature fluctuates, keeping images pin-sharp and reducing need for manual calibration.
* Specifications vary depending on lens. Please check operating instructions for more details.
Optional Ultra-Short-Throw Zoom Lens Enables Installation in Limited Space
ET-EMU100 Ultra-Short-Throw Zoom Lens, which has a throw-ratio of 0.330–0.353:1 and can project a screen size of between 100–400 inches has been added to the lens lineup. This lens allows a large screen to be projected in a limited space and eliminates the gap between the top of the image and the ceiling. The lens also enhances flexibility in post-installation adjustment using optical zoom, which provides an expanded choice for immersive spatial performance.
For more information, please visit the ET-EMU100 website.
Note: Use of ET-EMU100 is subject to specific installation and usage conditions. Consult your sales representative for details before purchase. Use of lens requires PT-MZ16K Series with main projector firmware Ver. 1.23 or later or Ver. 2.10 or later. Visit PASS for more information.
Quiet Operation for Distraction-free Viewing
With intended deployment in secondary and tertiary schools, seminar rooms, conference centers, and other training spaces, the PT-MZ16K Series is engineered for quiet operation at as low as 32 dB* in a quiet mode.
* For the PT-MZ16KL, 38 dB in NORMAL Mode.
Dynamic Contrast of 3,000,000:1* for Natural Image Expression
Precision laser power output modulation achieves high contrast with low power consumption, enabling superior expression of light and dark scenes for a natural, comfortable viewing experience. The PT-MZ16K Series features high 3,000,000:1* dynamic contrast.
* With image mode set to “Dynamic” and [Dynamic Contrast] set to .
Detail Clarity Processor 4 Provides Pin-Sharp Insight
Proprietary circuitry analyzes individual video frames to clarify areas of each image containing fine details. Algorithms pull information from four frequency bands of the signal, sharpening outlines, correcting contours, and reducing ringing noise for a vastly superior picture.
Color Adjustment Function
Color Adjustment makes it easy to correct slight variations in the color reproduction range of individual units set up for multiple projection, particularly those in side-by-side configuration. Correction is performed on 3 or 7 colors.
No Light-Source Replacement for 20,000 hours*
Laser light-source lifespan is extended to 20,000 hours*, cutting running costs, labor, and wastage in comparison to lamp-based projectors. By reducing use of consumable parts, organizations can also streamline spare-part inventories.
* Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast , under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Panasonic recommends cleaning or checkup at point of purchase after about 20,000 hours. Light-source lifetime may be reduced depending on environmental conditions. Replacement of parts other than the light source may be required in a shorter period. Estimated maintenance time varies depending on environment.
Reusable ECO Filter Replacement Extended to 20,000 Hours*1
Eco Filter includes a Micro Cut Filter that collects minute dust particles with an electrostatic effect. Together with dust-resistant projector cabinet, Eco Filter enables long-term use in dusty conditions with less downtime. Replacement is at about 20,000 hours*1, and the filter can be washed and reused*2.
*1 Under conditions of 0.15 mg/m3 of particulate matter. Estimated maintenance time varies depending on environment.
*2 Please follow the procedures listed in the operating instructions when washing filter with water. Replacement is recommended after filter has been washed and reused twice, or if filter is not sufficiently clean after washing.
Single-Cable DIGITAL LINK Connection for AV and Control Signals
Based on HDBaseT™ technology, DIGITAL LINK supports transmission of Full HD video, audio*1, and control commands through a single CAT 5e or higher STP cable for distances of 150 m*2 (492 ft). An optional DIGITAL LINK Switcher or Digital Interface Box further streamlines installation in large venues.
*1 Audio transmission depends on model’s audio capability.
*2 150 m (492 ft) transmission available with ET-YFB200G DIGITAL LINK Switcher for signals up to 1080p in Long Reach Mode only.
Separate LAN/DIGITAL LINK Terminals
Separate terminals for LAN and DIGITAL LINK enhance versatility. Installers can assign 100Base-TX- and 10BaseT-compatible control signals via LAN terminal, freeing up DIGITAL LINK for video.
Multi-Screen Support System
Optimally adjusts multiple screens with edge blending, color matching, and digital image enlargement.
Edges of adjacent screens can be blended and their luminance controlled.
Corrects color reproduction variations of each projector via PC control software.
Free 360-degree Installation
SOLID SHINE Laser technology enables free 360-degree installation through any axis. Together with powered lens shift and a wide range of optional lenses, the projector can be mounted in any way desired without picture distortion temporarily or in permanent applications.
Multi Monitoring & Control Software and Early Warning Software
Panasonic Multi Monitoring & Control Software supports up to 2,048 devices over LAN and features system map visualization or auto-search of devices to be registered. The free software is available with Early Warning functions (automatic free 90-day trial available). These advanced functions enable real-time monitoring, abnormality detection, and notification before servicing is required. Administrators can achieve seamless control and real-time monitoring while preventing potential problems, saving time, and enhancing system reliability.
Multi Monitoring & Control Software and Early Warning Software (Product Information)
* Software functionality varies depending on the model.
Quick Start and Quick Off
The laser light source doesn’t require any time to warm up, so images appear almost instantly on projectors with Quick Start/Quick Off function. There’s also no cool-down needed when turning the power off. It’s safe to switch the projector on and off any time desired.
Fade In and Fade Out
Another benefit of digital laser output power modulation technology is a handy Fade In/Fade Out function, which allows users to commence or conclude their presentation to professional effect.
