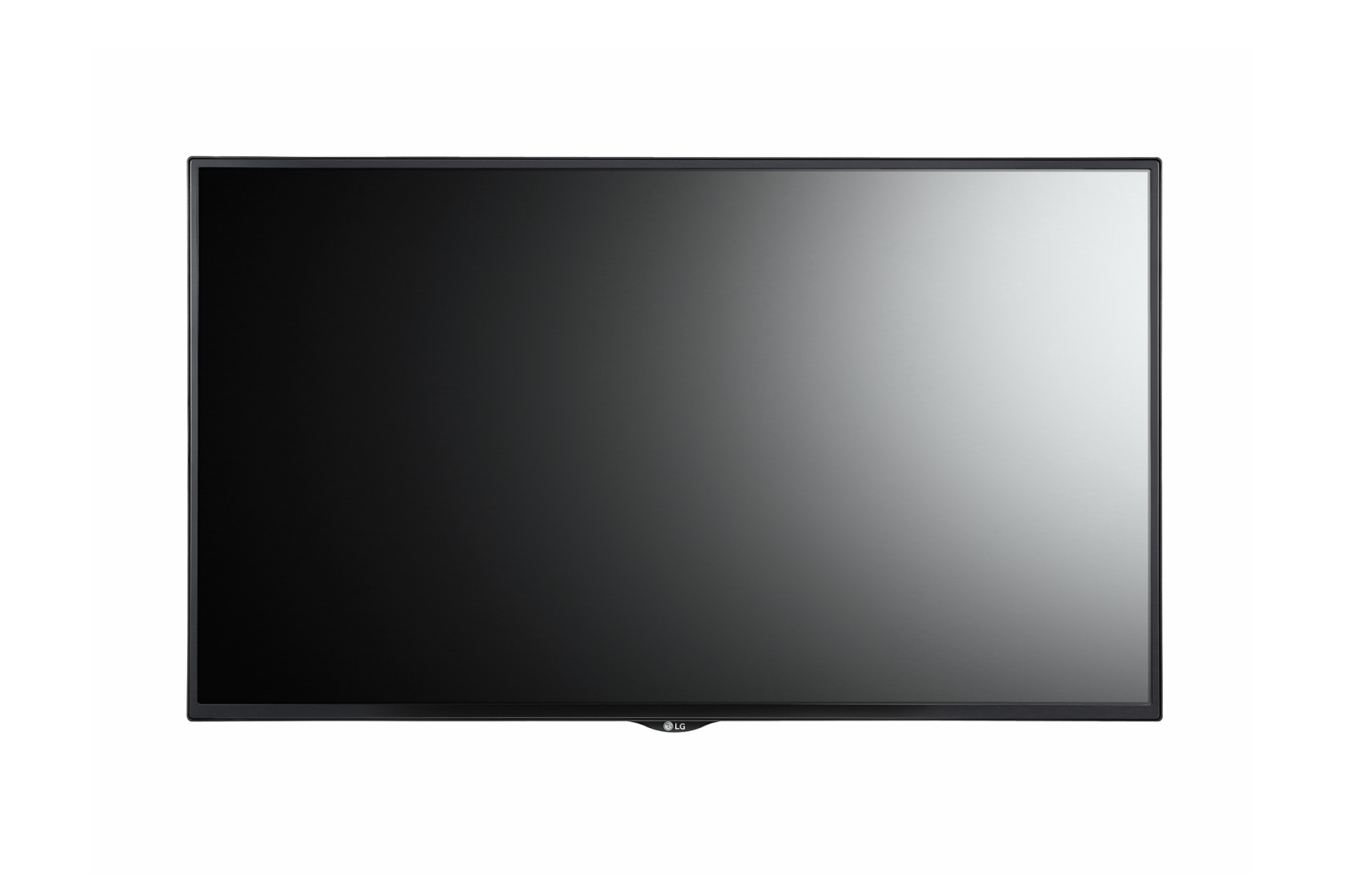

LG SH7PE-B Series 55SH7PE-B

  • Brightness(Typ.) : 700 cd/m²
  • Bezel : 11.9 mm (T/L/R), 18.0 mm (B)

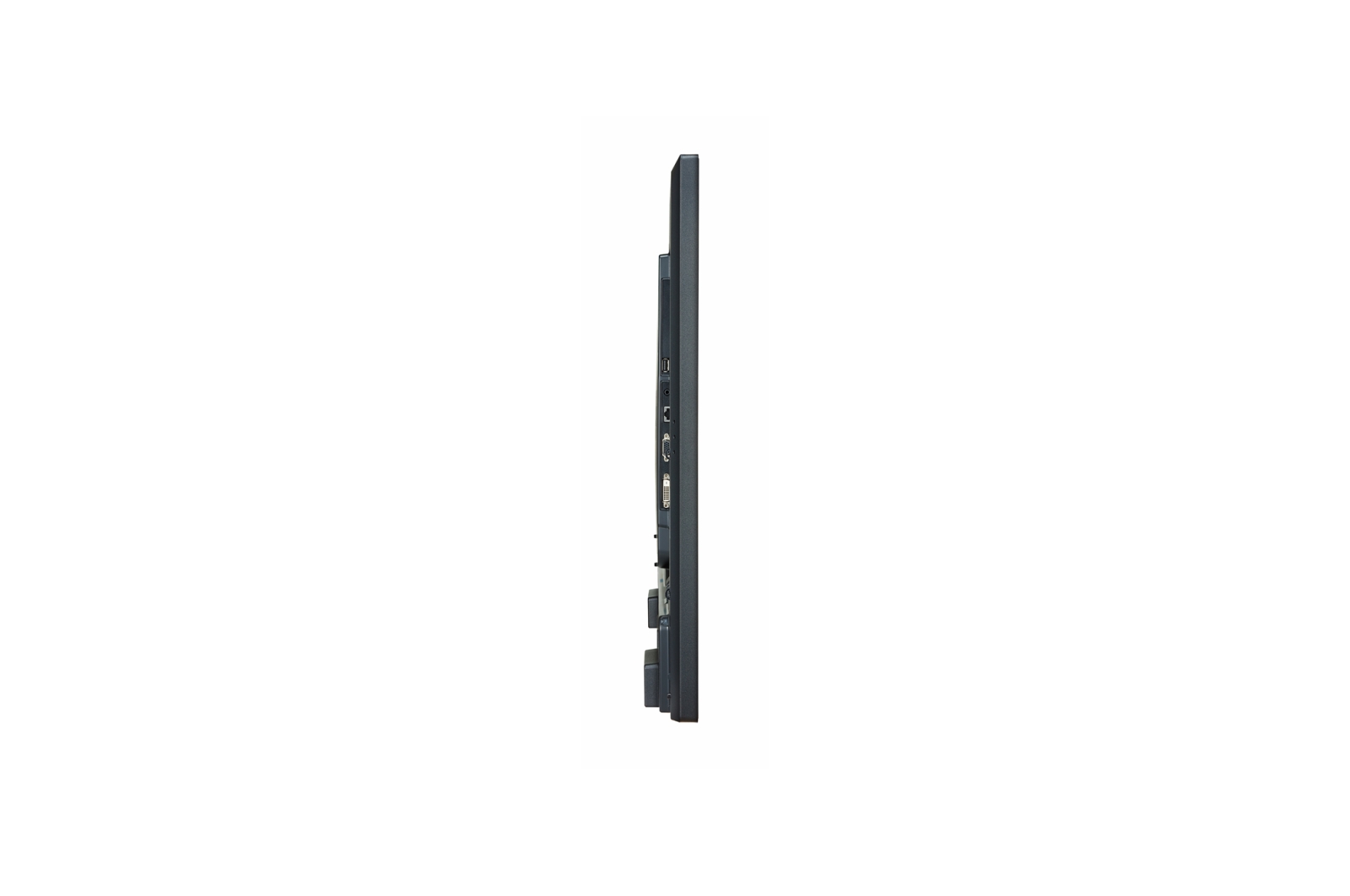

  • Depth : 54 mm
  • Interface : HDMI(2), DVI-D, RGB, USB, RJ45, RS232C, IR
  • Built-in Speaker(10W+10W)
  • OPS Power Built-in, EMC Class “B”
Categories: , ,

Description

PANEL

  • Screen Size
    55″
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Typ., cd/m²)
    700

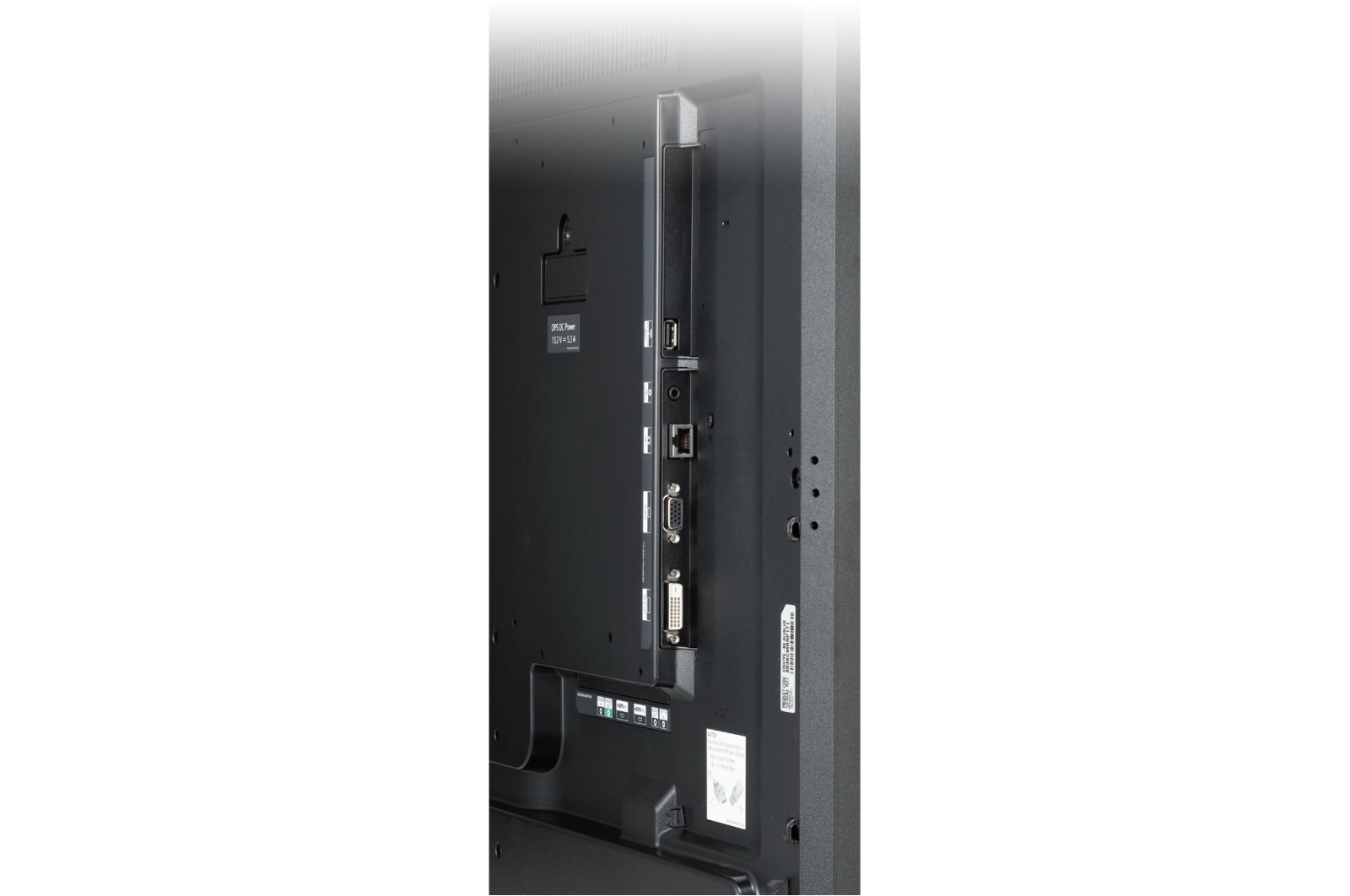

CONNECTIVITY

  • Input
    HDMI (2), DVI-D, RGB, Audio, USB
    Output
    Audio (Off/Fixed/Variable)
  • External Control
    RS232C in/out, RJ45 in, IR in

MECHANICAL SPECIFICATION

  • Bezel Width
    11.9 mm (T/R/L), 18 mm (B)

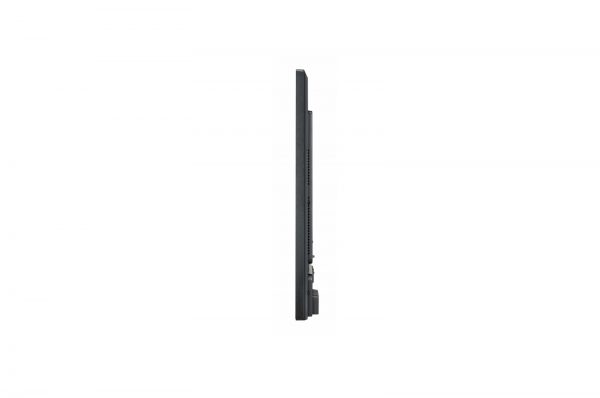

    Monitor Dimension (W × H × D)
    1,238 x 714.9 x 54 mm
  • Weight (Head)
    17.5 kg
    Monitor Dimension with Optional Stand Dimensions (W x H x D)
    1,238 x 773.4 x 219.6 mm
  • Weight (Head+Stand)
    20.8 kg
    Carton Dimensions (W × H × D)
    1,330 x 807 x 170 mm
  • Packed Weight
    21.7 kg
    VESA™ Standard Mount Interface
    300 x 300 mm

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Typ. / Max.
    100 W / 140 W
    Smart Energy Saving
    70 W

STANDARD (CERTIFICATION)

  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class “B” / CE / KC
  • ErP / Energy Star
    Yes (EU Only) / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+ / SuperSign Control

ACCESSORY

  • Basic
    Remote Controller, Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver
    Optional
    Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), Wi-Fi Dongle (AN-WF500), Touch Overlay (KT-T55E), OPS Kit (KT-OPSD)

GENERAL

  • Region
    Global
