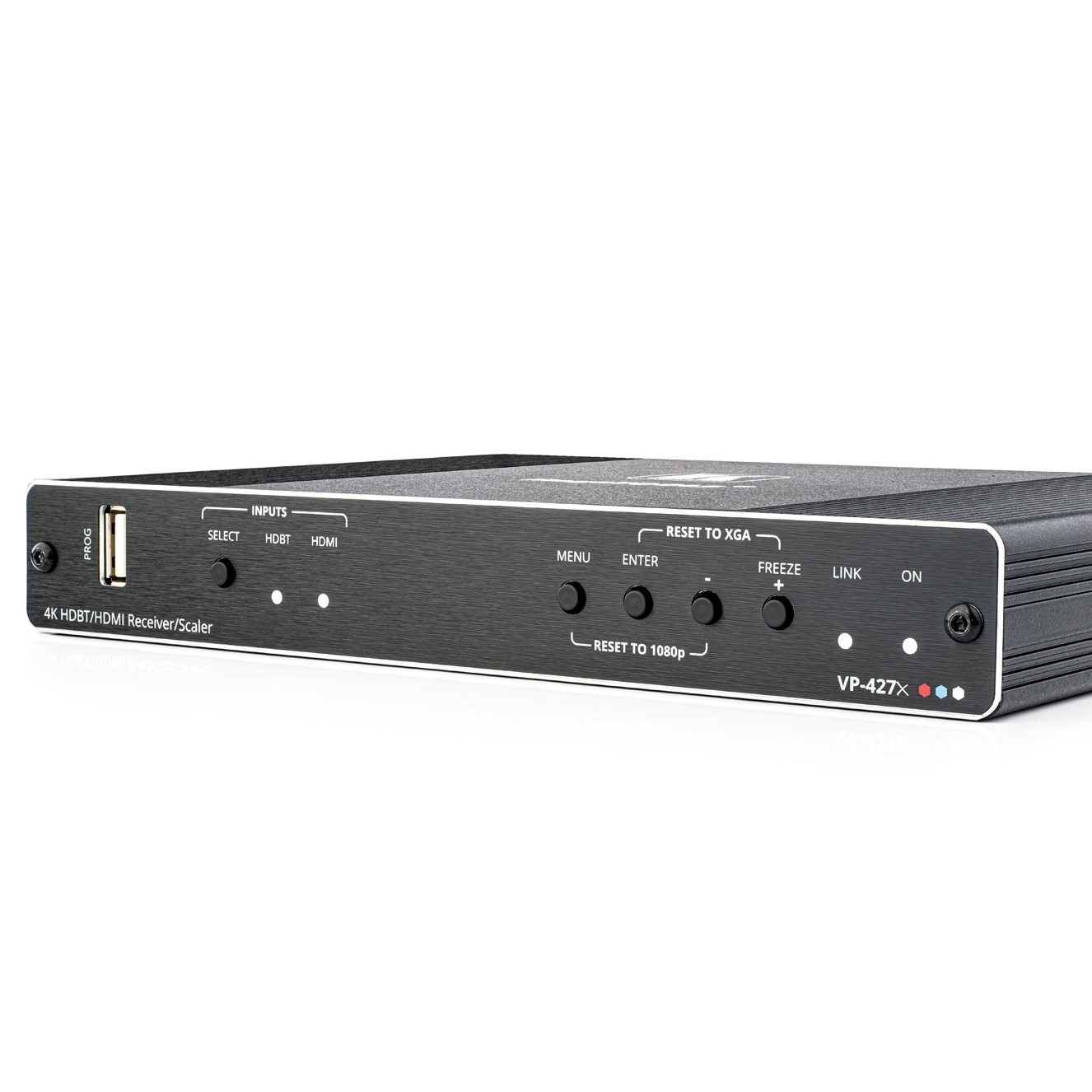

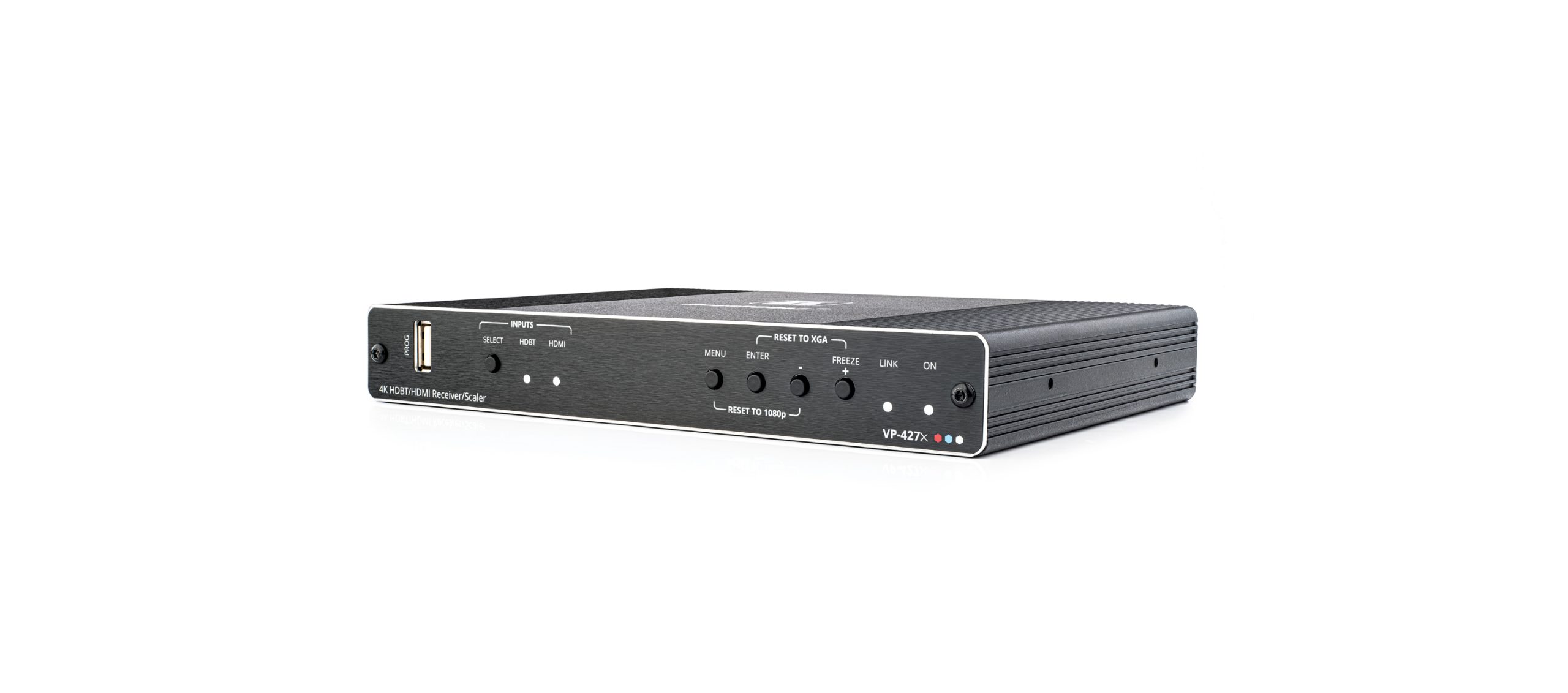

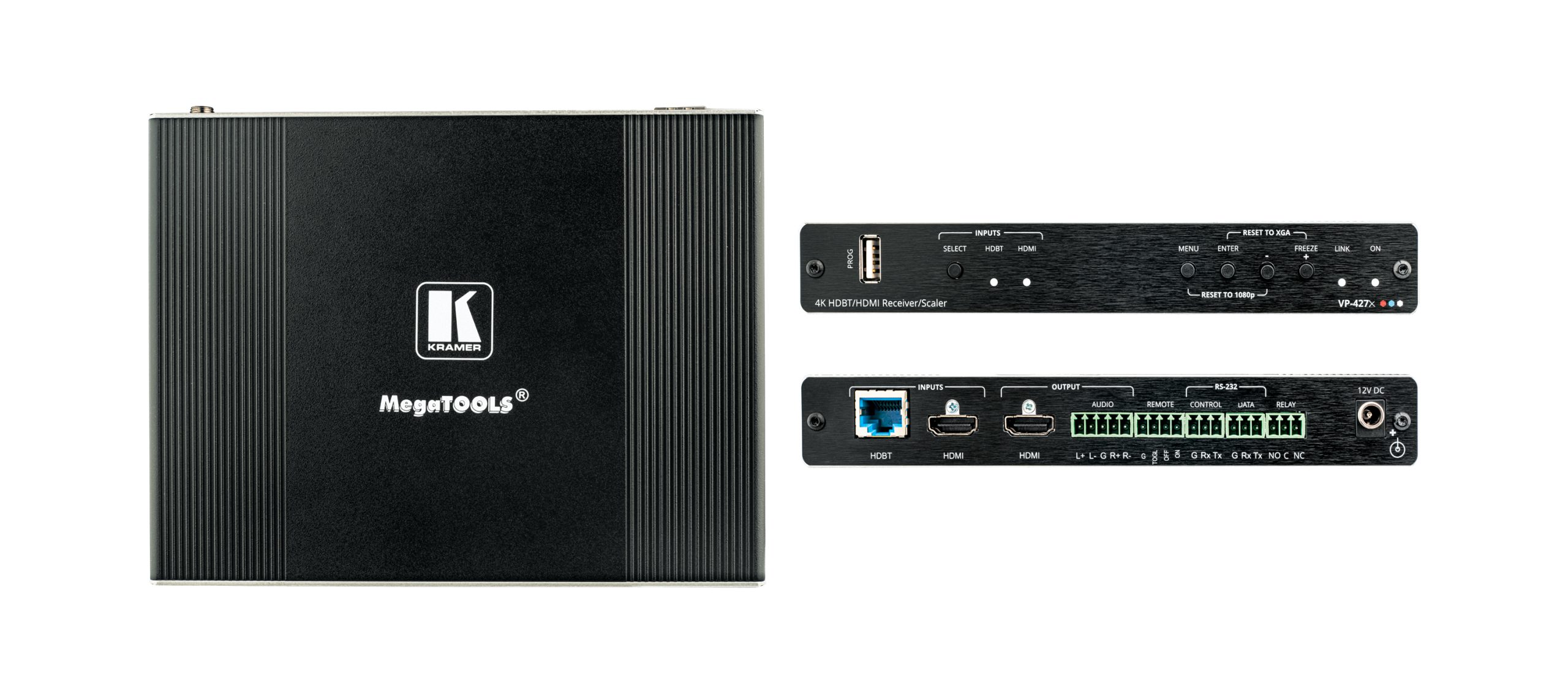

Kramer VP-427X

4K Auto–Switcher/Scaler Receiver over Long–Reach HDBaseT

Categories: , Tag:


VP−427X is a high−performance auto−switcher/scaler receiver for 4K HDMI™ over long−reach HDBaseT and a local HDMI input. VP−427X receives the HDBaseT signal from a compatible transmitter, converts it to HDMI and up− or down−scales the picture to any resolution up to 4K@60HZ (4:4:4) set by the user or automatically matching the resolution of the HDMI monitor. VP−427X enables extending video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

  •  HDMI Signal Extension — HDCP 1.4 / 2.2. 4K60, CEC, xvYCC color (on input).
  •  Audio De–embedding — Output the HDMI audio to a balanced stereo output.
  •  Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
  •  Includes relay outputs and easy connection to occupancy sensors and contact closure switches.
  •  I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation.
  •  ProcAmp Control — Contrast, brightness, color, etc.
  •  Freeze button.
  •  Convenient Unit Control and Configuration Options — Local control via front panel source switching buttons and OSD menu. Distance control via RS–232 serial commands transmitted by a PC, touch screen system or other serial controller and relay switches.
  •  Easy, Cost–effective Maintenance — Local firmware upgrade via USB connector.
  •  Easy and Elegant Installation — Compact MegaTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.


  •  Classrooms and lecture halls
  •  Meeting rooms
  •  Training facilities
  •  Collaborative classrooms
  •  Any space where BYOD support is required
