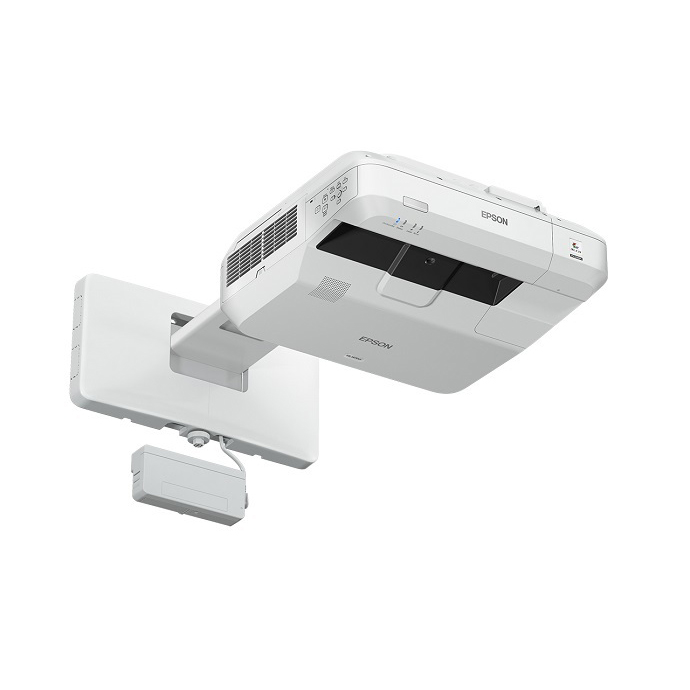

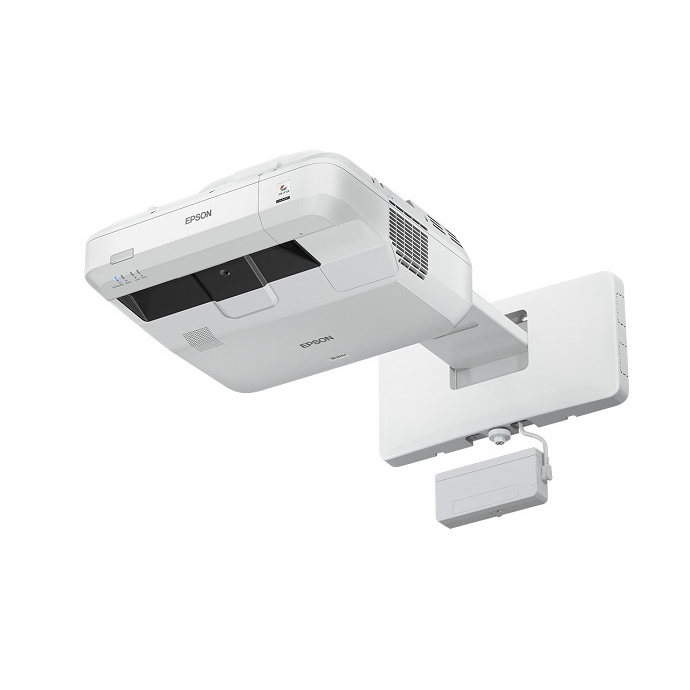

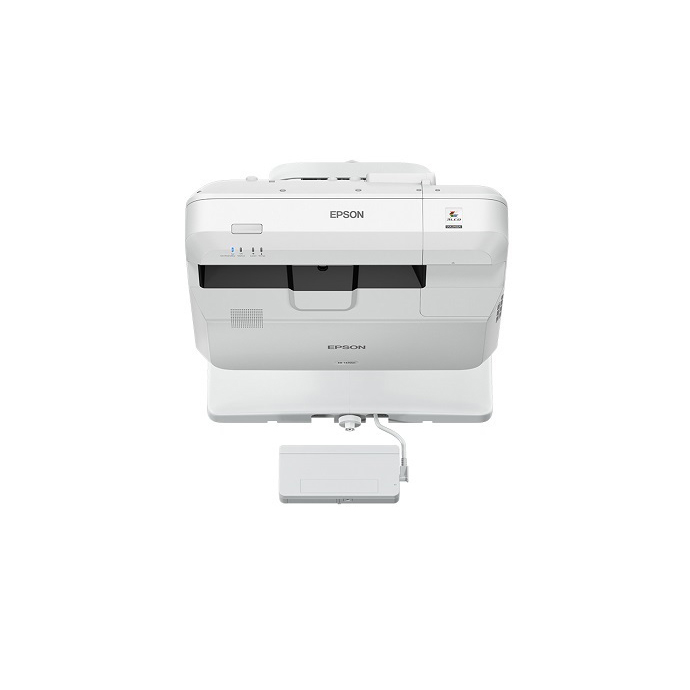

Epson EB-1470Ui Full HD Laser Ultra-Short Throw Interactive Projector

Bright Ultra-Short Throw Laser Interactive Projector

Big, bright and user-friendly, EB-1470Ui, technology and ideas into one seamless digital experience, facilitating better communication by turning any surface into an interactive area. Featuring Full HD WUXGA resolution, a clearly readable display up to 100″, plus 4,000 lumens of color brightness and 4,000 lumens of white brightness1., this touch-enabled solution enables impactful presentations. Turn it on and write or annotate content using a touch or gesture. Then save, print or email — even from mobile devices2. Or, stream HD content from Android™ devices using Miracast®.

    • Projection System: Epson 3-chip 3LCD
    • Native Resolution: WUXGA (1920 x 1200)
    • Color Brightness: 4,000 lumens
    • White Brightness: 4,000 lumens
Categories: ,


  • Reinvent your whiteboard — turn any wall or existing dry-erase board into a 100″ interactive display for more efficient meetings and collaboration, in the room or across the globe
    • Color Brightness: 4,000 lumens1
    • White Brightness: 4,000 lumens1
  • Full HD WUXGA display up to 100″ — for an optimal viewing experience and clear readability — 3x as big as a 60″ flat panel
  • Easy-to-use, touch-enabled interactivity — just turn on BrightLink Pro and start writing using your finger or the included pens
  • Wireless screen mirroring — stream Full HD 1080p content; mirror your Android device screen with Miracast
  • Capture, save and share — no need to transcribe meeting notes or snap a photo; easily save, print or email directly from your projector
  • Whiteboard sharing — both local and remote participants can simultaneously annotate content from mobile devices, computers and other Epson projectors
  • Wireless device compatibility — wirelessly display documents, files and photos from your iPad®, iPhone®, and Android™ mobile devices with the Epson iProjection™ App2

Continuous Display Mode — install two interactive displays side by side to achieve an even larger interactive display area3

Eco Features

  • RoHS compliant

Specifications Projector:

Throw Ratio Range:

  • 0.27 (Zoom: Wide)
  • 0.37 (Zoom: Tele)

Keystone Correction:

  • -3 degrees to +3 degrees

Size – projected distance:

  • 70″ – 100″

Color Reproduction:

  • Up to 1.07 billion colors

Contrast Ratio:

  • Over 2,500,000:1

Projection System:

  • Epson 3-chip
  • 3-chip technology

Projection Method:

  • Front / wall mount / table

Driving Method:

  • Epson Poly-silicon TFT Active Matrix

Pixel Number:

  • 2304000 dots (1920 x 1200) x 3

Color Brightness – Color Light Output:

  • 4000 lumens1

White Brightness – White Light Output:

  • 4000 lumens1

Aspect Ratio:

  • 16:10

Native Resolution:

  • 1920 x 1200 (WUXGA)

Laser Type:

  • 20,000 hours (Normal Mode)


Power Supply Voltage:

  • 100 – 240 V ±10%
  • 50/60 Hz

Power Consumption:

  • Normal Mode: 423 W



  • 11.4 kg
