Description
靈活的 4K 連接性
Pulse 4K 是一款功能強大的 4K60 多層視頻混合器與無縫簡報切換器，配備十組輸入，其中包括八組 4K60 輸入與兩組 1080p 輸入，並採用用戶可選的 HDMI™ 與 3G-SDI 連接器。Pulse 4K 具備兩組 4K60 鏡像輸出的 HDMI 與 SDI 接口，可配置為 PGM 與 AUX 輸出，或作為兩組獨立的 PGM 輸出。此外，Pulse 4K 還配備專用多畫面監視器，可監看 PGM 與 Preview 畫面以及所有輸入訊號。
毫不妥協的品質
基於極其穩健可靠的 Midra 4K（基於 FPGA 的硬體）平台，以及承襲自 LivePremier 系列的第五代縮放引擎，Pulse 4K 具備超低延遲的 4K60 10-bit 4:4:4 影像處理能力、毫不妥協的視頻品質、真正的無縫切換、HDR 支援與 HDCP 2.2 相容性，使其成為中型現場活動與固定安裝的理想解決方案。
智慧功能
Pulse 4K 提供數十種強大功能，協助您打造出色的 AV 簡報：自訂輸出格式、任何輸入或輸出的直播、亮度/色度去背、輸入層級的 Cut 與 Fill、AOI、高達 144Hz 的高幀率… Pulse 4K 還允許在所有輸入與輸出上進行數位音訊解嵌或嵌入。另可選購音頻選項，為 Pulse 4K 增加 Dante 32×32 音訊網路支援。
強大且靈活的控制選項
Pulse 4K 的設計可完全透過易於操作的前面板進行操控。您也可以使用內建的直覺式 HTML5 網頁介面 Web RCS，該介面專為簡化設定流程並確保對簡報進行完美控制而設計。Pulse 4K 還支援透過標準 TCP/IP 插座連接進行乙太網路控制，相容於所有主流第三方控制系統，並支援 SNMP 管理。Pulse 4K 亦可透過免費的 Crestron 驅動程式，以及 AW VideoCompositor（一款獨特的拖放式可自訂 Crestron 使用者介面）進行控制。此外，Pulse 4K 可搭配多種遠端控制面板選項進行操作，例如功能強大的活動控制器 RC400T，或體積精巧的 Control Box3 與 Shot Box2。Pulse 4K 亦相容於多種控制軟體或控制器，如 Universe、Companion 或 SKAARHOJ Air Fly Pro。
主要特點
10 組輸入，包含 8 組 4K60 輸入與 2 組 2K60 輸入
兩組 4K60 PGM 輸出，配備鏡像的 12G-SDI 與 HDMI 2.0 接口
混合器模式：
1 組高達 4K60 的 PGM 輸出，包含 1 路即時背景 + 2 路混音 4K 圖層（或 4 路分割圖層）+ 1 路前景 4K 圖層
1 組高達 1080p60 的 AUX 輸出
矩陣模式：
2 組高達 4K60 的 PGM 輸出，每組輸出包含 1 路即時背景 + 1 路混音 4K 圖層（或 2 路分割圖層）+ 1 路前景 4K 圖層
1 組專用多畫面監視器，支援可調整大小的 widgets，包含時鐘、倒數計時與計時器（最高解析度 2560×1600@60）
4K60 10-bit 4:4:4 處理 – 超低延遲（60Hz 時為 16 毫秒）
相容於 HDR10 與 HLG – 內建 SDR/HDR 轉換器
基於 3D LUT 的色彩空間轉換與色彩校正
所有即時訊號源皆支援無縫淡入淡出切換
基於 RTMP 的直播功能，任何輸入或輸出最高可達 1080p30

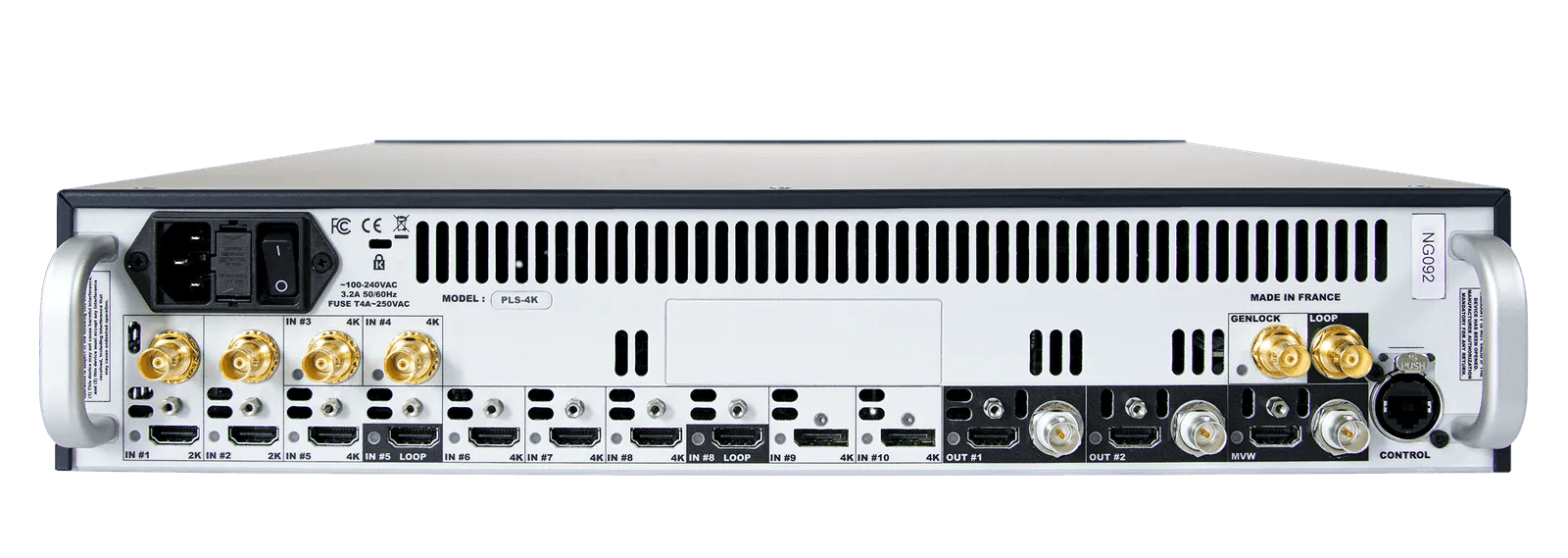

靈活的 4K 連接性：HDMI 2.0、DP1.2、12G-SDI
8 路並行 4K 靜態影像，支援 Alpha 通道
進階 EDID 管理
相容於 HDCP 1.4 與 HDCP 2.2
內建 SNMPv2 MIB
Web RCS：高度直觀的 HTML5 網頁介面
圖形化使用者介面顯示即時視訊縮圖

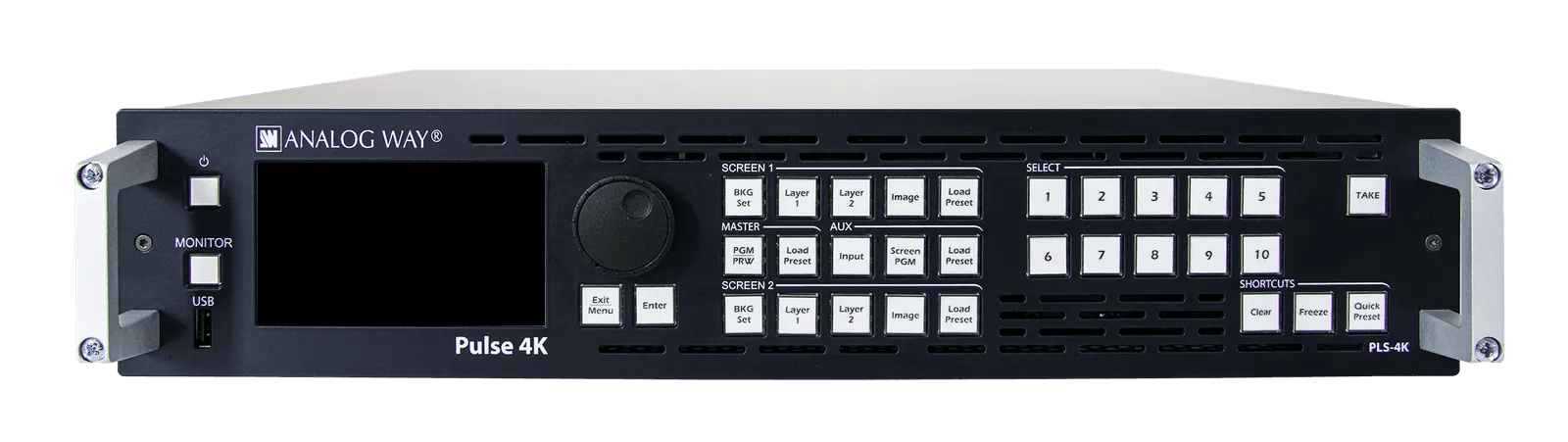

可從前面板進行完整設定與操作
進階音訊處理與動態路由
創新的「快速預設」功能
支援非標準顯示應用的自訂輸出格式
區域感興趣功能，可自訂輸出的有效顯示區域
輸入、圖層與畫面凍結功能
輸入層級的 Cut 與 Fill 功能
可輕鬆建立並調用螢幕與 AUX 輸出的記憶設定
功能完整的模擬器，可進行離線配置與練習
低噪音：1 米處平均噪音 45dB
專用 BNC 環路接口，支援 Genlock、Blackburst 與三電平同步
遠端服務與維護
備份與還原功能
Versatile 4K Connectivity
The Pulse 4K is a powerful 4K60 multi-layer mixer and seamless presentation switcher equipped with ten inputs, including eight 4K60 inputs and two 1080p inputs with user-selectable HDMI™ and 3G-SDI connectors. The Pulse 4K has two 4K60 mirrored HDMI and SDI outputs that can be configured either as Program & AUX or as two independent Program outputs. In addition, the Pulse 4K has a dedicated multiviewer to monitor your Program and Preview screens as well as all your inputs.
Quality without Compromise
Based on the extremely robust and reliable Midra 4K (FPGA-based hardware) platform as well as on the 5th generation scaling engine inherited from the LivePremier series, the Pulse 4K features ultra-low latency 4K60 10-bit 4:4:4 image processing, uncompromising video quality, true seamless switching, HDR support and HDCP 2.2 compatibility, which makes it an ideal solution for your medium-sized live events and fixed installations.
Smart Functionalities
The Pulse 4K offers dozens of powerful functionalities that will help you to produce elegant AV presentations: custom output formats, livestreaming of any Input or Output, Luma/Chroma keying, Cut and Fill at input level, AOI, HFR up to 144Hz… The Pulse 4K also allows to de-embed or embed digital audio on all the inputs and outputs. An audio option is available to add Dante 32×32 audio networking support to the Pulse 4K.
Powerful and Flexible Control Options
The Pulse 4K has been designed to be entirely operated from the easy-to-use front panel. You can also use the on-board intuitive HTML5-based user interface, the Web RCS, designed to allow for the ease of setup and to ensure flawless control of your presentations. The Pulse 4K also features Ethernet control via a standard TCP/IP socket connection supported by all major third-party control systems as well as SNMP management. The Pulse 4K can also be controlled by the free Crestron driver as well as by AW VideoCompositor, a unique drag and drop customizable Crestron user interface. Additionally, the Pulse 4K can be operated by a comprehensive range of remote control panel options such as the powerful event controller RC400T or the compact Control Box3 and Shot Box2. The Pulse 4K is also compatible with various control software or controller such as Universe, Companion or SKAARHOJ Air Fly Pro.
Key features
10 inputs including 8x 4K60 inputs and 2x 2K60 inputs
Two 4K60 PGM outputs with mirrored 12G-SDI and HDMI 2.0 plugs
Mixer mode:
1 PGM output up to 4K60, with 1 live background + 2 mixing 4K layers (or 4 split layers) + 1 foreground 4K image layer
1 AUX output up to 1080p60
Matrix mode:
2 PGM outputs up to 4K60, with 1 live background + 1 mixing 4K layer (or 2 split layers) + 1 foreground 4K image layer per output
1 dedicated multiviewer with resizable widgets, including clocks, countdown and timers (max. resolution 2560×1600@60)
4K60 10-bit 4:4:4 processing – ultra low latency (16 msec @60Hz)
Compliant with HDR10 and HLG – Built-in SDR/HDR converters
Colorspace conversion & color corrections based on 3D LUTs
Seamless crossfade on all live sources
RTMP-based livestreaming of any input or output up to 1080p30
Versatile 4K connectivity: HDMI 2.0, DP1.2, 12G-SDI
8x 4K concurrent still images with alpha channel support
Advanced EDID management
Compatible with HDCP 1.4 and HDCP 2.2
Built-in SNMPv2 MIB
Web RCS: highly intuitive HTML5-based user interface
Live video thumbnails shown on GUI
Fully configurable and operable from the front panel
Advanced audio processing and dynamic routing
Innovative ‘Quick Preset’ feature
Custom output formats for non-standard display applications
Area of Interest feature to customize active areas of outputs
Freeze of inputs, layers and screens
Cut and Fill at input level
Easily create and recall memories on your screen and AUX outputs
Fully functional simulator for offline configuration and practice
Quiet: 45dB average noise at 1m
Dedicated BNC with loop for Genlock, Blackburst and tri-level sync
Remote services and maintenance
Backup and restore functions
