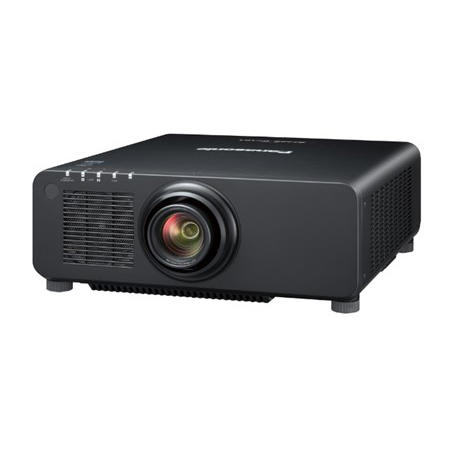

Panasonic PT-RZ660 Installation type Solid Shine DLP projector

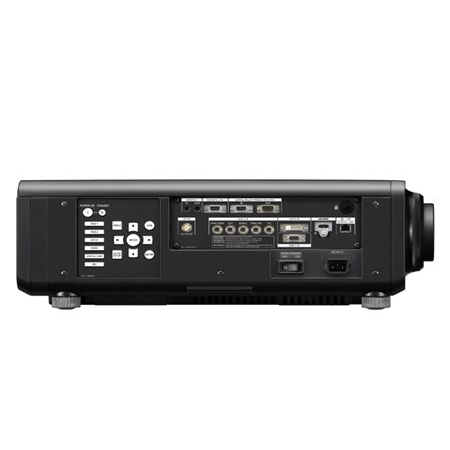

Panasonic PT-RZ660 Installation type Solid Shine DLP projector - Image 2

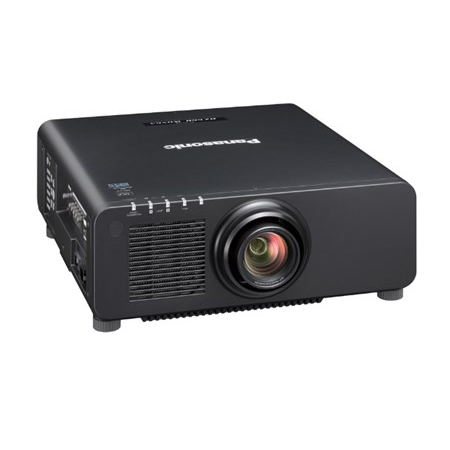

Panasonic PT-RZ660 Installation type Solid Shine DLP projector - Image 3

Panasonic PT-RZ660 Installation type Solid Shine DLP projector

  • Laser diode light source, no maintenance for 20,000 hours
  • Brightness: 6200 lumens (centre) / 6000 lumens
  • Contrast ratio: 10000:1
  • Edge blending & multi-unit brightness control function
  • Digital Link transmits digital signals up to 100 m with a single cable
  • Free 360 degree rotation
  • Geometric adjustment function enable adjustments of images for projection onto spherical, cylindrical and other specially shaped screens. Optional kit ET-UK20 Geometry Manager Pro Software also available
  • Optional digital interface box ET-YFB100G or ET-YFB200G
  • Optional 0.38:1 extra short throw lens ET-DLE035
  • Backup input setting allows smooth switching to a backup input signal should the primary signal be disrupted
分類： , ,

商品說明

  • Brightness: 6200 lumens (centre) / 6000 lumens
  • Contrast ratio: 10000:1
  • 0.67″ 1920 x 1200 16:10 DLP panel
General
Panel Type 0.67″ DLP x 1
Lamp N.A. (Laser diodes light source)
Brightness 6,200 lumens (centre) / 6,000 lumens
Lens F1.7-1.9, f25.6-35.7mm
Contrast (Full on / Full off) 10000:1
Resolution (Native / maximum) WUXGA (1920×1200)
Video Compatibility PAL, PAL-M, PAL-N, PAL60, SECAM, NTSC, NTSC4.43
Screen Size 50″ – 600″
Lens Shift Vertical +50%, -16%, horizontal +30%, -10%
Keystone Correction Range Vertical ±40°, horizontal ±15%
Weight 23.2kg
Dimensions (W x H x D) 498 x 200 x 581 mm
Power Consumption 700W
Terminals SDI (BNC x 1)
HDMI (19-pin x 1)
DVI-D (24-pin x 1)
RGB1 (BNC x 5)
RGB2 (D-sub HD 15-pin (female) x 1)
Serial / Multi Projector Sync In (D-sub 9-pin (female) x 1)
Serial / Multi Projector Sync Out (D-sub 9-pin (male) x 1)
LAN/ Digital Link (RJ-45 x 1)
Remote1,2 in；Remote1 out
Optional Accessories ET-PKD120H (High ceiling mount bracket)
ET-PKD120S (Low ceiling mount bracket)
ET-PKD130H (6 axis adjustment high ceiling mount bracket)
ET-PKD130B (Attachment for ceiling mount bracket)
ET-UK20 (Geometry Manager Pro upgrade kit)
ET-CUK10 (Auto Screen Adjustment upgrade kit)
Optional Lens Optional Lens

–
Zoom lens ET-DLE060 (zoom lens, 0.6-0.801:1)
ET-DLE085 (zoom lens, 0.8-1.0:1)
ET-DLE105 (zoom lens, 0.978-1.32:1)
ET-DLE150 (zoom lens, 1.3-1.9:1)
ET-DLE250 (zoom lens, 2.3-3.6:1)
ET-DLE350 (zoom lens, 3.6-5.4:1)
ET-DLE450 (zoom lens, 5.4-8.6:1)
Fixed focus lens ET-DLE035 (fixed focus lens, 0.38:1)
ET-DLE055 (fixed focus lens, 0.8:1)
Standard Accessories Wireless remote control unit
Battery for remote control unit
Power cord
CD-ROM software
