Kramer WP-580T

4K60 4:2:0 HDMI Wall–Plate Receiver over Long–Reach HDBaseT

分類: , 標籤:

商品說明

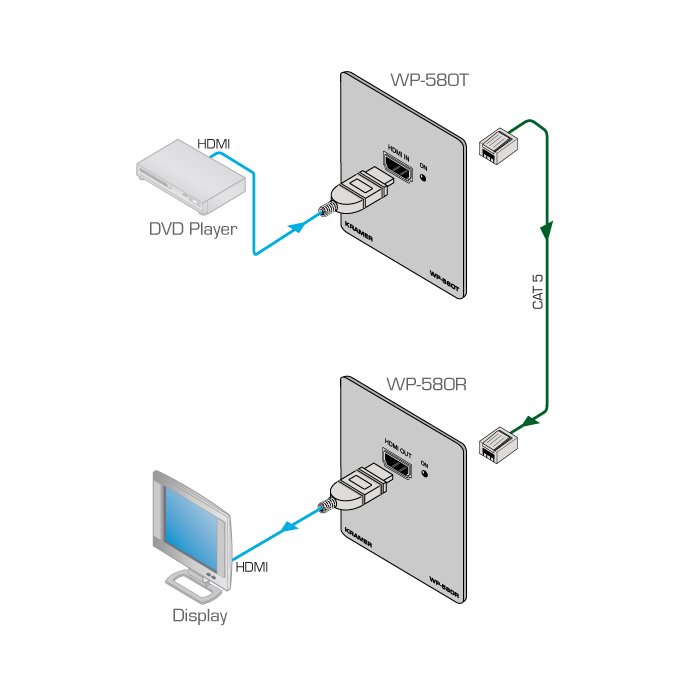

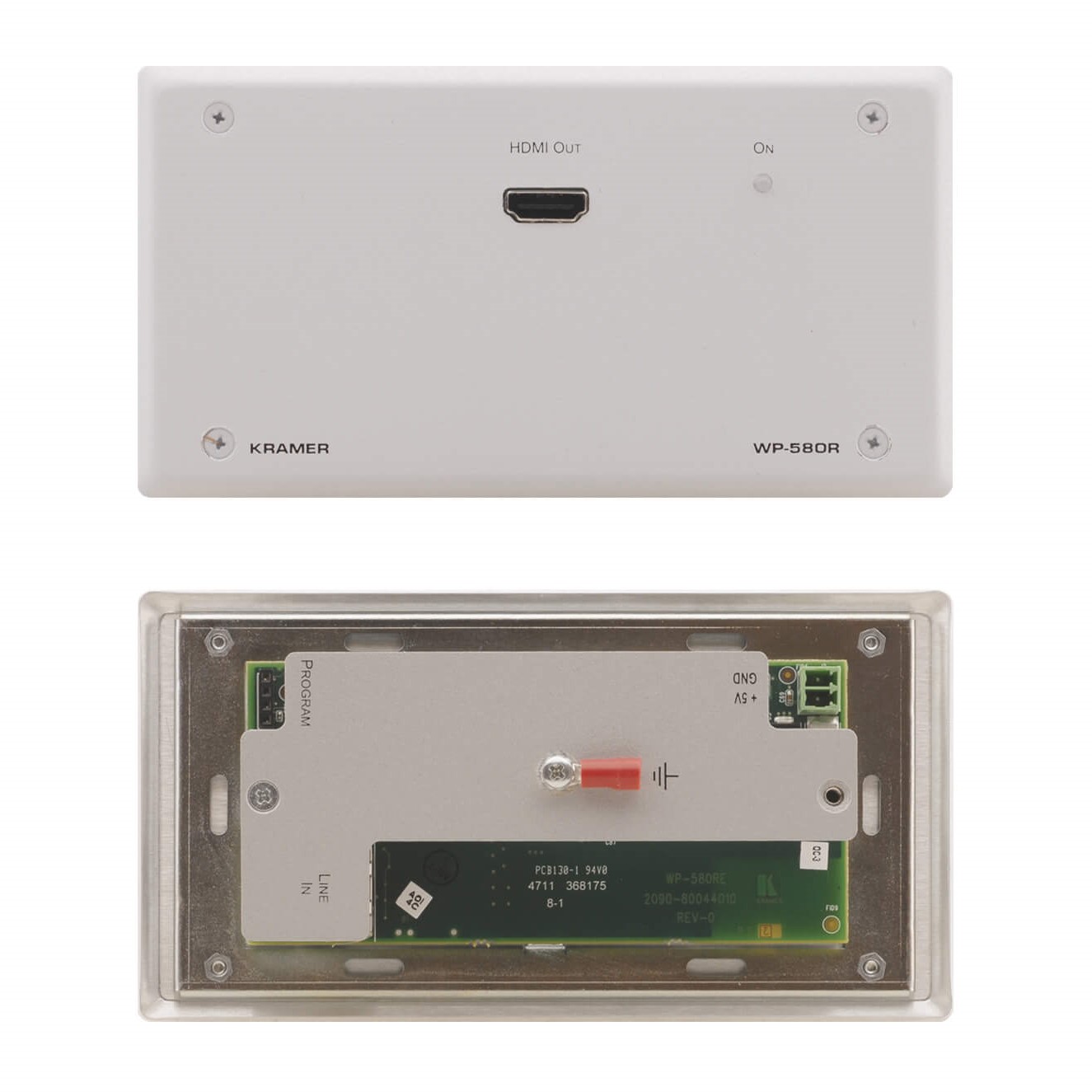

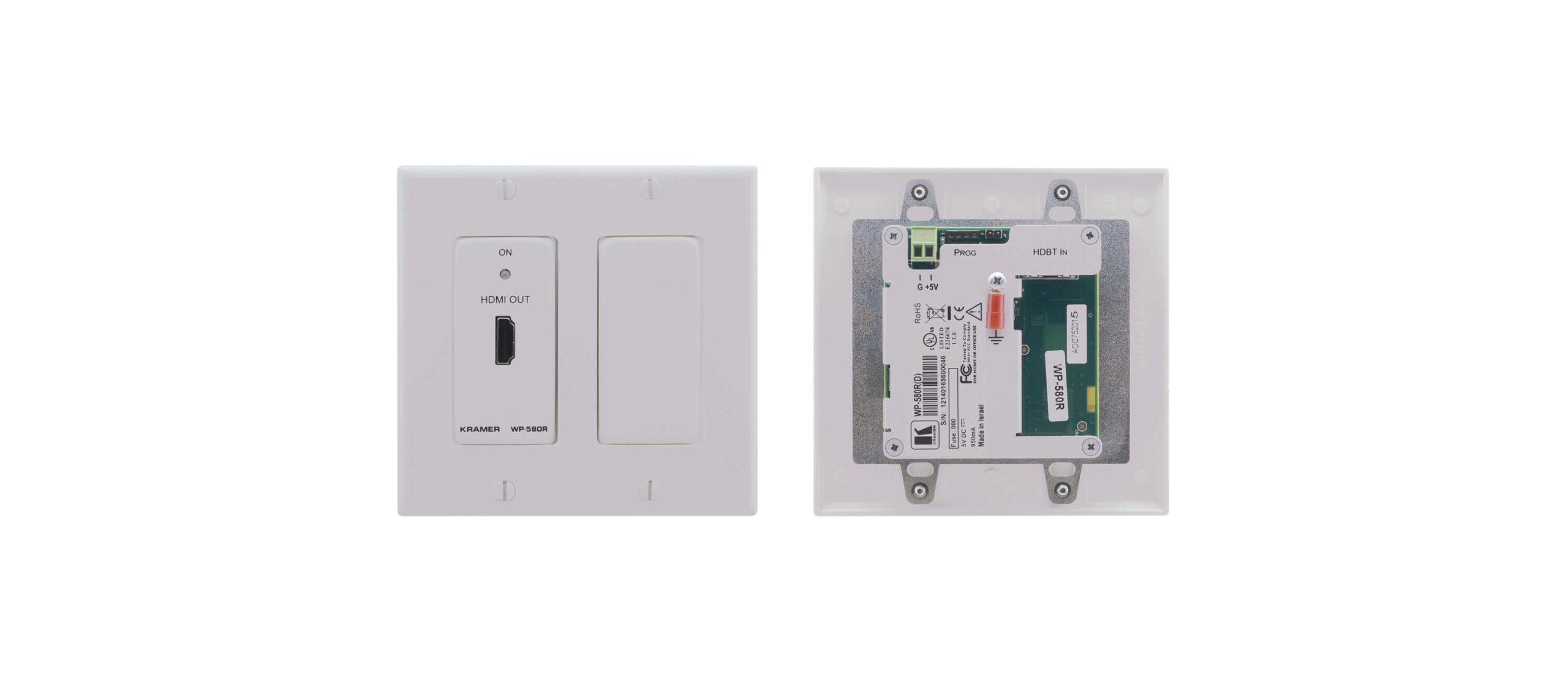

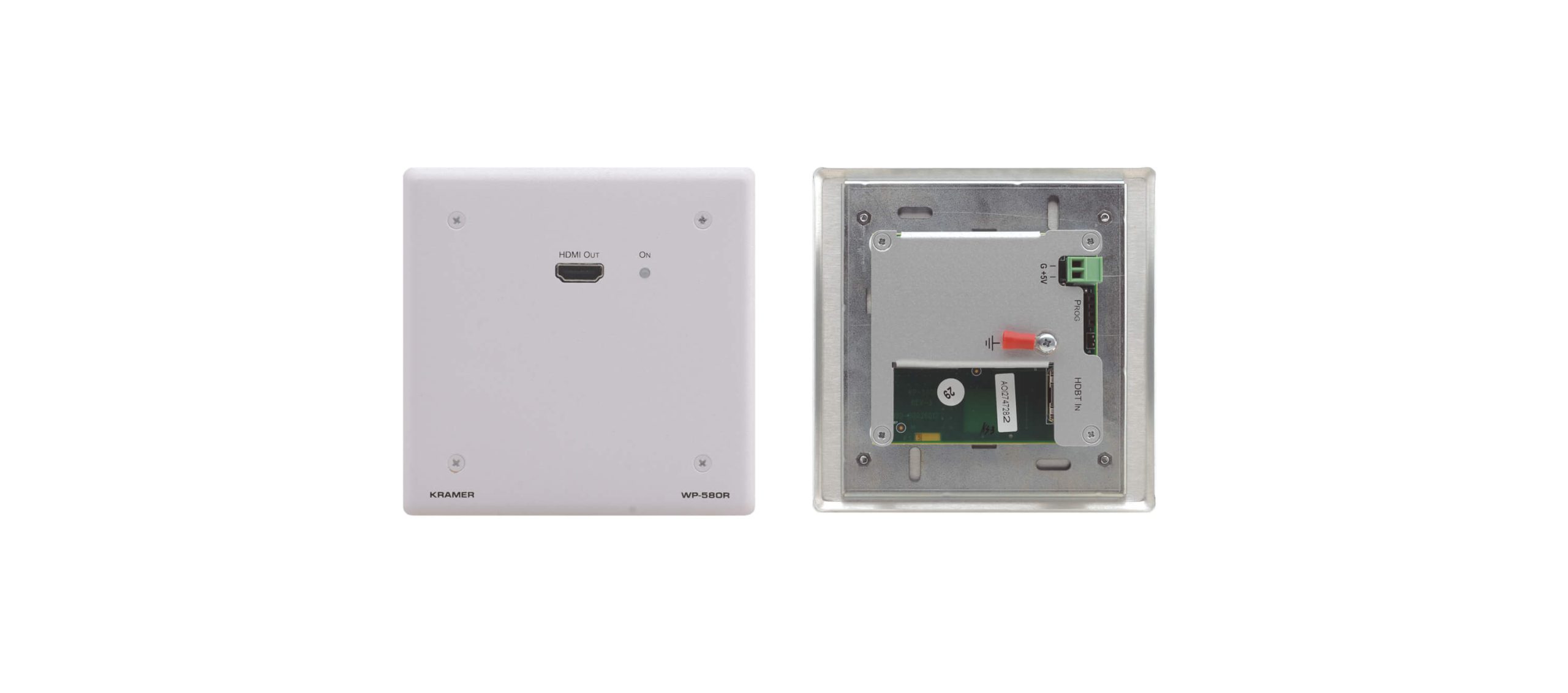

The WP−580R is a high−performance, HDBaseT twisted pair wall plate receiver for for 4K@60Hz (4:2:0) HDMI signals. The WP−580R receives an HDBaseT twisted pair signal from the WP−580T and converts it back into 4K@60Hz (4:2:0) HDMI signals. The WP–580R(D) model is supplied with a Midway Size 2 gang DECORA® design frame.

  •  Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
  •  HDTV Compatible.
  •  HDCP 2.2 Compliance.
  •  HDBaseT™ Technology.
  •  HDMI Support — Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD.
  •  3D Pass–Through.
  •  EDID PassThru — Passes EDID signals between the source and display.
  •  2K Support.
  •  System Range — Up to 70m (230ft).
  •  Cable — For optimum range and performance using HDBaseT™, use Kramer’s BC–UNIKat cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non–Kramer CAT 6 cable may not reach these ranges.
  •  Indicators — Status LEDs for input, output, link and power.

APPLICATIONS

  •  Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios.
