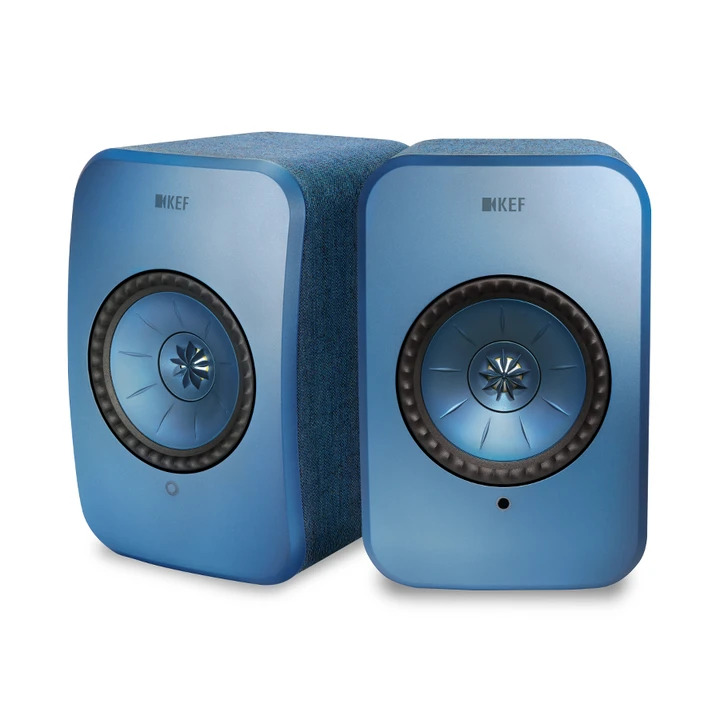

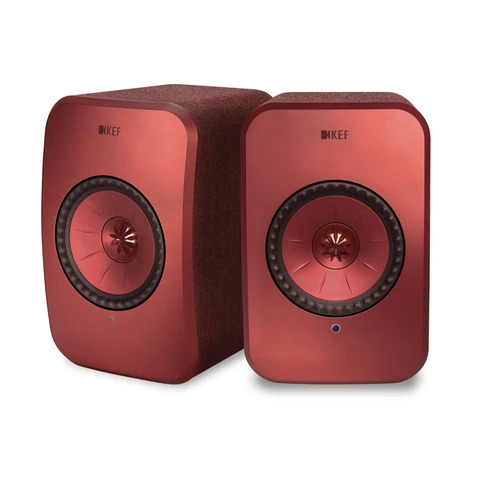

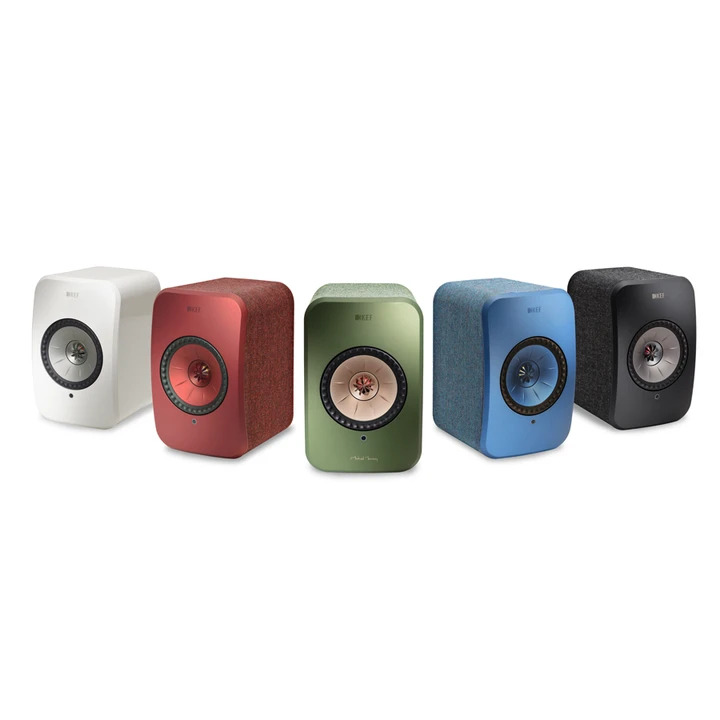

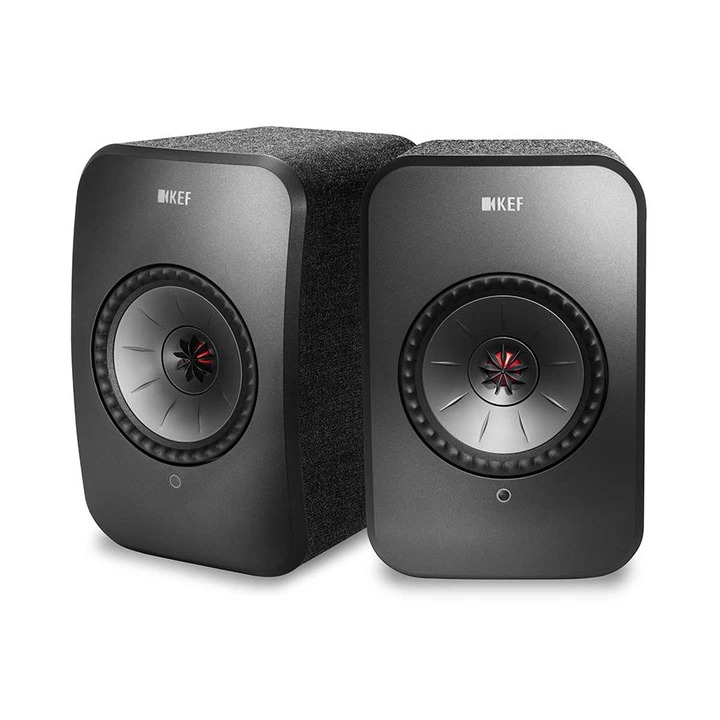

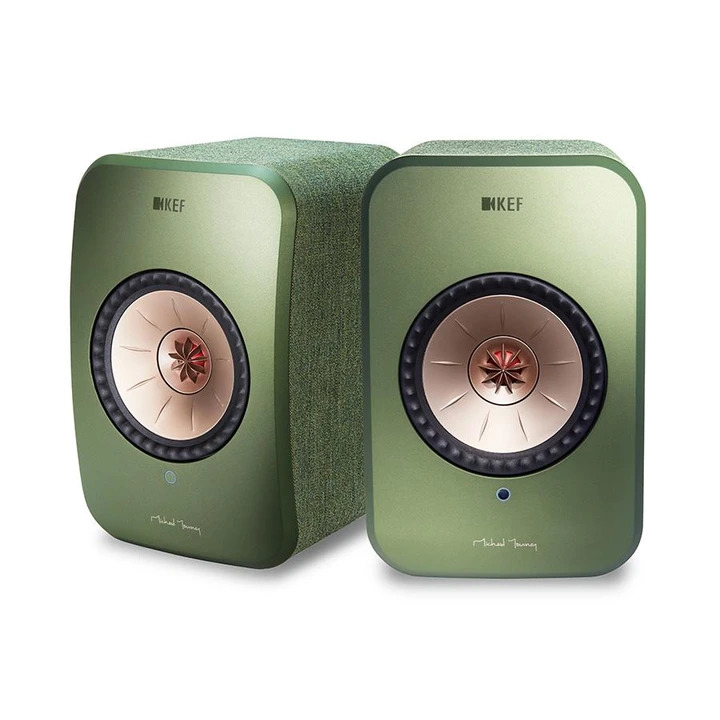

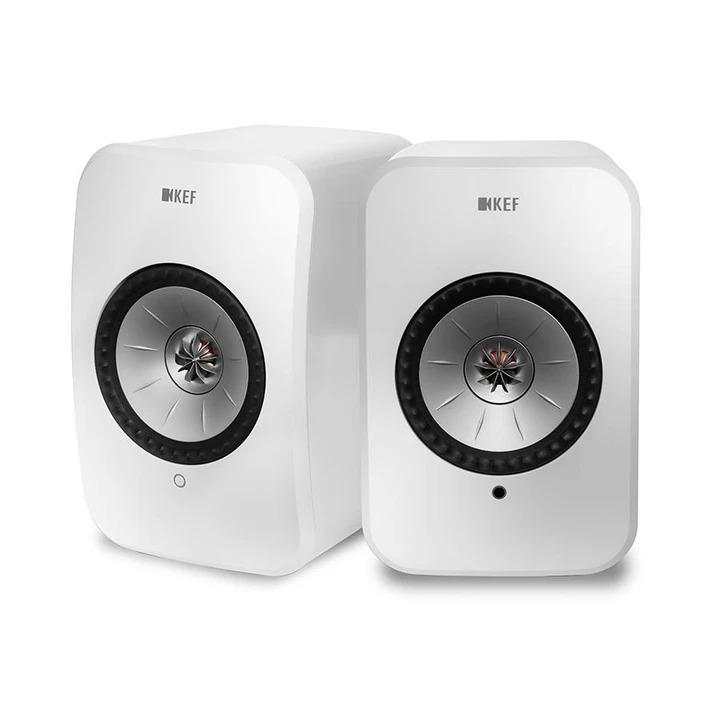

KEF LSX

Dimension (H x W x D)

240 x 155 x 180 mm (9.5 x 6.1 x 7.1in.)

WEIGHT

3.6kg (7.9lbs)
3.5kg (7.7lbs))

WI-FI NETWORK STANDARD & frequency band

Dual-band 2.4GHz/5GHz
IEEE 802.11a/b/g/n

Driver units

Uni-Q driver array:
HF: 19mm (0.75in.) aluminium dome
LF/MF: 115mm (4.5in.) magnesium/aluminium alloy cone

Inputs

2.4GHz/5GHz Dual-band Wi-Fi network
Bluetooth 4.2 with aptX® codec
TOSLINK Optical
3.5mm Auxiliary Input
RJ45 Ethernet (For network)

Output

Subwoofer Output
5V2A DC Output

AMplifier output power

LF: 70W     HF: 30W

Bluetooth range & memory

10m
8 devices

Bluetooth Frequency

2.402GHz – 2.48GHz

Bluetooth Power

2.5mW (Bluetooth Class 2 Device)

resolution

Input:
Supports up to 192kHz/24bit

Output:
Wireless mode: 48kHz/24bit
Cable mode: 96kHz/24bit

Master and Slave speaker
Connection

Wireless: Propriety 2.4GHz
Wired: RJ45 Ethernet
Depending on connection settings

maximum outpuT(SPL)

102dB

Power Input

100 – 240VAC 50/60Hz

WIreless connectivity

TIDAL

Frequency range

Frequency Range (-6dB)
Measured at 85dB/1m
49Hz – 47kHz (More bass extension)
52Hz – 47kHz (Standard)
55Hz – 47kHz (Less bass extension)
Depending on speaker settings

frequency response

Frequency Response (±3dB)
Measured at 85dB/1m
54Hz – 28kHz (More bass extension)
59Hz – 28kHz (Standard)
69Hz – 28kHz (Less bass extension)
Depending on speaker settings

Third Party Support

Mounting inserts for supporting wall mount
Supports 3rd party remote programme
Supports IP Control

Master Speaker

Slave Speaker

商品說明

Give your music the space it deserves.

The convenience and connectivity of wireless. The emotion and detail of true high-resolution stereo. And all from a compact system designed to fit almost anywhere. LSX is the speaker system for the way we listen today.
