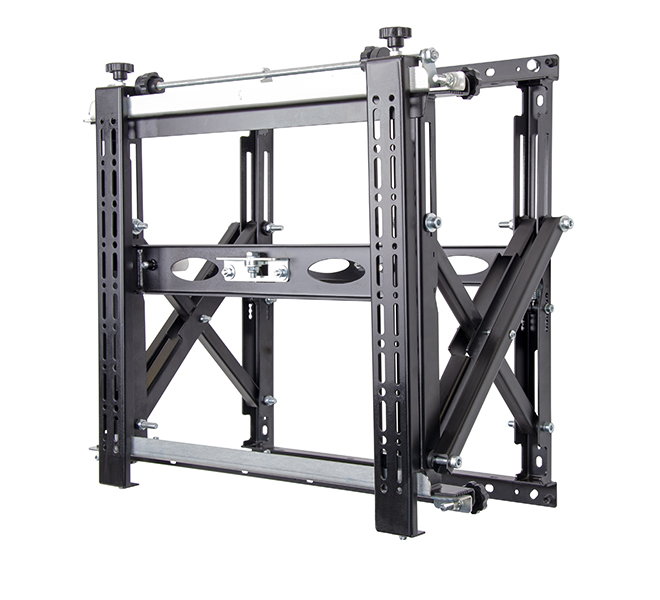

BTech BT8310XL - Heavy Duty Pop-Out Flat Screen Wall Mount
BTech BT8310XL - Heavy Duty Pop-Out Flat Screen Wall Mount - Image 2
BTech BT8310XL - Heavy Duty Pop-Out Flat Screen Wall Mount - Image 3
BTech BT8310XL - Heavy Duty Pop-Out Flat Screen Wall Mount - Image 4

BTech BT8310XL – Heavy Duty Pop-Out Flat Screen Wall Mount

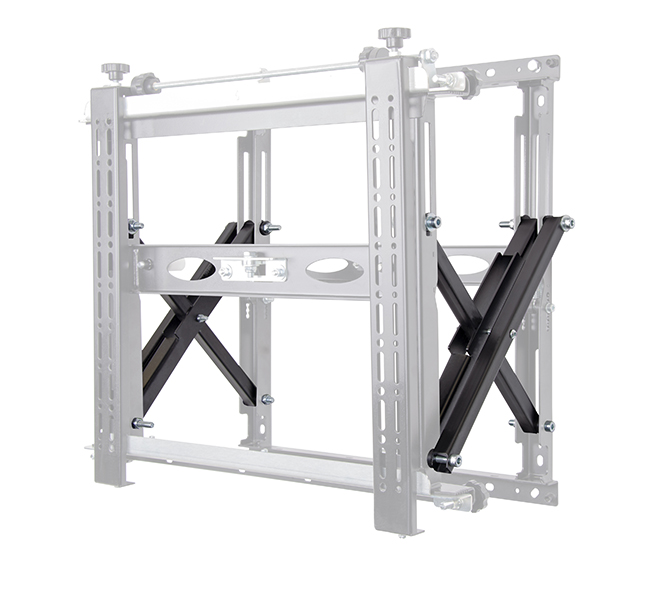

Designed to mount extra-large screens, the heavy duty BT8310XL is capable of mounting screens up to 125kg in both landscape and portrait orientations. With reinforced scissor arms, this wall mount is ideal for mounting the largest sized screens and features an easy to use pop-out function and 8-point micro-adjustment, making installation and alignment into a recessed wall both quick and simple. Access to the rear or sides of the screen for maintenance or cabling is possible through the pop-out feature, with an additional locking kit accessory available (separately) to prevent unauthorised access if required.

重型 BT8310XL 專為安裝超大螢幕而設計，能夠以橫向和縱向安裝重達 125 公斤的螢幕。這款壁掛支架配備加固剪刀臂，是安裝超大尺寸螢幕的理想之選，並具有易於使用的彈出功能和 8 點微調功能，即使在凹牆中也能快速輕鬆地進行安裝和對齊。透過彈出功能，可從螢幕後方或側面進行維護或佈線，並可單獨購買額外的鎖定套件配件，以防止未經授權的存取。

分類：

商品說明

Features

  • Perfect solution for mounting large heavy duty screens into a recessed wall
  • Suitable for landscape or portrait screen mounting

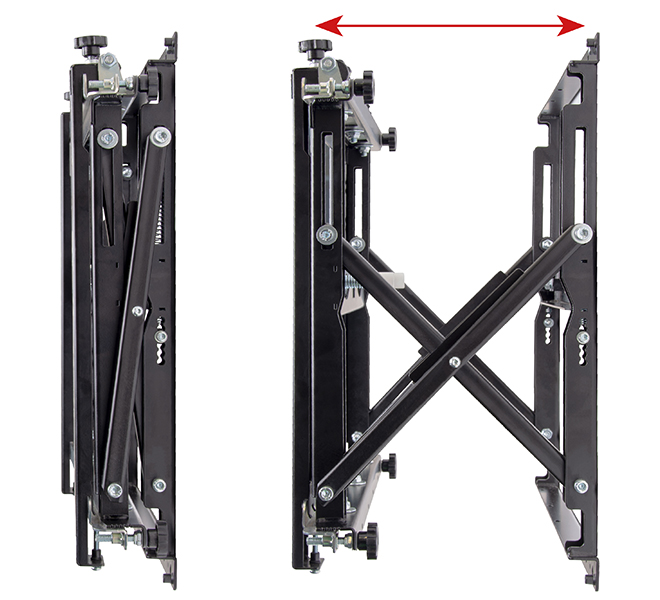

  • Push to open / push to close system provides quick and easy service access
  • Tool-less micro-adjustments at 8 points for seamless display alignment
  • Suitable for both wall or pole mounting
  • Integrated cable management
  • Locking kit (BT8310-LK) to prevent accidental pop-out of mount is also available (separately)
  • Safety screws help prevent unauthorised removal of screens

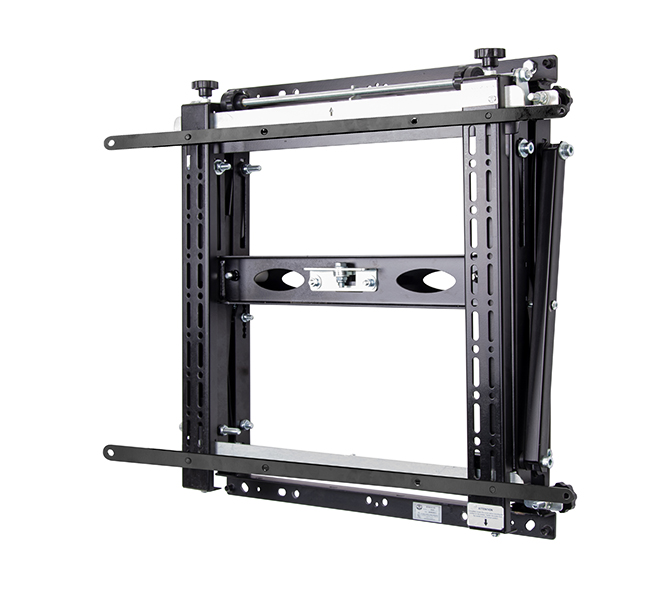

  • Includes Interface Adaptor Arms for use with screens with VESA 600 x 400 fixings
    (larger interface adaptor ams are available, contact us for more information)
  • All mounting hardware included
  • 將大型重型螢幕安裝到嵌入式牆面的完美解決方案
  • 適用於橫向或縱向螢幕安裝
  • 按壓開啟/按壓關閉系統，提供快速便捷的維護通道
  • 8 個點位無需工具即可微調，實現顯示器的無縫對齊
  • 適用於壁掛式或立杆式安裝
  • 整合線管理
  • 鎖定套件 (BT8310-LK) 可防止支架意外彈出（另售）
  • 安全螺絲有助於防止未經授權的螢幕拆卸
  • 包含介面轉接器臂，可與 VESA 600 x 400 固定裝置的螢幕搭配使用（可提供更大的介面適配器臂，請聯絡我們以了解更多資訊）
  • 內含所有安裝硬體

Specifications

  • Recommended screen size: 42″ (106″) – 120″ (305″)

  • Min / Max Load: 70kg (154lbs) – 125kg (275lbs)

  • VESA® compatibility (as standard): 200 x 100 to 400 x 400

  • VESA® compatibility (with included Adaptor Arms): up to 600 x 400*

  • Flat to wall depth: 101mm* (4″) (+/-7mm (0.3″) with micro-adjustment)

  • Popped out depth: 293mm* (11.5″) (+/-7mm (0.3″) with micro-adjustment)

  • Available in Black

* Please note using the Interface Adaptor Arms to mount VESA 600 x 400 screens will increase the
total depth of the product by 6mm (0.2″), for a total depth of 107mm (4.2″), or 299mm (11.8″) whilst popped out (+/-7mm (0.3″) micro-adjustment).

  • 建議螢幕尺寸：42 吋 (106 吋) – 120 吋 (305 吋)

  • 最小/最大承重：70 公斤 (154 磅) – 125 公斤 (275 磅)

  • VESA® 相容性（標準）：200 x 100 至 400 x 400

  • VESA® 相容性（含適配臂）：最大可達 600 x 400*

  • 平放至牆面深度：101 公釐* (4 吋)（微調時 ±7 公釐 (0.3 吋)）

  • 彈出深度：293 mm* (11.5 吋)（微調時 ±7 公釐 (0.3 吋)）

  • 黑色可選

* 請注意，使用接口適配臂安裝 VESA 600 x 400 螢幕將使產品總深度增加 6 毫米 (0.2 英寸)，達到 107 毫米 (4.2 英寸)，或彈出時為 299 毫米（11.8 英寸）（+/-7 毫米（0.3 英寸）微調）。
