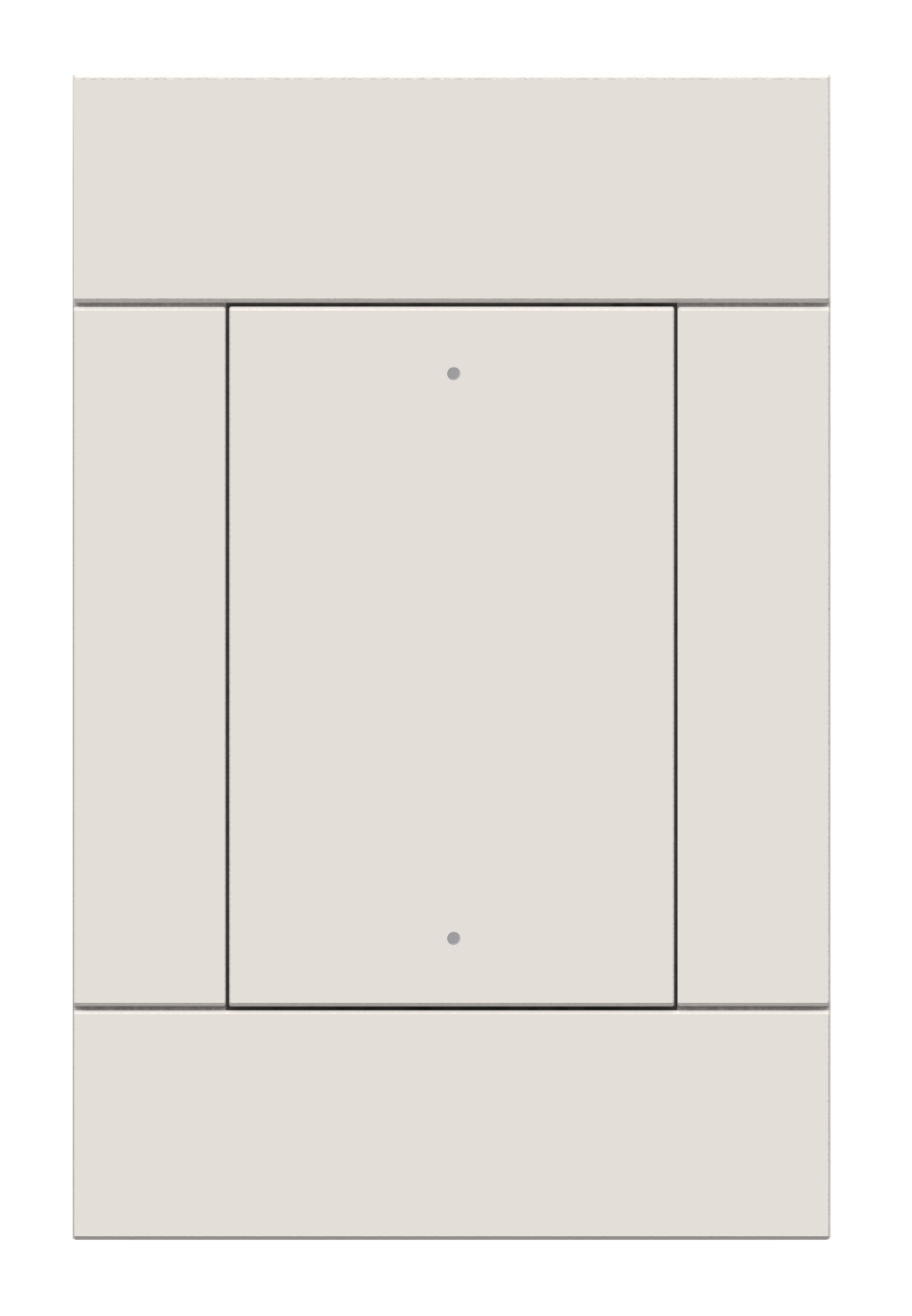

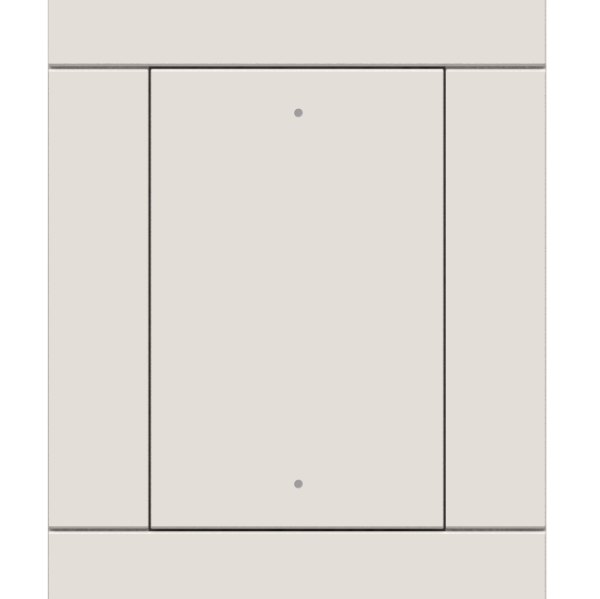

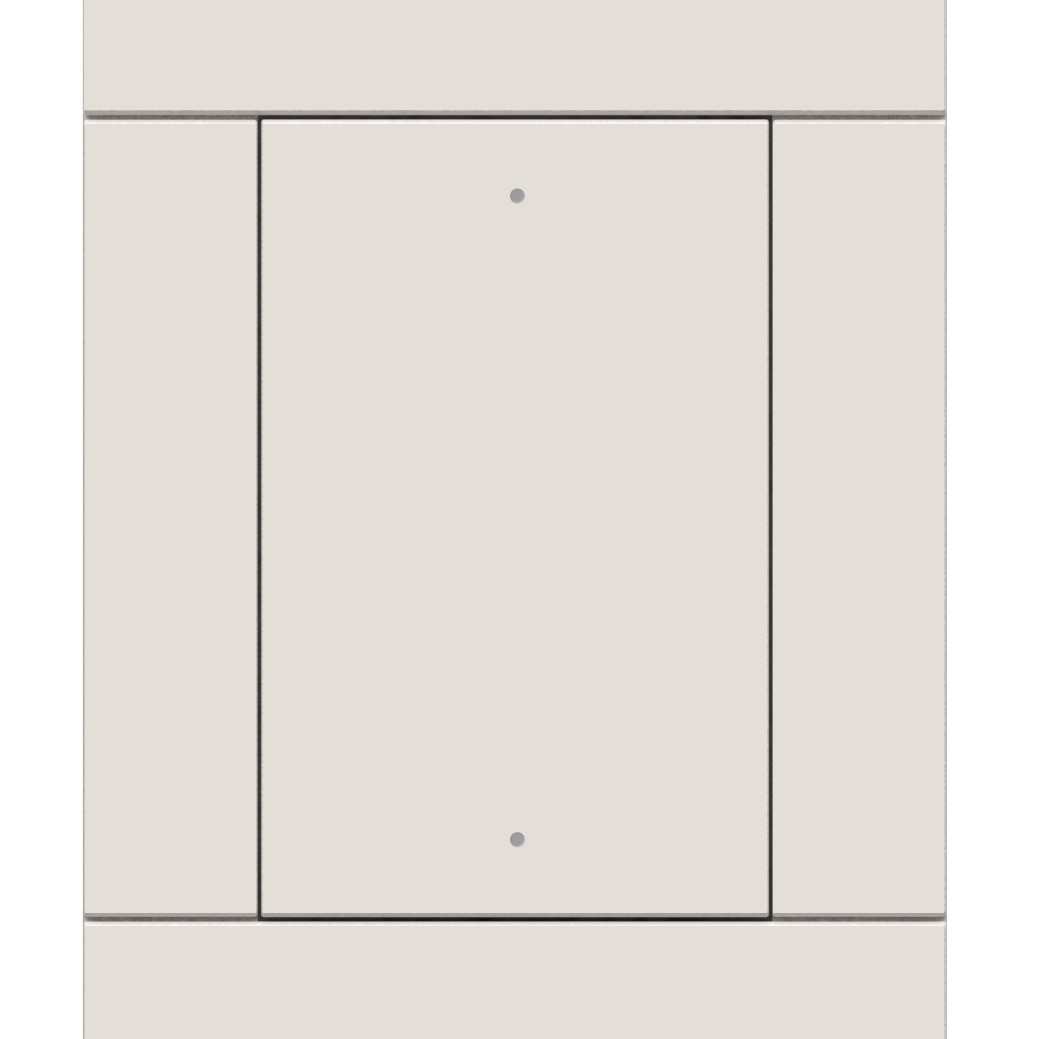

The HZ‑SWEX is a Horizon™ in‑wall switch that controls incandescent, magnetic low voltage, and tungsten‑halogen loads as well as electronic ballasts and 1/2 HP motors. Its design matches the entire line of Horizon dimmers, switches, and keypads, making it a great addition to new or retrofit installations.
NOTE: Faceplates are not included. Refer to the HZ‑FP‑G series faceplates for more information.

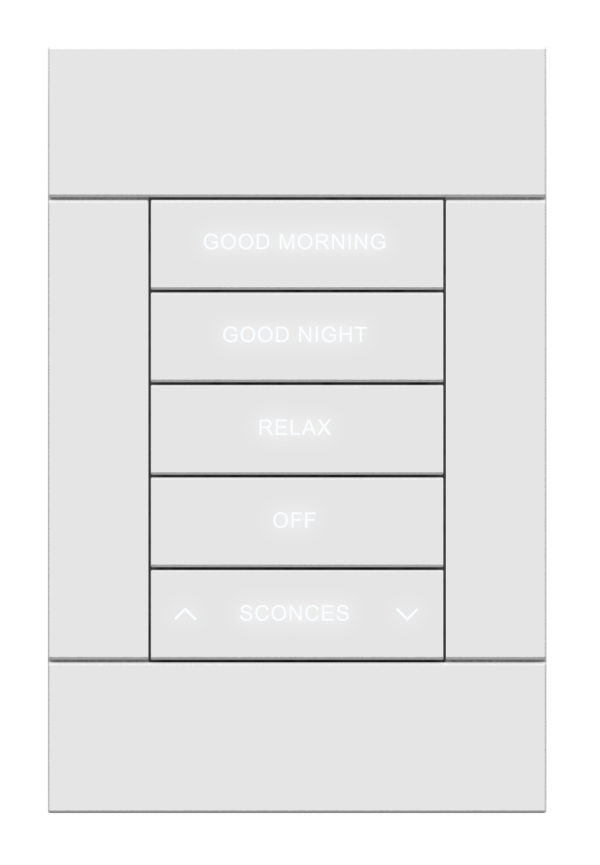

Supporting up to five buttons, the HZ‑SWEX is configurable for a variety of applications. Because the switch is attached to the Crestron® network, it can function as a keypad to trigger remote actions.
The HZ‑SWEX supports load control from multiple locations. Up to four HZ‑KPEX or HZ‑AUX devices1 can be connected to a traveler wire in a traditional three- or four-way circuit to switch the load attached to the HZ‑SWEX. The HZ‑KPEX provides backlit, engravable button caps for multiway control, while the HZ-AUX provides a single large rocker button.

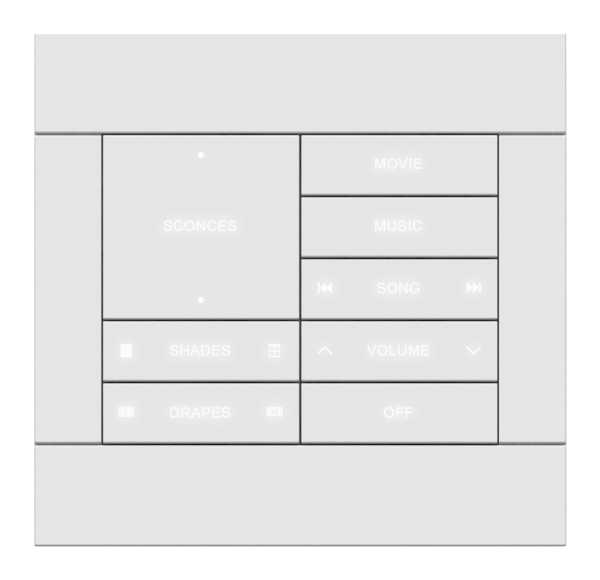

Up to four devices may be installed side‑by‑side in a multigang electrical box with a compatible Horizon faceplate (HZ‑FP‑G series).1 All buttons in a multigang arrangement align to form one continuous control surface.
infiNET EX Communications
infiNET EX wireless technology provides two‑way RF communications throughout a residential or commercial structure without the need for physical control wiring. Each infiNET EX device acts as an expander by sending command signals to other infiNET EX devices in range (approximately 150 ft (46 m) indoors) to ensure reliability and stability.2
The HZ‑SWEX communicates with a control system via a CEN‑GWEXER1 or newer infiNET EX Wireless Gateway. Up to 100 infiNET EX devices may coexist on a wireless network.
Field-Replaceable Button Caps
The preinstalled rocker button cap on the HZ‑SWEX is field replaceable, allowing for engravable multi‑button configurations.
Multicolor Backlit Button Engraving
Horizon button caps are laser engravable to identify each button’s function. RGB LED backlights illuminate the engraved labels and can be adjusted for custom color backlighting. A built‑in ambient light sensor enables auto‑dimming of the backlight brightness according to day and night mode presets.
Each button’s backlight provides feedback by changing color, intensity, or both. The backlight can also flash to show that an action is being performed.
Horizon device faceplates (sold separately) are customizable for any décor. Color‑matched top and bottom trim pieces may be swapped easily after installation with custom trim fabricated from solid materials such as wood, metal, marble, engineered stone, or Corian® solid surface. Contact a Crestron representative, or refer to Crestron True Blue Support Online Help Answer ID: 1000140, to obtain specifications and CADs for the fabrication of custom trim. Paintable trim is also available separately.
Note: The faceplate trim is attached magnetically, which may inhibit use in locations where tampering may occur.
- Supports multiway controllers (HZ‑AUX, HZ‑KPEX)
- Single‑gang U.S. wall box installation

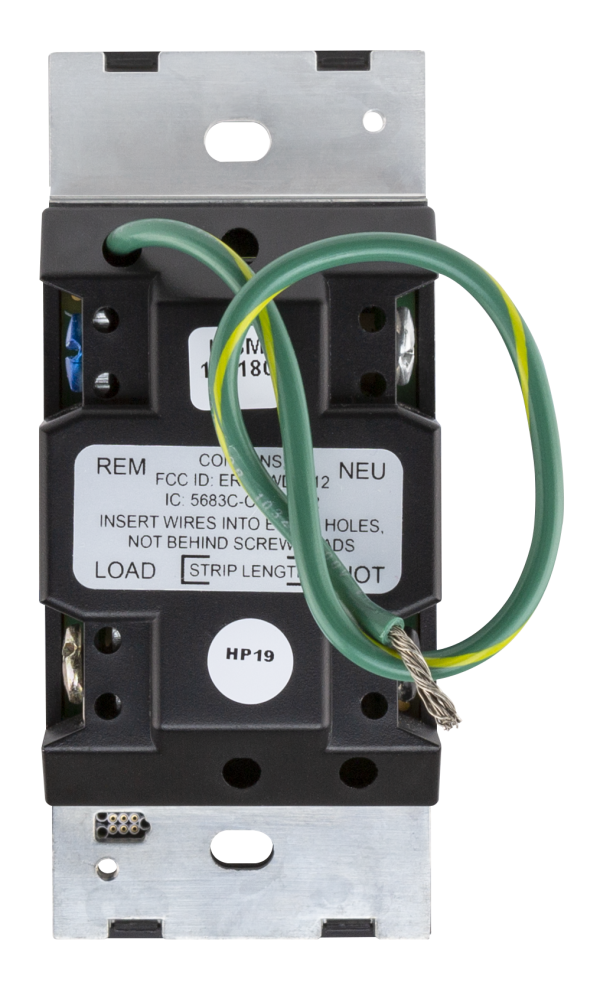

- Requires neutral wire connection
- Gangable up to four across using Crestron® Horizon™ device compatible multi‑gang faceplates (HZ‑FP‑G series, sold separately)
- Robust infiNET EX® wireless communication
- Preinstalled large rocker button
- Configurable with up to five field‑replaceable buttons
- Custom backlit laser‑etched engravable buttons
- Multicolor RGB LED backlighting
- Auto‑dimming day/night backlight modes
- Local button for load control without programming
- Fully programmable via a Crestron control system
- Crestron Home™ OS 3 compatible
- Item(s) sold separately.
- Any infiNET EX device that provides expander functionality will effectively extend the range of the wireless network beyond the initial range of the gateway. Battery‑powered infiNET EX devices do not provide expander functionality. A dedicated infiNET EX Wireless Expander, model CLW‑EXPEX, is also available.
